Transceiver and Cabling Solutions for Cisco 3850 Series Switch
Oct
Transceiver optics and cables are necessary accessories to Cisco 3850 switch series, and they play an important role in the fiber cabling infrastructure, this article will introduce the 3rd party compatible optical transceiver and cabling solutions for Cisco 3850 switch.
Cisco 3850 Series Switch Overview
The Cisco 3850 series switches contain switches for any network configuration, with over 30 models available. With this access switch, prepare for the second generation of 802.11ac technology and other new technologies that are available and will be emerging in the future. The stacked Catalyst 3850 Series multi-gigabit and 10-Gbps network switches enable the convergence of wired and wireless networks, giving you the ability to extend and protect your investment.
Cisco 3850 Series Switch Features
• Integration of wired and wireless networks
The Catalyst 3850 switch provides intelligent, simple and highly secure converged access through an integrated wireless controller. Each switching entity (switch or stack) supports up to 100 wireless access points and 2000 wireless clients.
• PoE, PoE +, and UPOE
Power your solution with support for PoE and PoE + (up to 30W of power per port) or support for UPOE (60W power per port). In this way, you do not need to use additional electrical wiring and circuitry to power the wireless access point and IP phone. Increase the ability to power the solution.
• Effective security protection
Get support for Flexible NetFlow, Cisco TrustSec, and MACsec encryption. Use the network as a safety sensor and actuator.
Cisco 3850 Series Switch Models
| Appearance | Description |
|
Model: Cisco Catalyst 3850 48 Port 10G Fiber Switch IP Base
Part Number: WS-C3850-48XS-S Specification: |
|
|
Model: Cisco Catalyst C3850-12XS-E Switch Layer 3 – 12 SFP/SFP+ – 1G/10G – IP Services- Wireless controller – managed- stackable
Part Number: WS-C3850-12XS-E Specification: |
|

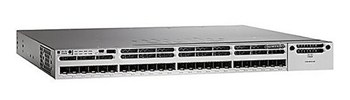

Model: Cisco Catalyst C3850-24XS-E Switch Layer 3 – 24 SFP/SFP+ – 1G/10G – IP Services – Wireless controller – managed- stackable
Part Number: WS-C3850-24XS-E Specification: |
|
Model: Cisco Catalyst 3850 24 Port LAN Base
Part Number: WS-C3850-24T-L Specification: |
|
|
Model: Cisco Catalyst C3850-12XS-S Switch Layer 3 – 12 SFP/SFP+ – 1G/10G – IP Base – Wireless controller – managed- stackable
Part Number: WS-C3850-12XS-S Specification: |
|

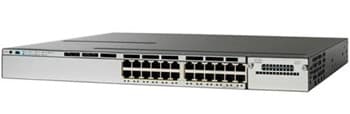

Model: Cisco Catalyst 3850 24 Port IP Base
Part Number: WS-C3850-24T-S Specification: |
Optical Transceiver and Cabling Solutions for Cisco 3850 Series Switch
The following tables list the supported transceiver modules and cables on the Cisco 3850 Series Switch. The supported transceiver includes 1000BASE SFP, 10G SFP+, 10G SFP+ DAC & AOC, which provides a total transceiver and cabling infrastructure solution for IT professionals.
| OEM Part Number | Description |
| Gigabit SFP Module | |
| GLC-T | 1000BASE-T Copper SFP Module, 100m, RJ-45 Connector |
| SFP-GE-T | 1000BASE-T Copper SFP Module,100m, RJ-45 Connector, Extended temperature |
| GLC-SX-MM | 1000BASE-SX SFP Module, MMF, 850nm, 550m |
| GLC-LH-SM | 1000BASE-LX SFP Module, SMF, 1310nm, 10km |
| GLC-ZX-SM | 1000BASE-ZX SFP Module, SMF, 1550nm, 70km |
| GLC-SX-MMD | 1000BASE-SX SFP Module, MMF, 850nm, 550m, with DOM, Extended temperature |
| GLC-LH-SMD | 1000BASE-LX SFP Module, SMF, 1310nm, 10km, with DOM, Extended temperature |
| GLC-EX-SMD | 1000BASE-EX SFP Module, SMF, 1310nm, 40km, with DOM, Extended temperature |
| GLC-ZX-SMD | 1000BASE-ZX SFP Module, SMF, 1550nm, 70km, with DOM, Extended temperature |
| SFP-GE-S | 1000BASE-SX SFP Module, MMF, 850nm, 550m, with DOM, Extended temperature |
| SFP-GE-L | 1000BASE-LX SFP Module, SMF, 1310nm, 10km, with DOM, Extended temperature |
| SFP-GE-Z | 1000BASE-ZX SFP Module, SMF, 1550nm, 70km, with DOM, Extended temperature |
| GLC-BX-D | 1000BASE-BX-D BIDI SFP Module, TX:1490/RX:1310nm, SMF, 10km |
| GLC-BX-U | 1000BASE-BX-U BIDI SFP Module, TX:1310/RX:1490nm, SMF, 10km |
| CWDM SFP | 1000BASE-CWDM SFP Module, 1470nm~1610nm, SMF, 80km |
| DWDM SFP | 1000BASE-DWDM SFP Module, 1470nm~1610nm, SMF, 80km |
| 10G SFP+ Module | |
| SFP-10G-SR | 10GBASE-SR SFP+ Module for MMF S-Class |
| SFP-10G-SR-X | 10GBASE-SR SFP+ Module for MMF |
| SFP-10G-SR-S | multi-rate 10GBASE-SR, 10GBASE-SW and OTU2e SFP+ Module for MMF, extended temperature range |
| SFP-10G-LR | 10GBASE-LRM SFP+ Module for MMF and SMF |
| SFP-10G-LR-X | 10GBASE-LR SFP+ Module for SMF S-Class |
| SFP-10G-LR-S | 10GBASE-LR SFP+ Module for SMF |
| SFP-10G-LRM | multi-rate 10GBASE-LR, 10GBASE-LW and OTU2e SFP+ Module for SMF, extended temperature range |
| SFP-10G-ER | 10GBASE-ER SFP+ Module for SMF S-Class |
| SFP-10G-ER-S | 10GBASE-ER SFP+ Module for SMF |
| SFP-10G-ZR | 10GBASE-ZR SFP+ Module for SMF S-Class |
| SFP-10G-ZR-S | multi-rate 10GBASE-ZR, 10GBASE-ZW and OTU2e SFP+ Module for SMF |
| SFP-10G-BXD-I | 10GBASE-BX10-D Bidirectional for 10km |
| SFP-10G-BXU-I | 10GBASE-BX10-U Bidirectional for 10km |
| SFP-10G-BX40D-I | 10GBASE-BX40-D Bidirectional for 40km |
| SFP-10G-BX40U-I | 10GBASE-BX40-U Bidirectional for 40km |
| 10G SFP+ CWDM/DWDM Module | |
| CWDM-SFP10G-1470 | 10GBAS-CWDM 1470nm SFP+ 40km Transceiver Module |
| CWDM-SFP10G-1490 | 10GBAS-CWDM 1490nm SFP+ 40km Transceiver Module |
| CWDM-SFP10G-1510 | 10GBAS-CWDM 1510nm SFP+ 40km Transceiver Module |
| CWDM-SFP10G-1530 | 10GBAS-CWDM 1530nm SFP+ 40km Transceiver Module |
| CWDM-SFP10G-1550 | 10GBAS-CWDM 1550nm SFP+ 40km Transceiver Module |
| CWDM-SFP10G-1570 | 10GBAS-CWDM 1570nm SFP+ 40km Transceiver Module |
| CWDM-SFP10G-1590 | 10GBAS-CWDM 1590nm SFP+ 40km Transceiver Module |
| CWDM-SFP10G-1610 | 10GBAS-CWDM 1610nm SFP+ 40km Transceiver Module |
| DWDM-SFP10G-ER | 10GBASE-DWDM SFP+ (100-GHz ITU grid) 40km Transceiver Module |
| 10G SFP+ Copper Cables | |
| SFP-H10GB-CU1M | 10GBASE-CU SFP+ Cable 1 Meter, passive |
| SFP-H10GB-CU1-5M | 10GBASE-CU SFP+ Cable 1.5 Meter, passive |
| SFP-H10GB-CU2M | 10GBASE-CU SFP+ Cable 2 Meter, Passive |
| SFP-H10GB-CU2-5M | 10GBASE-CU SFP+ Cable 2.5 Meter, Passive |
| SFP-H10GB-CU3M | 10GBASE-CU SFP+ Cable 3 Meter, passive |
| SFP-H10GB-CU5M | 10GBASE-CU SFP+ Cable 5 Meter, passive |
| SFP-H10GB-ACU7M | 10GBASE-CU SFP+ Cable 7 Meter, active |
| SFP-H10GB-ACU10M | 10GBASE-CU SFP+ Cable 10 Meter, active |
| 10G SFP+ Active Optical Cables | |
| SFP-10G-AOC1M | 10GBASE-AOC SFP+ Optical Cable, 1 Meter |
| SFP-10G-AOC2M | 10GBASE-AOC SFP+ Optical Cable, 2 Meter |
| SFP-10G-AOC3M | 10GBASE-AOC SFP+ Optical Cable, 3 Meter |
| SFP-10G-AOC5M | 10GBASE-AOC SFP+ Optical Cable, 5 Meter |
| SFP-10G-AOC7M | 10GBASE-AOC SFP+ Optical Cable, 7 Meter |
| SFP-10G-AOC10M | 10GBASE-AOC SFP+ Optical Cable, 10 Meter |
| Fiber Optic Patch Cables | |
| LC-LC-OM2-DxM | Multimode 50/125μm OM2 Duplex LC/LC Fiber Cable (1m-50m or Custom Length) |
| LC-LC-OM3-DxM | Multimode 50/125μm 10G OM3 Duplex LC/LC Fiber Cable (1m-50m or Custom Length) |
| LC-LC-OM4-DxM | Multimode 50/125μm 10G/40G OM4 Duplex LC/LC Fiber Cable (1m-50m or Custom Length) |
| LC-LC-OS2-DxM | Singlemode 9/125μm OS2 Duplex LC/LC Fiber Cable (1m-50m or Custom Length) |
| LC-LC-OS2-SxM | Singlemode 9/125μm OS2 Simplex LC/LC Fiber Cable (1m-50m or Custom Length) |
Conclusion
The Cisco Catalyst 3850 series switches are gigabit and 10Gb switches. These switches can provide 480Gbps of tiered throughput and Cisco StackWise-480 technology Overall, the 3850 series can simplify operations, obtain the required reliability, and provide a better mobile experience for your employees and customers. All transceivers, AOCs and DACs listed in the tables are manufactured by industry standards and the MSA (Multi-Source Agreement). More importantly, you could order them with high quality and 100% compatibility at an affordable price from Optcore, and save your money on overpriced optics.
Note: All trademarks, product, company names mentioned are the property of their respective owners and used for comparative purposes only. All the recommended transceivers and cables including SFP, SFP+, QSFP are from 3rd Party, they are NOT OEM products and are NOT certified or endorsed by OEM.
