Connectivity and Cabling Solutions for Cisco Catalyst 3650 Switches
Dec
The Cisco Catalyst 3650 is a cutting-edge convergence product of Cisco switching technologies that creates high-performance devices for consolidating WAN and WiFi networks onto a unified platform. The Catalyst 3650 switch line supports up to 40Gbps of wireless capacity per switch, with optional stacking technology delivering up to 160Gbps of throughput with four stacked units. Transceivers and cables are necessary accessories to Cisco Catalyst 3650 switch series, and they play an important role in the fiber cabling infrastructure, this article focuses on offering compatible optical transceiver connectivity and cabling solutions for Cisco Catalyst 3650 switches.

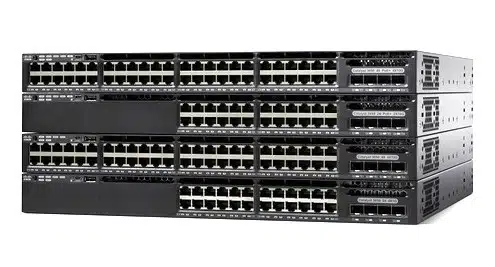

Cisco Catalyst 3650 Series Switch Overview
The Cisco® Catalyst® 3650 Series is the next generation of enterprise access layer switches that support standalone and stacked deployments. It can lay the foundation for a complete convergence of wired and wireless on a single platform. Built on the advanced Cisco StackWise®-160, the Cisco Catalyst 3650 incorporates the new Cisco Unified Access Data Plane (UADP) application specific integrated circuit (ASIC). This switch enables unified wired and wireless policy enforcement, application visibility, flexibility, application optimization, and superior resiliency. The Cisco Catalyst 3650 Series Switches fully support IEEE 802.3at Enhanced Power over Ethernet (PoE +) with modular, redundant fans and power supplies that are field-replaceable. The Cisco Catalyst 3650 Series switches, which are no more than 12 inches deep, are easily deployed in narrow wiring closets where switches are limited in depth in remote branch offices and offices. This range of switches helps you reduce total cost of ownership (TCO) while improving wireless productivity.
Features of Cisco Catalyst 3650 Switches
• The integrated wireless controller features the following features:
– Up to 40G wireless capacity per switch (48 port models)
– Each switching entity (switch or stack) supports up to 50 access points and 1000 wireless clients
• 24 and 48 10/100/1000 data and PoE + modules with ports that support Energy-Efficient Ethernet (EEE)
• 3 fixed uplink modules with 4 Gigabit Ethernet ports, 2 10G Ethernet ports or 4 10G Ethernet ports
• Lower noise 24- and 48-port 10/100/1000 PoE + modules down to 29.51 cm (11.62 inches) for shallow cabinets in enterprise, retail and branch office environments
• Scalability and resiliency with optional Cisco StackWise-160 technology for 160 Gbps stacking throughput
– Dual redundant modular power supply and 3 modular fans provide redundancy
– The 3650 mini SKU supports the external power system RPS2300 to provide redundancy
– Single rack unit (1RU) form factor, fully compliant with IEEE 802.3at (PoE +), providing 30W power for all ports
• Software support for IPv4 and IPv6 routing, multicast routing, modular quality of service (QoS), Flexible NetFlow (FNF) version 9, and enhanced security features
• A single common Cisco IOS® software image across all license levels provides a simple upgrade path for software features
• Enhanced Limited Lifetime Warranty (E-LLW) for the next business day (NBD) replacement of hardware spare parts and 90 days of Cisco Technical Assistance Center (TAC) support
Cisco 3850 Series Switch Models
| Appearance | Description |
| Model: Cisco Catalyst C3650-24TS-L Gigabit Ethernet Switch with 4x1G Uplink ports
Part Number: WS-C3650-24TS-L Specification: Standalone with Optional Stacking 24 x 10/100/1000 Ethernet and 4x1G Uplink ports, with 250W AC power supply, 1 RU, LAN Base feature set |
|
| Model: Cisco Catalyst C3650-24PS-L Gigabit Ethernet PoE+ Switch with 4x1G Uplink ports
Part Number: WS-C3650-24PS-L Specification: Standalone with Optional Stacking 24 x 10/100/1000 Ethernet PoE+ and 4x1G Uplink ports, with 640W AC power supply, 1 RU, LAN Base feature set |
|
| Model: Cisco Catalyst C3650-24PD-L Gigabit Ethernet PoE+ Switch with 2x10G Uplink ports
Part Number: WS-C3650-24PD-L Specification: Standalone with Optional Stacking 24 x 10/100/1000 Ethernet PoE+ and 2x10G Uplink ports, with 640W AC power supply, 1 RU, LAN Base feature set |
|
| Model: Cisco Catalyst C3650-24TD-L Gigabit Ethernet Switch with 2x10G Uplink ports
Part Number: WS-C3650-24TD-L Specification: Standalone with Optional Stacking 24 x 10/100/1000 Ethernet and 2x10G Uplink ports, with 250W AC power supply, 1 RU, LAN Base feature set |
|
| Model: Cisco Catalyst C3650-24TS-S Gigabit Ethernet Switch with 4x1G Uplink ports
Part Number: WS-C3650-24TS-S Specification: Standalone with Optional Stacking 24 x 10/100/1000 Ethernet and 4x1G Uplink ports, with 250W AC power supply, 1 RU, IP Base feature set |
|
| Model: Cisco Catalyst C3650-24PS-S Gigabit Ethernet PoE+ Switch with 4x1G Uplink ports
Part Number: WS-C3650-24PS-S Specification: Standalone with Optional Stacking 24 x 10/100/1000 Ethernet PoE+ and 4x1G Uplink ports, with 640W AC power supply, 1 RU, IP Base feature set |
|
| Model: Cisco Catalyst C3650-24TD-S Gigabit Ethernet Switch with 2x10G Uplink ports
Part Number: WS-C3650-24TD-S Specification: Standalone with Optional Stacking 24 x 10/100/1000 Ethernet and 2x10G Uplink ports, with 250W AC power supply, 1 RU, IP Base feature set |
|
| Model: Cisco Catalyst C3650-24PD-S Gigabit Ethernet PoE+ Switch with 2x10G Uplink ports
Part Number: WS-C3650-24PD-S Specification: Standalone with Optional Stacking 24 x 10/100/1000 Ethernet PoE+ and 2x10G Uplink ports, with 640W AC power supply, 1 RU, IP Base feature set |
|
| Model: Cisco Catalyst C3650-24TS-E Gigabit Ethernet Switch with 4x1G Uplink ports
Part Number: WS-C3650-24TS-E Specification: Standalone with Optional Stacking 24 x 10/100/1000 Ethernet and 4x1G Uplink ports, with 250W AC power supply, 1 RU, IP Services feature set |
|
| Model: Cisco Catalyst C3650-24TD-E Gigabit Ethernet Switch with 2x10G Uplink ports
Part Number: WS-C3650-24TD-E Specification: Standalone with Optional Stacking 24 x 10/100/1000 Ethernet and 2x10G Uplink ports, with 250W AC power supply, 1 RU, IP Services feature set |
|
| Model: Cisco Catalyst C3650-24PS-S Gigabit Ethernet PoE+ Switch with 4x1G Uplink ports
Part Number: WS-C3650-24PS-S Specification: Standalone with Optional Stacking 24 x 10/100/1000 Ethernet PoE+ and 4x1G Uplink ports, with 640W AC power supply, 1 RU, IP Base feature set |
|
| Model: Cisco Catalyst C3650-48TS-L Gigabit Ethernet Switch with 4x1G Uplink ports
Part Number: WS-C3650-48TS-L Specification: Standalone with Optional Stacking 48 x 10/100/1000 Ethernet and 4x1G Uplink ports, with 250W AC power supply, 1 RU, LAN Base feature set |
|
| Model: Cisco Catalyst C3650-24PS-S Gigabit Ethernet PoE+ Switch with 4x1G Uplink ports
Part Number: WS-C3650-24PS-S Specification: Standalone with Optional Stacking 24 x 10/100/1000 Ethernet PoE+ and 4x1G Uplink ports, with 640W AC power supply, 1 RU, IP Base feature set |
|
| Model: Cisco Catalyst C3650-48TD-L Gigabit Ethernet Switch with 2x10G Uplink ports
Part Number: WS-C3650-48TD-L Specification: Standalone with Optional Stacking 48 x 10/100/1000 Ethernet and 2x10G Uplink ports, with 250W AC power supply, 1 RU, LAN Base feature set |
|
| Model: Cisco Catalyst C3650-48TQ-L Gigabit Ethernet Switch with 4x10G Uplink ports
Part Number: WS-C3650-48TQ-L Specification: Standalone with Optional Stacking 48 x 10/100/1000 Ethernet and 4x10G Uplink ports, with 250W AC power supply, 1 RU, LAN Base feature set |
|
| Model: Cisco Catalyst C3650-48TS-S Gigabit Ethernet Switch with 4x1G Uplink ports Part Number: WS-C3650-48TS-SSpecification: Standalone with Optional Stacking 48 x 10/100/1000 Ethernet and 4x1G Uplink ports, with 250W AC power supply, 1 RU, IP Base feature set |
Connectivity and Cabling Solutions Solutions for Cisco Catalyst 3650 Switch
The Cisco Catalyst 3650 switches support a wide range of 1 and 10 Gigabit Ethernet connectivity options owing to their high reliability and flexibility. Those 1G/10G ports can support SFP and SFP+ transceiver modules, as well as SFP+ direct-attach cables (DAC) and active optical cables (AOC). The following tables list the supported transceiver modules and cables on the Cisco Catalyst 3650 switch.
| OEM Part Number | Description |
| Gigabit SFP Transceiver | |
| GLC-T | 1000BASE-T Copper SFP Transceiver, 100m, RJ-45 Connector |
| SFP-GE-T | 1000BASE-T Copper SFP Transceiver,100m, RJ-45 Connector, Extended temperature |
| GLC-SX-MM | 1000BASE-SX SFP Transceiver, MMF, 850nm, 550m |
| GLC-LH-SM | 1000BASE-LX SFP Transceiver, SMF, 1310nm, 10km |
| GLC-ZX-SM | 1000BASE-ZX SFP Transceiver, SMF, 1550nm, 70km |
| GLC-SX-MMD | 1000BASE-SX SFP Transceiver, MMF, 850nm, 550m, with DOM, Extended temperature |
| GLC-LH-SMD | 1000BASE-LX SFP Transceiver, SMF, 1310nm, 10km, with DOM, Extended temperature |
| GLC-EX-SMD | 1000BASE-EX SFP Transceiver, SMF, 1310nm, 40km, with DOM, Extended temperature |
| GLC-ZX-SMD | 1000BASE-ZX SFP Transceiver, SMF, 1550nm, 70km, with DOM, Extended temperature |
| SFP-GE-S | 1000BASE-SX SFP Transceiver, MMF, 850nm, 550m, with DOM, Extended temperature |
| SFP-GE-L | 1000BASE-LX SFP Transceiver, SMF, 1310nm, 10km, with DOM, Extended temperature |
| SFP-GE-Z | 1000BASE-ZX SFP Transceiver, SMF, 1550nm, 70km, with DOM, Extended temperature |
| GLC-BX-D | 1000BASE-BX-D BIDI SFP Transceiver, TX:1490/RX:1310nm, SMF, 10km |
| GLC-BX-U | 1000BASE-BX-U BIDI SFP Transceiver, TX:1310/RX:1490nm, SMF, 10km |
| CWDM SFP | 1000BASE-CWDM SFP Transceiver, 1470nm~1610nm, SMF, 80km |
| DWDM SFP | 1000BASE-DWDM SFP Transceiver, 1470nm~1610nm, SMF, 80km |
| 10G SFP+ Module | |
| SFP-10G-SR | 10GBASE-SR SFP+ Module for MMF S-Class |
| SFP-10G-SR-X | 10GBASE-SR SFP+ Module for MMF |
| SFP-10G-SR-S | multi-rate 10GBASE-SR, 10GBASE-SW and OTU2e SFP+ Module for MMF, extended temperature range |
| SFP-10G-LR | 10GBASE-LRM SFP+ Module for MMF and SMF |
| SFP-10G-LR-X | 10GBASE-LR SFP+ Module for SMF S-Class |
| SFP-10G-LR-S | 10GBASE-LR SFP+ Module for SMF |
| SFP-10G-LRM | multi-rate 10GBASE-LR, 10GBASE-LW and OTU2e SFP+ Module for SMF, extended temperature range |
| SFP-10G-ER | 10GBASE-ER SFP+ Module for SMF S-Class |
| SFP-10G-ER-S | 10GBASE-ER SFP+ Module for SMF |
| SFP-10G-ZR | 10GBASE-ZR SFP+ Module for SMF S-Class |
| SFP-10G-ZR-S | multi-rate 10GBASE-ZR, 10GBASE-ZW and OTU2e SFP+ Module for SMF |
| SFP-10G-BXD-I | 10GBASE-BX10-D Bidirectional for 10km |
| SFP-10G-BXU-I | 10GBASE-BX10-U Bidirectional for 10km |
| SFP-10G-BX40D-I | 10GBASE-BX40-D Bidirectional for 40km |
| SFP-10G-BX40U-I | 10GBASE-BX40-U Bidirectional for 40km |
| 10G SFP+ CWDM/DWDM Module | |
| CWDM-SFP10G-1470 | 10GBAS-CWDM 1470nm SFP+ 40km Transceiver Module |
| CWDM-SFP10G-1490 | 10GBAS-CWDM 1490nm SFP+ 40km Transceiver Module |
| CWDM-SFP10G-1510 | 10GBAS-CWDM 1510nm SFP+ 40km Transceiver Module |
| CWDM-SFP10G-1530 | 10GBAS-CWDM 1530nm SFP+ 40km Transceiver Module |
| CWDM-SFP10G-1550 | 10GBAS-CWDM 1550nm SFP+ 40km Transceiver Module |
| CWDM-SFP10G-1570 | 10GBAS-CWDM 1570nm SFP+ 40km Transceiver Module |
| CWDM-SFP10G-1590 | 10GBAS-CWDM 1590nm SFP+ 40km Transceiver Module |
| CWDM-SFP10G-1610 | 10GBAS-CWDM 1610nm SFP+ 40km Transceiver Module |
| DWDM-SFP10G-ER | 10GBASE-DWDM SFP+ (100-GHz ITU grid) 40km Transceiver Module |
| 10G SFP+ Copper Cables | |
| SFP-H10GB-CU1M | 10GBASE-CU SFP+ Copper Twinax Cable, 1 Meter, passive |
| SFP-H10GB-CU1-5M | 10GBASE-CU SFP+ Copper Twinax Cable, 1.5 Meter, passive |
| SFP-H10GB-CU2M | 10GBASE-CU SFP+ Copper Twinax Cable, 2 Meter, Passive |
| SFP-H10GB-CU2-5M | 10GBASE-CU SFP+ Copper Twinax Cable, 2.5 Meter, Passive |
| SFP-H10GB-CU3M | 10GBASE-CU SFP+ Copper Twinax Cable, 3 Meter, passive |
| SFP-H10GB-CU5M | 10GBASE-CU SFP+ Copper Twinax Cable, 5 Meter, passive |
| SFP-H10GB-ACU7M | 10GBASE-CU SFP+ Copper Twinax Cable, 7 Meter, active |
| SFP-H10GB-ACU10M | 10GBASE-CU SFP+ Copper Twinax Cable, 10 Meter, active |
| 10G SFP+ Active Optical Cables | |
| SFP-10G-AOC1M | 10G SFP+ AOC (Active Optical Cable), 1 Meter |
| SFP-10G-AOC2M | 10G SFP+ AOC (Active Optical Cable), 2 Meter |
| SFP-10G-AOC3M | 10G SFP+ AOC (Active Optical Cable), 3 Meter |
| SFP-10G-AOC5M | 10G SFP+ AOC (Active Optical Cable), 5 Meter |
| SFP-10G-AOC7M | 10G SFP+ AOC (Active Optical Cable), 7 Meter |
| SFP-10G-AOC10M | 10G SFP+ AOC (Active Optical Cable), 10 Meter |
| Fiber Optic Patch Cables | |
| LC-LC-OM2-DxM | Multimode 50/125μm OM2 Duplex LC/LC Fiber Patch Cord (1m-50m or Custom Length) |
| LC-LC-OM3-DxM | Multimode 50/125μm 10G OM3 Duplex LC/LC Fiber Patch Cord (1m-50m or Custom Length) |
| LC-LC-OM4-DxM | Multimode 50/125μm 10G/40G OM4 Duplex LC/LC Fiber Patch Cord (1m-50m or Custom Length) |
| LC-LC-OS2-DxM | Singlemode 9/125μm OS2 Duplex LC/LC Fiber Patch Cord (1m-50m or Custom Length) |
| LC-LC-OS2-SxM | Singlemode 9/125μm OS2 Simplex LC/LC Fiber Patch Cord (1m-50m or Custom Length) |
Conclusion
Cisco Catalyst 3650 Series Switches support full IEEE 802.3at Ethernet plus (PoE +), redundant fans, and new front-end power supplies. The Cisco Catalyst 3650 switch increases productivity by enabling applications such as IP telephony, wireless, and video to achieve a truly borderless network experience. All transceivers, AOCs and DACs listed in the tables are manufactured by industry standards and the MSA (Multi-Source Agreement). More importantly, you could order them with high quality and 100% compatibility at an affordable price from Optcore, and save your money on overpriced optics.
Note: All trademarks, product, company names mentioned are the property of their respective owners and used for comparative purposes only. All the recommended transceivers and cables including SFP, SFP+, QSFP are from 3rd Party, they are NOT OEM products and are NOT certified or endorsed by OEM.
