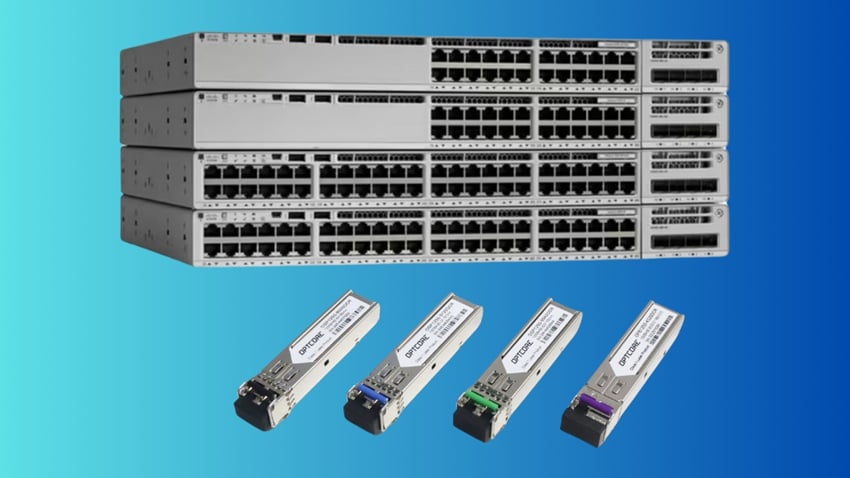

OPTCORE Compatible SFP Module and Patch Cable for Cisco Catalyst 9200 Series Switch
Jan
At the end of 2018, Cisco launched the 9200 series access switch for mid- and large-size enterprise networks. This switch is the backbone of the network infrastructure and plays the most crucial role. Additionally, the SFP modules and optical patch cables are essential for the network’s connectivity. This post will introduce the compatible SFP and patch cables for Cisco 9200 switches.
Cisco Catalyst 9200 Switch Overview
Officially released in November 2018, the Cisco Catalyst 9200 Series switches are designed to provide efficient access solutions for small, medium, and large enterprise-class networks. As part of the Catalyst 9000 product line, they focus on an intent-based network architecture that can support organizations in simplifying IT operations and reducing operational costs during digital transformation.
The Cisco 9200 series switches offer various features to help organizations build flexible, reliable, and secure modern networks that adapt to different network environments. Now, let’s briefly review the key features.
Power over Ethernet (PoE+)
Some switches in the 9200 series can support IEEE 802.3at PoE+, providing up to 30W of power per port. In high-end models, up to 48 PoE+ ports can be equipped and provide up to 1,440 W of total PoE power. PoE+ allows end devices, such as IP phones, wireless access points, and other standards-compliant end devices, to be powered over Ethernet cables, eliminating the need to wire each device individually and install plug-in power supplies, which reduces the total cost of deploying a system.
In addition, the switches support both Permanent PoE and Fast PoE. Permanent PoE ensures critical devices can still be powered during a switch reboot, avoiding service interruptions due to power outages. The Fast PoE feature allows for faster device startup by quickly powering up endpoints once power is restored to the switch without waiting for the operating system to load.
Layer 2 and Layer 3 Features
The Cisco Catalyst 9200 Series switches support comprehensive Layer 2 and Layer 3 features, which meet modern enterprise networks’ diverse and rich requirements. The rich feature set provides efficient, flexible, and secure network solutions for various application scenarios, adapting to modern enterprises’ network performance and security requirements.
Layer 2 Features
- Efficient Data Forwarding
- VLAN
- Spanning Tree Protocol (STP)
- Access Control List (ACL)
Layer 3 Features
- Routing Protocol Support
- Full Flexible NetFlow:
- Programmability and Automation
- Enhanced Security
Cisco 9200 Series Switch Models
This series switch has many different models for various network sizes and applications; below is a list for your reference.
| C9200-24T-A | Catalyst 9200 24-port Data Switch, Network Advantage |
| C9200-24T-E | Catalyst 9200 24-port Data Switch, Network Essentials |
| C9200-24P-A | Catalyst 9200 24-port PoE+ Switch, Network Advantage |
| C9200-24P-E | Catalyst 9200 24-port PoE+ Switch. Network Essentials |
| C9200-24PB-A | Catalyst 9200 24-port PoE+, enhanced VRF, Network Advantage |
| C9200-24PXG-E | Catalyst 9200 24-port 8xmGig, 16x1G, PoE+, Network Essentials |
| C9200-24PXG-A | Catalyst 9200 24-port 8xmGig, 16x1G, PoE+, Network Advantage |
| C9200-48T-A | Catalyst 9200 48-port Data Switch, Network Advantage |
| C9200-48T-E | Catalyst 9200 48-port Data Switch, Network Essentials |
| C9200-48P-A | Catalyst 9200 48-port PoE+ Switch, Network Advantage |
| C9200-48P-E | Catalyst 9200 48-port PoE+ Switch, Network Essentials |
| C9200-48PL-A | Catalyst 9200 48-Port partial PoE+ Switch, Network Advantage |
| C9200-48PL-E | Catalyst 9200 48-Port partial PoE+ Switch, Network Essentials |
| C9200-48PB-A | Catalyst 9200 48-port PoE+, enhanced VRF, Network Advantage |
| C9200-48PXG-E | Catalyst 9200 48-port 8xmGig, 40x1G, PoE+, Network Essentials |
| C9200-48PXG-A | Catalyst 9200 48-port 8xmGig, 40x1G, PoE+, Network Advantage |
Compatible SFP Module and Patch Cables for Cisco 9200 Switch
The Cisco 9200 switch supports a wide range of optical transceivers and patch cables by equipping it with optional switch modules C9200-NM-4G or C9200-NM-4X. The supported modules include 1G SFP, 10G SFP+, and DAC/AOC. As a one-stop store for fiber optic solutions, we supply compatible transceivers and cables with guaranteed quality and competitive pricing. Below is a list of compatible models for quick reference.
| OEM Part Number | Description |
| Gigabit SFP Module | |
| GLC-T | 1000BASE-T Copper SFP Module, 100m, RJ-45 Connector |
| SFP-GE-T | 1000BASE-T Copper SFP Module,100m, RJ-45 Connector, Extended temperature |
| GLC-SX-MM | 1000BASE-SX SFP Module, MMF, 850nm, 550m |
| GLC-LH-SM | 1000BASE-LX SFP Module, SMF, 1310nm, 10km |
| GLC-ZX-SM | 1000BASE-ZX SFP Module, SMF, 1550nm, 70km |
| GLC-SX-MMD | 1000BASE-SX SFP Module, MMF, 850nm, 550m, with DOM, Extended temperature |
| GLC-LH-SMD | 1000BASE-LX SFP Module, SMF, 1310nm, 10km, with DOM, Extended temperature |
| GLC-EX-SMD | 1000BASE-EX SFP Module, SMF, 1310nm, 40km, with DOM, Extended temperature |
| GLC-ZX-SMD | 1000BASE-ZX SFP Module, SMF, 1550nm, 70km, with DOM, Extended temperature |
| SFP-GE-S | 1000BASE-SX SFP Module, MMF, 850nm, 550m, with DOM, Extended temperature |
| SFP-GE-L | 1000BASE-LX SFP Module, SMF, 1310nm, 10km, with DOM, Extended temperature |
| SFP-GE-Z | 1000BASE-ZX SFP Module, SMF, 1550nm, 70km, with DOM, Extended temperature |
| GLC-BX-D | 1000BASE-BX-D BIDI SFP Module, TX:1490/RX:1310nm, SMF, 10km |
| GLC-BX-U | 1000BASE-BX-U BIDI SFP Module, TX:1310/RX:1490nm, SMF, 10km |
| CWDM SFP | 1000BASE-CWDM SFP Module, 1470nm~1610nm, SMF, 80km |
| DWDM SFP | 1000BASE-DWDM SFP Module, 1470nm~1610nm, SMF, 80km |
| 10G SFP+ Module | |
| SFP-10G-SR | 10GBASE-SR SFP+ Module for MMF S-Class |
| SFP-10G-SR-X | 10GBASE-SR SFP+ Module for MMF |
| SFP-10G-SR-S | multi-rate 10GBASE-SR, 10GBASE-SW and OTU2e SFP+ Module for MMF, extended temperature range |
| SFP-10G-LR | 10GBASE-LRM SFP+ Module for MMF and SMF |
| SFP-10G-LR-X | 10GBASE-LR SFP+ Module for SMF S-Class |
| SFP-10G-LR-S | 10GBASE-LR SFP+ Module for SMF |
| SFP-10G-LRM | multi-rate 10GBASE-LR, 10GBASE-LW and OTU2e SFP+ Module for SMF, extended temperature range |
| SFP-10G-ER | 10GBASE-ER SFP+ Module for SMF S-Class |
| SFP-10G-ER-S | 10GBASE-ER SFP+ Module for SMF |
| SFP-10G-ZR | 10GBASE-ZR SFP+ Module for SMF S-Class |
| SFP-10G-ZR-S | multi-rate 10GBASE-ZR, 10GBASE-ZW and OTU2e SFP+ Module for SMF |
| SFP-10G-BXD-I | 10GBASE-BX10-D Bidirectional for 10km |
| SFP-10G-BXU-I | 10GBASE-BX10-U Bidirectional for 10km |
| SFP-10G-BX40D-I | 10GBASE-BX40-D Bidirectional for 40km |
| SFP-10G-BX40U-I | 10GBASE-BX40-U Bidirectional for 40km |
| 10G SFP+ CWDM/DWDM Module | |
| CWDM-SFP10G-1470 | 10GBASE-CWDM 1470nm SFP+ 40km Transceiver Module |
| CWDM-SFP10G-1490 | 10GBASE-CWDM 1490nm SFP+ 40km Transceiver Module |
| CWDM-SFP10G-1510 | 10GBASE-CWDM 1510nm SFP+ 40km Transceiver Module |
| CWDM-SFP10G-1530 | 10GBASE-CWDM 1530nm SFP+ 40km Transceiver Module |
| CWDM-SFP10G-1550 | 10GBASE-CWDM 1550nm SFP+ 40km Transceiver Module |
| CWDM-SFP10G-1570 | 10GBASE-CWDM 1570nm SFP+ 40km Transceiver Module |
| CWDM-SFP10G-1590 | 10GBASE-CWDM 1590nm SFP+ 40km Transceiver Module |
| CWDM-SFP10G-1610 | 10GBASE-CWDM 1610nm SFP+ 40km Transceiver Module |
| DWDM-SFP10G-ER | 10GBASE-DWDM SFP+ (100-GHz ITU grid) 40km Transceiver Module |
| 10G SFP+ DAC Cables | |
| SFP-H10GB-CU1M | 10GBASE-CU SFP+ Cable 1 Meter, passive |
| SFP-H10GB-CU1-5M | 10GBASE-CU SFP+ Cable 1.5 Meter, passive |
| SFP-H10GB-CU2M | 10GBASE-CU SFP+ Cable 2 Meter, Passive |
| SFP-H10GB-CU2-5M | 10GBASE-CU SFP+ Cable 2.5 Meter, Passive |
| SFP-H10GB-CU3M | 10GBASE-CU SFP+ Cable 3 Meter, passive |
| SFP-H10GB-CU5M | 10GBASE-CU SFP+ Cable 5 Meter, passive |
| SFP-H10GB-ACU7M | 10GBASE-CU SFP+ Cable 7 Meter, active |
| SFP-H10GB-ACU10M | 10GBASE-CU SFP+ Cable 10 Meter, active |
| 10G SFP+ AOC Cables | |
| SFP-10G-AOC1M | 10GBASE-AOC SFP+ Optical Cable, 1 Meter |
| SFP-10G-AOC2M | 10GBASE-AOC SFP+ Optical Cable, 2 Meter |
| SFP-10G-AOC3M | 10GBASE-AOC SFP+ Optical Cable, 3 Meter |
| SFP-10G-AOC5M | 10GBASE-AOC SFP+ Optical Cable, 5 Meter |
| SFP-10G-AOC7M | 10GBASE-AOC SFP+ Optical Cable, 7 Meter |
| SFP-10G-AOC10M | 10GBASE-AOC SFP+ Optical Cable, 10 Meter |
| Fiber Patch Cables | |
| LC-LC-OM2-DxM | Multimode 50/125μm OM2 Duplex LC/LC Fiber Cable (1m-50m or Custom Length) |
| LC-LC-OM3-DxM | Multimode 50/125μm 10G OM3 Duplex LC/LC Fiber Cable (1m-50m or Custom Length) |
| LC-LC-OM4-DxM | Multimode 50/125μm 10G/40G OM4 Duplex LC/LC Fiber Cable (1m-50m or Custom Length) |
| LC-LC-SM-DxM | Singlemode 9/125μm OS2 Duplex LC/LC Fiber Cable (1m-50m or Custom Length) |
| LC-LC-SM-SxM | Singlemode 9/125μm OS2 Simplex LC/LC Fiber Cable (1m-50m or Custom Length) |
Conclusion
As the core of Cisco’s enterprise-class switches, the Catalyst 9200 Series switches suit many application scenarios. This includes campus and medium-to-large enterprise networks requiring high throughput and high-density user environments. It can also be used in various Internet of Things (IoT) application scenarios because of its powerful PoE+ features, providing power support for IoT devices such as bright lighting and surveillance and simplifying network deployment. Look at our extensive product portfolio if you are looking for lower-cost compatible SFP solutions during your network facilities’ construction and renewal phase.
Note: All trademarks, products, and company names mentioned are the property of their respective owners and are used for comparative purposes only. All the recommended transceivers and cables are from 3rd Party. They are NOT OEM products and are NOT certified or endorsed by OEM.
