Single Mode OS2 MPO-24 to MPO-24 Trunk Cable, 24 Fiber, Female, Type A, LSZH
Price range: US$ 66.00 through US$ 232.00 (Excl. VAT)
Each 24-Fiber Single Mode MPO trunk cable has passed the test of Insertion Loss, Return Loss, Polarity Test, and End-face Inspection, ensuring it complies with and exceeds industry standards.
Product Model:
MPO-12, OS2 MPO-12, OM3 MPO-12, OM4 MPO-12, OM5 MPO-16, OM3 MPO-16, OM4 MPO-24, OM3 MPO-24, OM4 MPO-24, OM5

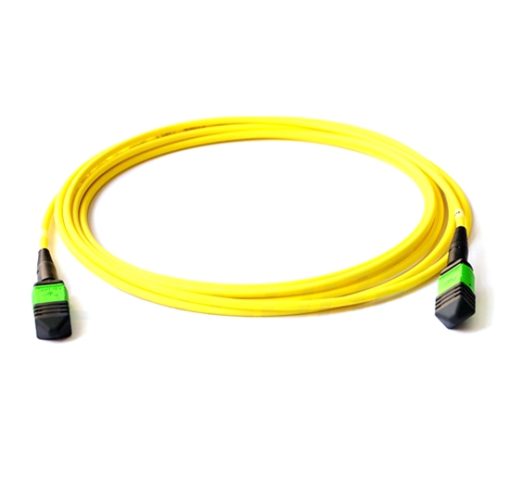

Single Mode MPO-24 Female to MPO-24 Female Trunk Cable (24 Fiber, 9/125 OS2, Type A, LSZH, Yellow)
This MPO-24 trunk cable is a factory pre-terminated 24-fiber single mode MPO patch cord for limited space cabling. It features premium single mode MPO-24 female connectors and an optical cable for optimal performance. The MPO-24 connector is roughly the same size as an SC connector but can provide up to 24 times the density, thereby providing significant space and cost savings. Additionally, it offers consistent user quality, much faster installation, and simpler cable management.
Features
• Factory-terminated provides consistent quality, high performance, and reduced installation time
• 100% tested for low insertion loss and high return loss
• High-quality MPO-24 connectors guaranteed by the 3D interferometer
• Type A polarity for MPO cassette and patch panel connection
• Provides 0.7dB Standard & 0.35dB Elite low loss for customers’ choose
• Comply with IEC 61754-7, TIA/EIA 604-5, Telcordia GR-1435-CORE, and RoHS
Superior MPO Connector
High-quality MPO connectors deliver low insertion loss, precise alignment, and 100 times mating durability to ensure high-density fiber network stability.
LSZH Rated Outer Jacket
The LSZH (Low Smoke Zero Halogen) jacket emits very little smoke and achieves minimal damage. Great substitutes for PVC (OFNR) MPO cables.
0.35dB/0.7dB Max. IL
When performance and reliability are vital, use our quality MPO/MTP® cable to build your network. Low insertion loss and high return loss provide a stable signal for your network at all times.
Specification
| Fiber Type | 9/125µm Single Mode OS2 | Fiber Count | 24-Fiber |
| Connector Type | MPO-24 Female to MPO-24 Female (Pinless) | Polish Type | APC to APC |
| Cable Length | 1m, 2m, 3m, 5m, 7m, 10m … 100m or Customize | Cable Diameter | 3.0mm |
| Insertion Loss | Standard: ≤0.7dB (0.45dB Typ.) Elite: ≤0.35dB(0.20dB Typ.) |
Return Loss | ≥60dB |
| Polarity | Type A (Straight) | Attenuation | 1310nm:≤0.34dB/km, 1550nm:≤0.20dB/km |
| Jacket Material | LSZH | Jacket Color | Yellow |
| Durability | ≥100 times | Tensile Load | Long term: 80N, Short term: 160N |
| Environment | Operating: -20°C to 70°C Storage: -40°C to 85°C |
Application | Optical switching interframe connections High-density fiber card edge access 10G/40G/100G interconnect Data Center Cabling |
| What’s In The Box | 1x MPO-24 trunk cable | Country Of Origin | China |
Ordering Information
| Optcore Part Number | Description |
| MT-MPO24/F-MPO24/F-24SM-1M-A-LS | 1M MPO-24 to MPO-24 Female Trunk Cable, Single Mode OS2, 24 Fiber, APC, Polarity A, LSZH |
| MT-MPO24/F-MPO24/F-24SM-2M-A-LS | 2M MPO-24 to MPO-24 Female Trunk Cable, Single Mode OS2, 24 Fiber, APC, Polarity A, LSZH |
| MT-MPO24/F-MPO24/F-24SM-3M-A-LS | 3M MPO-24 to MPO-24 Female Trunk Cable, Single Mode OS2, 24 Fiber, APC, Polarity A, LSZH |
| MT-MPO24/F-MPO24/F-24SM-5M-A-LS | 5M MPO-24 to MPO-24 Female Trunk Cable, Single Mode OS2, 24 Fiber, APC, Polarity A, LSZH |
| MT-MPO24/F-MPO24/F-24SM-7M-A-LS | 7M MPO-24 to MPO-24 Female Trunk Cable, Single Mode OS2, 24 Fiber, APC, Polarity A, LSZH |
| MT-MPO24/F-MPO24/F-24SM-10M-A-LS | 10M MPO-24 to MPO-24 Female Trunk Cable, Single Mode OS2, 24 Fiber, APC, Polarity A, LSZH |
| MT-MPO24/F-MPO24/F-24SM-15M-A-LS | 15M MPO-24 to MPO-24 Female Trunk Cable, Single Mode OS2, 24 Fiber, APC, Polarity A, LSZH |
| MT-MPO24/F-MPO24/F-24SM-20M-A-LS | 20M MPO-24 to MPO-24 Female Trunk Cable, Single Mode OS2, 24 Fiber, APC, Polarity A, LSZH |
| MT-MPO24/F-MPO24/F-24SM-25M-A-LS | 25M MPO-24 to MPO-24 Female Trunk Cable, Single Mode OS2, 24 Fiber, APC, Polarity A, LSZH |
| MT-MPO24/F-MPO24/F-24SM-30M-A-LS | 30M MPO-24 to MPO-24 Female Trunk Cable, Single Mode OS2, 24 Fiber, APC, Polarity A, LSZH |
| MT-MPO24/F-MPO24/F-24SM-xM-A-LS | Custom Length xM MPO-24 to MPO-24 Female Trunk Cable, Single Mode OS2, 24 Fiber, APC, Polarity A, LSZH |
Download
| Weight | N/A |
|---|
