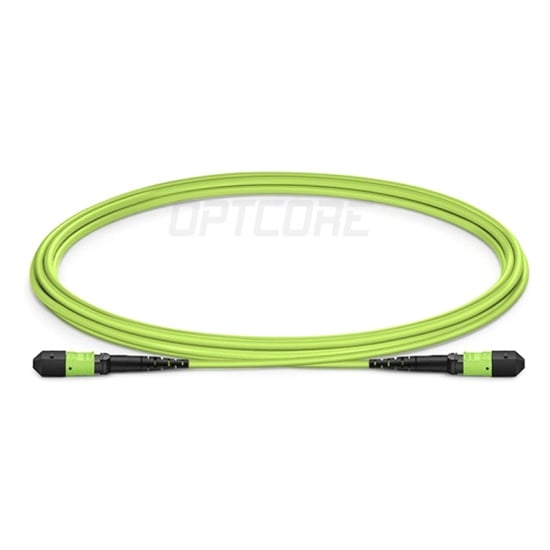

OM5 MPO to MPO Female Trunk Cable, 12 Fiber, Type B, LSZH, Lime Green
Price range: US$ 49.00 through US$ 648.00 (Excl. VAT)
Each OM5 MPO trunk cable has passed the test of Insertion Loss, Return Loss, Polarity Test, and End-face Inspection, ensuring it complies with and exceeds industry standards.
Product Model:
MPO-12, OS2 MPO-12, OM3 MPO-12, OM4 MPO-12, OM5 MPO-16, OS2 MPO-16, OM3 MPO-16, OM4 MPO-24, OS2 MPO-24, OM3 MPO-24, OM4 MPO-24, OM5
Multimode OM5 MPO to MPO Trunk Cable (12 Fiber, 50/125 OM5, Female to Female, Type B, LSZH, Lime Green)
This MPO trunk cable is a factory pre-terminated 12-fiber multimode OM5 MPO patch cord for limited space cabling. It features high-performance MPO-12 female connectors and an OM5 optical cable for optimal functionality and reliability. The MPO-12 connector is roughly the same size as an SC connector but can provide up to 12 times the density, thereby providing significant space and cost savings. Additionally, it offers consistent user quality, much faster installation, and simpler cable management.
The OM5 fiber is the first certified WBMMF (Wide Band Multimode Fiber) specifically for high-speed data center applications. It fully complies with all OM3 and OM4 standards but with the additional Differential Mode Delay (DMD) requirement to correct modal and chromatic dispersion.
Features
• Factory-terminated provides consistent quality, high performance, and reduced installation time
• 100% tested for low insertion loss and high return loss
• High-quality MPO connectors guaranteed by the 3D interferometer
• Type B polarity for 40G/100G PSM4, 400G DR4 connection
• Provides 0.6dB Standard & 0.35dB Elite low loss for customers’ choose
• Comply with IEC 61754-7, TIA/EIA 604-5, Telcordia GR-1435-CORE, and RoHS
Superior MPO Connector
High-quality MPO connectors deliver low insertion loss, precise alignment, and 100 times mating durability to ensure high-density fiber network stability.
LSZH Rated Outer Jacket
The LSZH (Low Smoke Zero Halogen) jacket emits very little smoke and achieves minimal damage. Great substitutes for PVC (OFNR) MPO cables.
0.35dB/0.6dB Max. IL
When performance and reliability are vital, use our quality MPO/MTP® cable to build your network. Low insertion loss and high return loss provide a stable signal for your network at all times.
Specification
| Fiber Type | 50/125µm Multimode OM5 | Fiber Count | 12-Fiber |
| Connector Type | MPO Female to MPO Female (Pinless) | Polish Type | UPC to APC |
| Cable Length | 1m, 2m, 3m, 5m, 7m, 10m … 100m or Customize | Cable Diameter | 3.0mm |
| Insertion Loss | Standard: ≤0.6dB (0.4dB Typ.) Elite: ≤0.35dB (0.15dB Typ.) |
Return Loss | ≥20dB |
| Polarity | Type B (Crossover) | Attenuation | 850nm:≤0.6dB/km, 1310nm:≤2.4dB/km |
| Jacket Material | LSZH | Jacket Color | Lime Green |
| Durability | ≥100 times | Tensile Load | Long term: 80N, Short term: 160N |
| Environment | Operating: -20°C to 70°C Storage: -40°C to 85°C |
Application | 40G/100G SWDM4 interconnect Data Center Cabling |
| What’s In The Box | 1x OM5 MPO trunk cable | Country Of Origin | China |
Ordering Information
| Optcore Part Number | Description |
| MT-MPO/F-MPO/F-12OM5-1M-B-LS | 1M MPO to MPO Female Trunk Cable, Multimode OM5, 12 Fiber, UPC, Polarity B, LSZH |
| MT-MPO/F-MPO/F-12OM5-2M-B-LS | 2M MPO to MPO Female Trunk Cable, Multimode OM5, 12 Fiber, UPC, Polarity B, LSZH |
| MT-MPO/F-MPO/F-12OM5-3M-B-LS | 3M MPO to MPO Female Trunk Cable, Multimode OM5, 12 Fiber, UPC, Polarity B, LSZH |
| MT-MPO/F-MPO/F-12OM5-5M-B-LS | 5M MPO to MPO Female Trunk Cable, Multimode OM5, 12 Fiber, UPC, Polarity B, LSZH |
| MT-MPO/F-MPO/F-12OM5-7M-B-LS | 7M MPO to MPO Female Trunk Cable, Multimode OM5, 12 Fiber, UPC, Polarity B, LSZH |
| MT-MPO/F-MPO/F-12OM5-10M-B-LS | 10M MPO to MPO Female Trunk Cable, Multimode OM5, 12 Fiber, UPC, Polarity B, LSZH |
| MT-MPO/F-MPO/F-12OM5-15M-B-LS | 15M MPO to MPO Female Trunk Cable, Multimode OM5, 12 Fiber, UPC, Polarity B, LSZH |
| MT-MPO/F-MPO/F-12OM5-20M-B-LS | 20M MPO to MPO Female Trunk Cable, Multimode OM5, 12 Fiber, UPC, Polarity B, LSZH |
| MT-MPO/F-MPO/F-12OM5-25M-B-LS | 25M MPO to MPO Female Trunk Cable, Multimode OM5, 12 Fiber, UPC, Polarity B, LSZH |
| MT-MPO/F-MPO/F-12OM5-30M-B-LS | 30M MPO to MPO Female Trunk Cable, Multimode OM5, 12 Fiber, UPC, Polarity B, LSZH |
| MT-MPO/F-MPO/F-12OM5-xM-B-LS | Custom Length xM MPO to MPO Female Trunk Cable, Multimode OM5, 12 Fiber, UPC, Polarity B, LSZH |
Download
| Weight | N/A |
|---|
