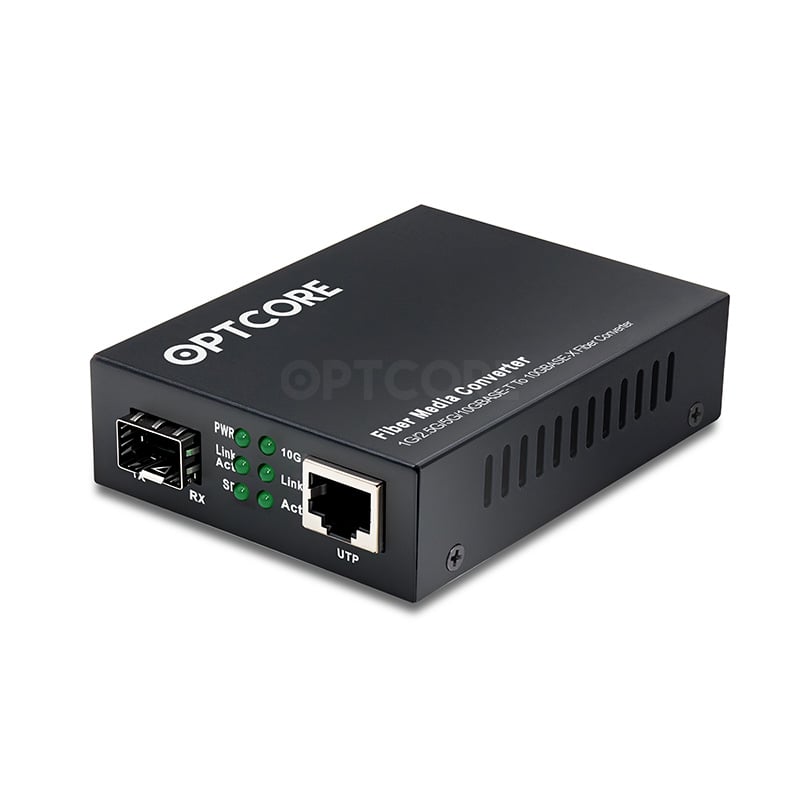

1G/2.5G/5G/10GBASE-T RJ45 Copper Ethernet to 10G SFP+ Fiber Media Converter
Price range: US$ 89.00 through US$ 208.00 (Excl. VAT)
High-performance Stand-alone 10 Gigabit Ethernet Media Converter 10GBase-T Copper to 10GBase-X Fiber, Choose the 10G SFP+ transceiver and save much with the bundle order.
Model:
1x RJ45 to 1x 10G SFP+ 1x RJ45 to 1x SFP 4x RJ45 to 1x SFP 4x RJ45 to 2x SFP 1x RJ45 to 1x SC/ST/FC | 0.5km 1x RJ45 to 1x SC/ST/FC | 20km 1x RJ45 to 1x SC/ST/FC | WDM 20km
Category:
100M Media Converter 1G Media Converter 10G Media Converter PoE Media Converter Media Converter Chassis
1G/2.5G/5G/10GBASE-T Copper to 10G SFP+ Fiber Media Converter (RJ45, Open SFP+ Port)
This 10G SFP+ media converter allows simple conversion between 1G/2.5G/5G/10GBase-T copper and 10GBase-X fiber. This 10G Ethernet media converter is designed with a 10Gbase Ethernet PHY chip that smoothly connects two types of segments. This media converter can be used as a standalone unit or as the slide-in module for the 19” converter rack Chassis at a central wiring closet.
Flexible and Reliable High-Speed Network Distance Extension Solution
This 10G Ethernet media converter has one RJ-45 auto-negotiation port and one open SFP+ port. The RJ-45 port auto-negotiates with 10GBASE-T, 5GBASE-T, 2.5GBASE-T, and 1000BASE-T. The open SFP+ port supports a wide range of 10G SFP+ transceiver include 10GBASE-SR, 10GBASE-LR, 10GBASE-LRM, 10GBASE-ER, 10GBASE-ZR, 10GBASE-BX and 10GBASE-CWDM.
It provides an ideal solution to extend the transmission distance of a traditional 10G copper (RJ45) based network. By choosing a 10GBASE-ZR SFP+ module over singlemode fiber, you could achieve 80km. This 10G SFP+ fiber media converter is suitable for use in network environments where ultra-high bandwidth provided by 10G Ethernet is required.
Features
- Cost-effective migration from 10GBase-T copper to 10GBASE-X fiber SFP+
- Auto-negotiation function allows UTP ports to auto-select 1G/2.5G/5G/10GBase-T
- The UTP port supports the connection of MDI/MDI-X auto crossover
- Open SFP+ slot allows you to customize the network extension distance with any MSA 10G SFP transceiver
- Supporting flow control
- Easy-to-view LED indicators to provide status to monitor network activity easily.
- ROHS-compliant and Lead-Free
Specification
| Product Series | 10G Ethernet Media Converter | Standards and Protocols | IEEE 802.3 IEEE 802.3an IEEE 802.3ae IEEE 802.3az |
| Ports | 1 x 10GBASE-T RJ45 port 1 x 10GBASE-X SFP+ port |
Network Media | 1000Base-T: Cat5 UTP/STP. MAX 100m; 2.5GBase-T: Cat5e UTP/STP. MAX 50m; 5GBase-T: Cat5e UTP/STP. MAX 50m; 10GBase-T: Cat6a UTP/STP. MAX 50m; 10GBase-X: Multimode or Singlemode Fiber (max 80km, depends on the SFP+ module) |
| Flow control | Full Duplex: IEEE802.3x Half Duplex: back pressure |

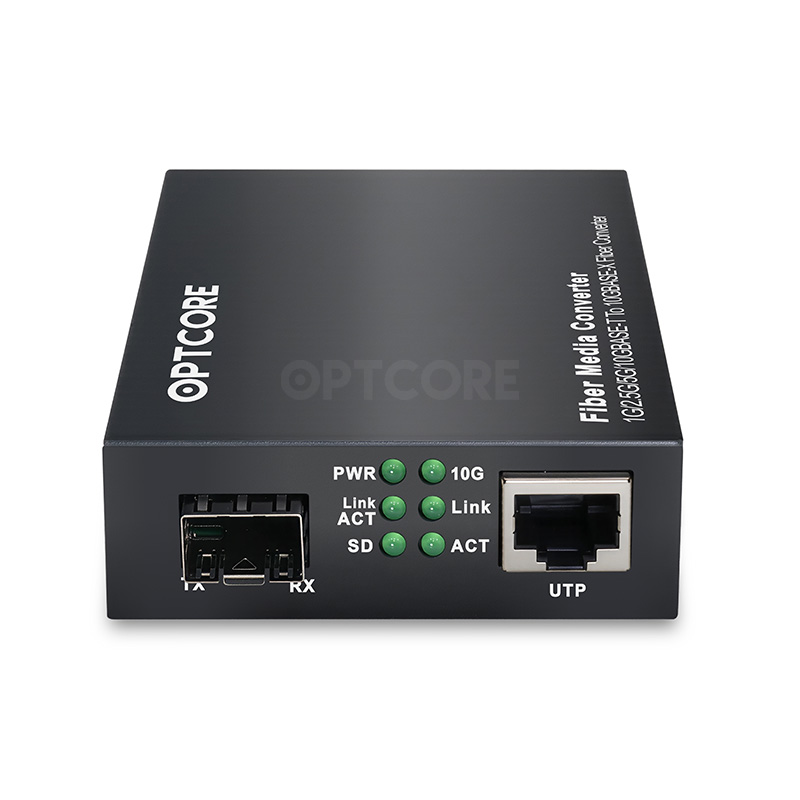

LED indicator | Power, FX 100, FX Link/Act SD, 10G, TX Link, TX Act |
| Jumbo Frame | 9.6K | Enclosure | Compact-sized metal case |
| Wavelength | Depends on SFP+ Transceiver | Fiber Type | Multimode or Singlemode Fiber |
| Transmitter Power | Depends on SFP+ Transceiver | Receiver Sensitivity | Depends on SFP+ Transceiver |

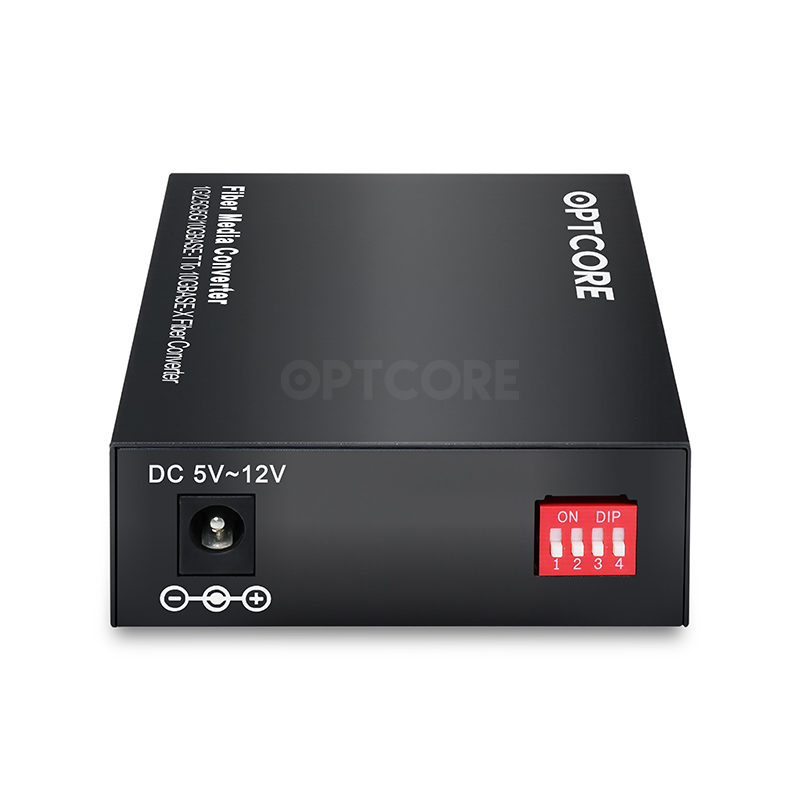

| Power Supply | External Power Adapter Input: AC 100~240V 50/60Hz Output: DC 12V 1.6A |
Power Consumption | 5W |
| Dimensions (WxDxH) | 26×70×93mm | Gross Weight | 0.5 kg |
| Environment | Operating: 0°C to 50°C, 10~90% RH Storage: -40°C to 70°C, 5~90% RH |
Compliance | FDA IEC/EN 60825-1 ROHS, CE |
Ordering information
| Optcore Part Number | Description |
| MC-10GSA11-L | 10GBASE-T Copper to 10GBase-X SFP Fiber Media Converter (Open SFP+ port) |
The MC-10GSA11-L supports the below 10GBASE-X SFP+ transceivers. Click the P/N to learn more detailed information.
| Model | Description |
| OSP10G-8503DCR | 10GBASE-SR SFP+ Transceiver,MMF,850nm,300m,DDM |
| OSP10G-3110DCR | 10GBASE-LR SFP+ Transceiver,SMF,1310nm,10km,DDM |
| OSP10G-3102DCR | 10GBASE-LRM SFP+ Transceiver,MMF,1310nm,220m,DDM |
| OSP10G-3140DCR | 10GBASE-LR SFP+ Transceiver,SMF,1310nm,40km,DDM |
| OSP10G-5540DCR | 10GBASE-ER SFP+ Transceiver,SMF,1550nm,40km,DDM |
| OSP10G-5580DCR | 10GBASE-ZR SFP+ Transceiver,SMF,1550nm,80km,DDM |
| OPB10G-2310DCR | 10GBASE-BX BIDI SFP+ Transceiver,SMF,TX:1270/RX:1330nm,10km,DDM |
| OPB10G-3210DCR | 10GBASE-BX BIDI SFP+ Transceiver,SMF,TX:1330/RX:1270nm,10km,DDM |
| OPB10G-2340DCR | 10GBASE-BX BIDI SFP+ Transceiver,SMF,TX:1270/RX:1330nm,40km,DDM |
| OPB10G-3240DCR | 10GBASE-BX BIDI SFP+ Transceiver,SMF,TX:1330/RX:1270nm,40km,DDM |
| OPB10G-2360DCR | 10GBASE-BX BIDI SFP+ Transceiver,SMF,TX:1270/RX:1330nm,60km,DDM |
| OPB10G-3260DCR | 10GBASE-BX BIDI SFP+ Transceiver,SMF,TX:1330/RX:1270nm,60km,DDM |
| OPC10G-xx40DCR | 10GBASE-ER CWDM SFP+ Transceiver,SMF,xxnm(1470~1610nm avaliable),40km,DDM |
| OPC10G-xx80DCR | 10GBASE-ZR CWDM SFP+ Transceiver,SMF,xx nm,80km,DDM |
Note: To order the corresponding country-specific power supply, add the extension from the list below to the end of the model.
For example: MC-ESA11-L-EU, -EU = Country Code (EU = Europe, US = North America, UK = United Kingdom, SA = South Africa, CN = China)
Figure 1: EU Plug
Figure 2: US Plug
Figure 3: UK Plug
Reference Equipment
OPTCORE’s 10GBASE-T to 10G SFP+ Fiber Media Converter can work with a wide range of network equipment, providing you with the same high performance at a lower cost to meet your network upgrade needs.
| Manufacturer | Part Number & Description |
| Allied Telesis | MMC10GT/SP: 10GT to SFP+ Mini Media Converter, Universal PSU, TAA compliant |
| Black Box | LGC220A: Pure Networking 10-Gigabit (10-Gbps) Media Converter – 10-Gbps Copper to 10-Gbps Fiber SFP+ |
| CTC Union | FRM220-10GC-TS: 10G Base-T to 10G Base-R SFP+ Media Converter |
| D-Link | DMC-905: 10GBASE-T to 10G SFP+ Media Converter |
| L-com | NA |
| LevelOne | GVT-0500: RJ45 to SFP+ 10-Gigabit Media Converter |
| Omnitron | 8589N-0-p: 10GBASE-T RJ-45 Copper to SFP+ Receptacle Ethernet Media Converter |
| Perle | S-10G-STS: 10 Gigabit Ethernet to SFP Fiber Converters |
| Planet | XT-705A: 10G/5G/2.5G/1G/100M Copper to 10GBASE-X SFP+ Media Converter |
| StarTech | MCM10GSFP: 10GbE Fiber Ethernet Media Converter for 10Gbps Network 10GBASE-T SFP to RJ45 Multigigabit Singlemode/Multimode Fiber Optic to Copper Network Ethernet to Fiber Bridge |
| TP-Link | NA |
| Transition Networks | S4120-1048: Stand-alone 10 Gigabit Ethernet Media Converter 10GBase-T Copper to Fiber |
| TRENDnet | NA |
Power Adapter: To order the corresponding country-specific power supply, add the extension from the list below to the end of the model.
For example: MC-GSA11-L-EU, -EU = Country Code (EU = Europe, US = North America, UK = United Kingdom, SA = South Africa, CN = China)
Download
| Weight | 0.55 kg |
|---|---|
| Distance | |
| Wavelength | |
| Plug Type |
James Anderson –
Best of the best. fast delivery and quality products
Stephen Skyles –
I bought this to convert 10G fiber to 5GBase-T for my Wi-Fi 6E AP. My Juniper switch does not negotiate 5G, even with the appropriate SFP. This convertor was the perfect solution. Quality build and well engineered, far exceeded my expectations. I love how the data activity LEDs reflect closer to actual dataflow and there’s nothing to limit the rate of their blinking. I prefer this over the semi-fake tri-blinking of Cisco switches for example… Power cord could be longer (6ft instead of 3) and made of a softer material, but that’s my only complaint for this otherwise excellent and cost effective product!
Lisa – Support Team –
Thank you for choosing the Optcore 10GBASE-T SFP fiber media converter. We are pleased to hear that the compatibility, value, and performance of the conveter meet your networking needs.
Bern –
Thanks for the quick delivery and quality media converter.
Joyce –
Converts 10G fiber to copper!
Joe –
Very inexpensive 10G media converter for someone looking to work with cat 6 ethernet and fiber in their home lab, and easily justifiable if you plan to use them in your small business networking.
