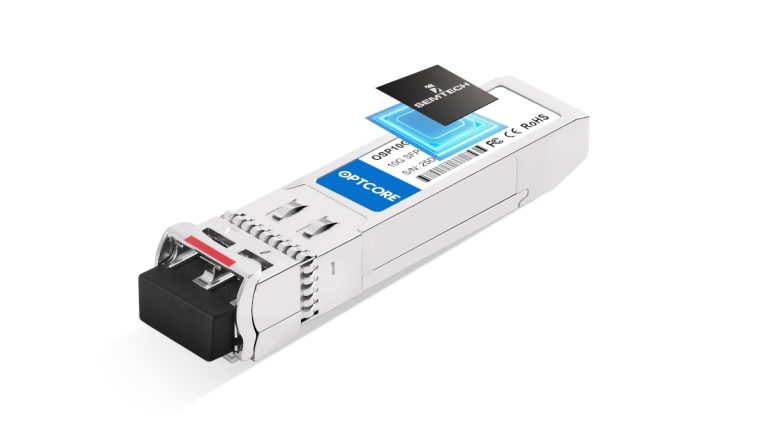

10Gb/s MMF 1310nm 220m SFP+ LRM Optical Transceiver Module
Optcore’s OSP10G-3102DCR is a high performance and cost-effective 10Gb/s SFP+ LRM transceiver module for 10 Gigabit Ethernet links up to 220m over OM3 multimode fiber. This SFP+ LRM module features a highly reliable 1310nm FP transmitter and PIN photo-detector into duplex LC optical connector. The module complies with SFP+ MSA specifications (SFF-8431, SFF-8432, SFF-8472), 10 Gigabit Ethernet specifications (10GBASE-LRM per IEEE 802.3ae ), and 10G Fibre Channel (1200-MX-SN-I). It’s suitable for use with 10GbE Ethernet switches, routers, network interface cards (NICs), fiber media converters and storage networking equipment. The OSP10G-3102DCR offers the most power efficient way to meet the demanding needs of the next-generation data center networking environment.
Additionally, the SFP+ LRM transceiver module has been integrated with an enhanced digital diagnostic monitoring interface (DDMI) per SFF-8472, which provides real-time monitoring of the transceiver temperature, laser bias current, optical power, received optical power and transceiver supply voltage. All SFP+ transceivers module are Class 1 laser products comply with FDA/CDRH and IEC-60825 standards.
This 10Gb/s SFP+ LRM module is required to use mode conditioning patch (MCP) cables when used with OM1 or OM2 fiber to reach the maximum distance. The MCP cables are available in different connector and length and separately sold by Optcore.
• Hot-pluggable SFP+ footprint
• Electrical interface compliant to SFF-8431
• Compliant with SFF-8472
• 10Gb/s serial optical interface compliant to 802.3ae 10GBASE-LRM
• 1310nm FP transmitter, PIN photo-detector
• Distance up to 220m on OM3 Multimode fiber
• Duplex LC connector
• Built-in digital diagnostic functions
• Single 3.3V power supply
• Metal enclosure, for lower EMI
• ROHS compliant and lead-free
|Product Series||Fiber Optical Transceiver||Optcore Part Number||OSP10G-3102DCR|
|Form Factor||SFP+||Data Rate||10Gb/s|
|Wavelength||1310 nm||Fiber Type||MMF|
|Max Distance||220m on OM3||Optical Components||FP/PIN|
|Transmitter Power||-6 ~ 0 dBm||Extinction ratio||> 3.5 dB|
|Receiver Sensitivity||< -9 dBm||Receiver Overload||> 0.5 dBm|
|Connector||Duplex LC||Digital Diagnostic Monitoring||Yes|
|Environment||Operating: 0°C to 70°C
Storage: -40°C to 85°C
10G Fiber Channel
10GE Data Center Switches and Routers
10GE Network interface cards and Fiber Media Converters
|Compliance||IEC/EN 61000-4-2, IEC-60825
FDA 21CFR 1040.10 and 1040.11
Note: Specifications and product availability are subject to change without notice. Optcore assumes no responsibility for inaccuracies contained herein.
