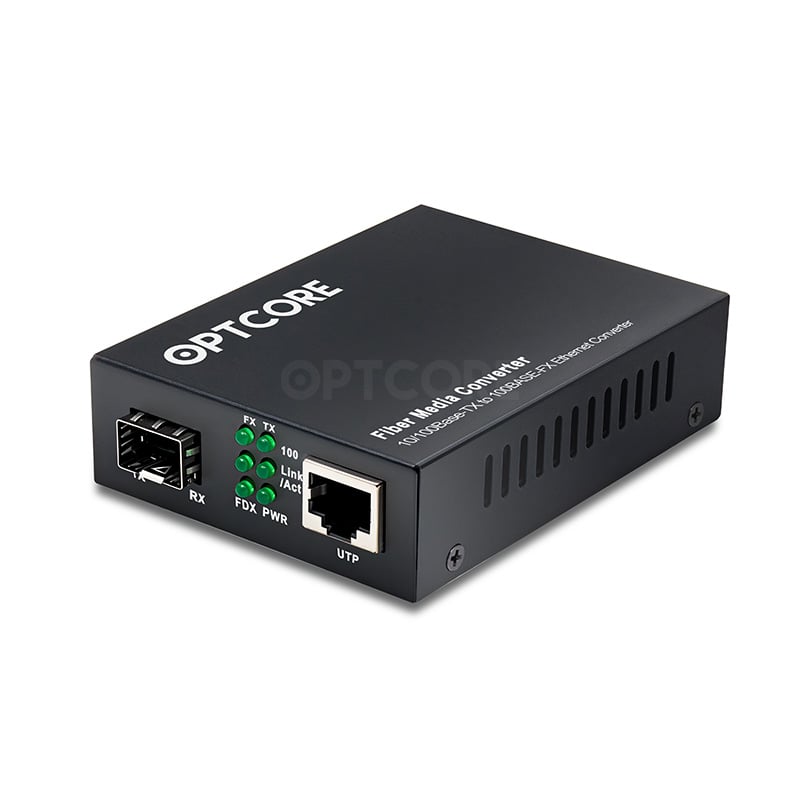

10/100Base-TX RJ45 Ethernet to 100Base-FX SFP Fiber Media Converter
Original price was: US$ 13.00.US$ 11.00Current price is: US$ 11.00. (Excl. VAT)
Good quality 10/100Base-TX to 100Base-FX SFP Fiber Media Converter (2km to 160km, 1x RJ-45 + 1xSFP).
Similar Model:
1x RJ45 to 1x SFP 1x RJ45 to 1x SC/ST/FC | 2km 1x RJ45 to 1x SC/ST/FC | 20km 1x RJ45 to 1x SC/ST/FC | 40km 1x RJ45 to 1x SC/ST/FC | 80km 1x RJ45 to 1x SC/ST/FC | 100km 1x RJ45 to 1x SC/ST/FC | 120km 1x RJ45 to 1x SC/ST/FC | WDM 20km 1x RJ45 to 1x SC/ST/FC | WDM 40km 1x RJ45 to 1x SC/ST/FC | WDM 80km
Category:
100M Media Converter 1G Media Converter 10G Media Converter PoE Media Converter Media Converter Chassis
10/100Base-TX RJ45 (100m/328ft) Fast Ethernet to 100Base-FX Open SFP Fiber Media Converter (Distance depending on SFP module)
The MC-ESA11-L is an Ethernet Media Converter designed to convert 10/100BASE-TX copper to 100BASE-FX SFP fiber optic. The media converter features an open 100BASE-FX SFP slot, allowing you to choose the MSA compliant pluggable 100BASE-FX SFP transceiver optics that best meet your fiber connection needs. The MC-ESA11-L 10/100M SFP media converter supports both multimode and Singlemode fiber standards, with transmission distances of up to 160 kilometers (99.4miles) depends on different 100Base-FX SFP optics. Our 10/100M SFP Fiber Converter offers a flexible and cost-effective way to extend the distance of existing networks, the life of non-fiber-based equipment, or the distance between two devices, allowing you to maximize the usage and performance of legacy equipment.
The MC-ESA11-L 10/100M SFP Media Converter is manufactured with the latest IC from the USA or Taiwan and a high-quality fiber optical transceiver, to provide good electrical characteristics to ensure reliable data transmission and long working life. 6 Group LED indicated lights could fully monitor the working conditions of Media Converters, which is easy for end-users to observe and diagnose the failure of network operation.
The MC-ESA11-L 10/100M SFP media converter provide external power as default, it can be used as a stand-alone unit, or slide-in module when inserting into Optcore’s low-cost 14-slot Media Converter Rackmount Chassis (MC-RACK-14) that allows all the media converters to be powered by a single internal power supply.
Features
• Cost-effective migration from 10/100Base-TX copper to 100BASE fiber SFP
• Auto-negotiation function allows UTP ports to auto select 10/100Mbps and Full Duplex or Half Duplex
• The UTP port supports the connection of MDI/MDI-X auto crossover
• Open 100BASE-FX SFP slot to customize the network extension distance to your requirements with any MSA-compliant SFP transceiver optics
• Supporting flow control
• Easy-to-view LED indicators to provide status to monitor network activity easily
• Compacts size for easy installation and working with Optcore 14-Slot Media Converter Rack-mount Chassis(MC-RACK-14)
• ROHS compliant and Lead-Free
Specification
| Product Series | SFP Fiber Media Converter | Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Ports | 1 x 10/100BASE-TX RJ45 port 1 x 100BASE-FX SFP port |
Network Media | 10/100Base-TX: Cat 5 UTP (maximum 100m) 100Base-FX: Mulitimode or Singlemode Fiber (maximum 160km, depends on the SFP optics) |
| Flow control | Full Duplex: IEEE802.3x Half Duplex: back pressure |
LED indicator | Power, FX 100, FX Link/Act TX 100, TX FDX, TX Link/Act |
| Buffer space | 128 KB | MAC address | 1 K |
| Wavelength | Depends on SFPs | Fiber Type | Multimode or Singlemode Fiber |
| Transmitter Power | Depends on SFPs | Receiver Sensitivity | Depends on SFPs |
| Power Supply | External Power Adapter Input: AC 100~240V 50/60Hz Output: DC 5V 1A |
Power Consumption | 2.5W |
| Dimensions (WxDxH) | 26×70×93mm | Gross Weight | 0.5 kg |
| Environment | Operating: 0°C to 50°C, 10~90% RH Storage: -40°C to 70°C, 5~90% RH |
Compliance | FDA IEC/EN 60825-1 ROHS, CE |
Ordering Information
| Optcore Part Number | Description |
| MC-ESA11-L | 10/100Base-TX to 100Base-FX SFP Fiber Media Converter (without SFP Transceiver Optics) |
The MC-ESA11-L supports the below 100BASE-FX SFP transceiver optics, click the P/N to learn more detailed information.
| Optcore Part Number | Description |
| OSP155-312DCR | 155Mb/s SFP Optical Transceiver, Multi-mode, 1310nm, 2km, LC, 0ºC~+70ºC |
| OSP155-3120DCR | 155Mb/s SFP Optical Transceiver, Single mode, 1310nm, 20km, LC, 0ºC~+70ºC |
| OSP155-3140DCR | 155Mb/s SFP Optical Transceiver, Single mode, 1310nm, 40km, LC, 0ºC~+70ºC |
| OSP155-5580DCR | 155Mb/s SFP Optical Transceiver, Single mode, 1550nm, 80km, LC, 0ºC~+70ºC |
| OSP155-55A2DCR | 155Mb/s SFP Optical Transceiver, Single mode, 1550nm, 120km, LC, 0ºC~+70ºC |
| OSP155-55A6DCR | 155Mb/s SFP Optical Transceiver, Single mode, 1550nm, 160km, LC, 0ºC~+70ºC |
| OPB155-3520DCR | 155Mb/s BIDI SFP Optical Transceiver, Single mode, Tx:1310nm/Rx:1550nm, 20km, LC, 0ºC~+70ºC |
| OPB155-5320DCR | 155Mb/s BIDI SFP Optical Transceiver, Single mode, Tx:1550nm/Rx:1310nm, 20km, LC, 0ºC~+70ºC |
| OPB155-3540DCR | 155Mb/s BIDI SFP Optical Transceiver, Single mode, Tx:1310nm/Rx:1550nm, 40km, LC, 0ºC~+70ºC |
| OPB155-5340DCR | 155Mb/s BIDI SFP Optical Transceiver, Single mode, Tx:1550nm/Rx:1310nm, 40km, LC, 0ºC~+70ºC |
| OPB155-3580DCR | 155Mb/s BIDI SFP Optical Transceiver, Single mode, Tx:1310nm/Rx:1550nm, 80km, LC, 0ºC~+70ºC |
| OPB155-5380DCR | 155Mb/s BIDI SFP Optical Transceiver, Single mode, Tx:1550nm/Rx:1310nm, 80km, LC, 0ºC~+70ºC |
| OPB155-45A2DCR | 155Mb/s BIDI SFP Optical Transceiver, Single mode, Tx:1490nm/Rx:1550nm, 120km, LC, 0ºC~+70ºC |
| OPB155-54A2DCR | 155Mb/s BIDI SFP Optical Transceiver, Single mode, Tx:1550nm/Rx:1490nm, 120km, LC, 0ºC~+70ºC |
| OPB155-45A5DCR | 155Mb/s BIDI SFP Optical Transceiver, Single mode, Tx:1490nm/Rx:1550nm, 150km, LC, 0ºC~+70ºC |
| OPB155-54A5DCR | 155Mb/s BIDI SFP Optical Transceiver, Single mode, Tx:1550nm/Rx:1490nm, 150km, LC, 0ºC~+70ºC |
Note: To order the corresponding country specific power supply, add the extension from the list below to the end of the model.
For example: MC-ESA11-L-EU, -EU = Country Code (EU = Europe, US = North America, UK = United Kingdom, SA = South Africa, CN = China)
Download
| Weight | 0.5 kg |
|---|---|
| Distance | |
| Wavelength | 850nm, 1310nm, 1550nm, 1310nm-TX/1550nm-RX, 1550nm-TX/1310nm-RX, 1490nm-TX/1550nm-RX, 1550nm-TX/1490nm-RX |
| Plug Type |
