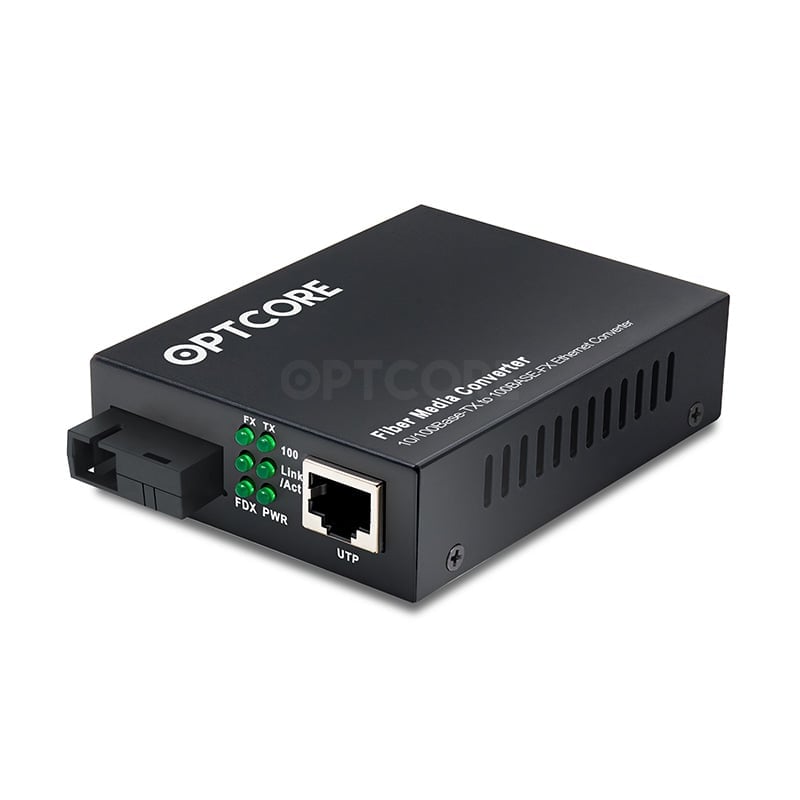

10/100Base-TX RJ45 to 100Base-BX 80km Single Fiber WDM Media Converter (SC/ST/FC)

10/100Base-TX RJ45 Ethernet (100m/328ft) to 100Base-BX Single Fiber WDM Media Converter (SC/ST/FC, 80km/49.7mi)

The MC-ESB11-x80x Series is a Fast Ethernet media converter designed to convert 10/100BASE-TX copper to 100BASE-BX single fiber. This media converter uses Wavelength-Division Multiplexing (WDM) technology, enabling Bi-Directional communication over a single fiber, doubling the capacity of your existing fiber infrastructure without having to install new cabling.

The MC-ESB11-x80x series 10/100BASE-TX to 100BASE-BX WDM media converter supports an 80km (49.7 miles) transmit distance over a single fiber at the wavelength of 1490nm-TX/1550nm-RX (MC-ESB11-A40x) or 1550nm-TX/1490nm-RX (MC-ESB11-B40x). It is provided with SC, ST, and FC connector options for different users. This single fiber WDM media converter is suitable for long network connectivity between servers, network switches, and the other converters.

The MC-ESB11-x80x is manufactured with the latest IC packages from the USA or Taiwan and a high-quality fiber optical transceiver, which provides a good electrical characteristic to ensure reliable data transmission and long working life. 6 Group LED indicated lights could fully monitor the working conditions of Media Converters. It is easy for end-users to observe network operations. This media converter provides external power as default, it can be as a stand-alone unit or inserted into Optcore’s low-cost 14-slot Media Converter Rack Chassis (MC-RACK-14) that allows all the media converters to be powered by a single internal power supply.

Features

• Auto-negotiation function allows UTP port to auto select 10M or 100M, and Full Duplex or Half Duplex
• UTP port supports MDI/MDI-X auto crossover
• Indicator function of link fault (LFP): When the optical fiber or UTP is at fault, the converter could stop all the link
• Multiple Optical Transceiver could be chosen: SC, ST, or FC
• Adopts WDM technology, transmitting and receiving data on one single fiber
• Easy-to-view LED indicators to provide monitoring of network system easily
• Compliant with IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX, 100Base-BX Standards
• Internal Circuit of prevented thunder could greatly reduce the damage of the converter caused by thunderbolt induction
• ROHS compliant and Lead-Free

Specification

Ordering Information

Note: To order the corresponding country-specific power supply, add the extension from the list below to the end of the model.
For example: MC-ESB11-A80C-EU, -EU = Country Code (EU = Europe, US = North America, UK = United Kingdom, SA = South Africa, CN = China)

Figure 1: EU Plug

Figure 2: US Plug

Figure 3: UK Plug
