Compatible SFP+/SFP28 for Synology RS2423RP+/RS2423+ NAS
Jan
In the previous article, we briefly discussed SFPs compatible with MikroTik switches. However, today, we will discuss a more niche industry—NAS. Those familiar with the NAS industry will surely think of Synology and QNAP. Indeed, Synology and QNAP are the two most famous brands in the Network-Attached Storage (NAS) industry, and users widely favor them. This article will focus on the Synology RS2423+/RS2423RP+ rack NAS server and the compatible SFP/SFP28.
Synology RS2423RP+/RS2423+ Overview
To replace the previous RS2421+/ RS2421RP+ 2U 12-bay rackmount NAS, Synology launched the updated RS2423+ and RS2423RP+ in February 2023. Compared to RS2421+/ RS2421RP+, the new RS2423+ and RS2423RP+ are configured with better-performing CPUs. RS2423+ and RS2423RP+ are equipped with an AMD Ryzen 1780B quad-core processor running at 3.35 GHz, while the previous RS2421+/ RS2421 are equipped with a Ryzen V1500B processor running at 2.2 GHz. Here, we can see the fine print of the performance increase. Elsewhere, there are no particularly subtle differences between the two.
The RS2423+ and RS2423RP+ (redundant power supply) are next-generation, versatile 2U 12-bay storage servers particularly suited to centralized data storage and sharing, endpoint and server backups, monitoring and management, and other business applications. The RS2423RP+/RS2423+ features sequential read/write performance of more than 3,500/1,700 MB per second, up to 216 TB of raw storage, and the option to boost I/O speeds with SSD caching, providing flexible storage with powerful built-in data protection.
Two models are available: the RS2423+ and the RS2423RP+. The RS2423+ is equipped with a single power supply, and the RS2423RP+ is equipped with dual power supplies to keep services up and running in the event of a problem with one of the power supplies. There are no other performance differences between the two models.
As a file management and sharing solution for small and medium-sized businesses, the NAS helps users and branch offices consolidate their data management into one system. Built-in data protection solutions and simple hardware scalability make it usable for most scenarios of various data storage.

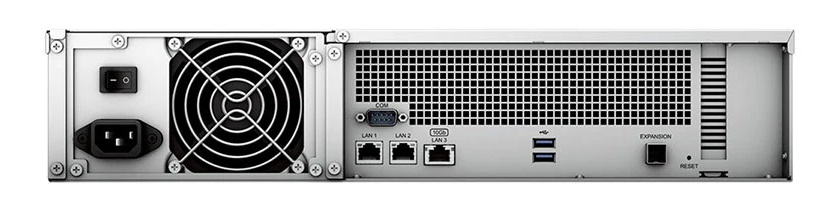

On the hardware side, the RS2423+ and RS2423RP+ come with 12 slots of hard disk space. With the RX1223RP expansion unit, 12 additional complicated disk slots can be added to support up to 24 hard disks. On the back of the rack, the model is equipped with a 10GbE RJ-45 port, 2 Gigabit Ethernet ports, 2 USB 3.2 Ports, and, most importantly, an Expansion Port, which allows the user to select the appropriate Ethernet Adapter E10G30-F2 or E25G30-F2 according to their actual needs.

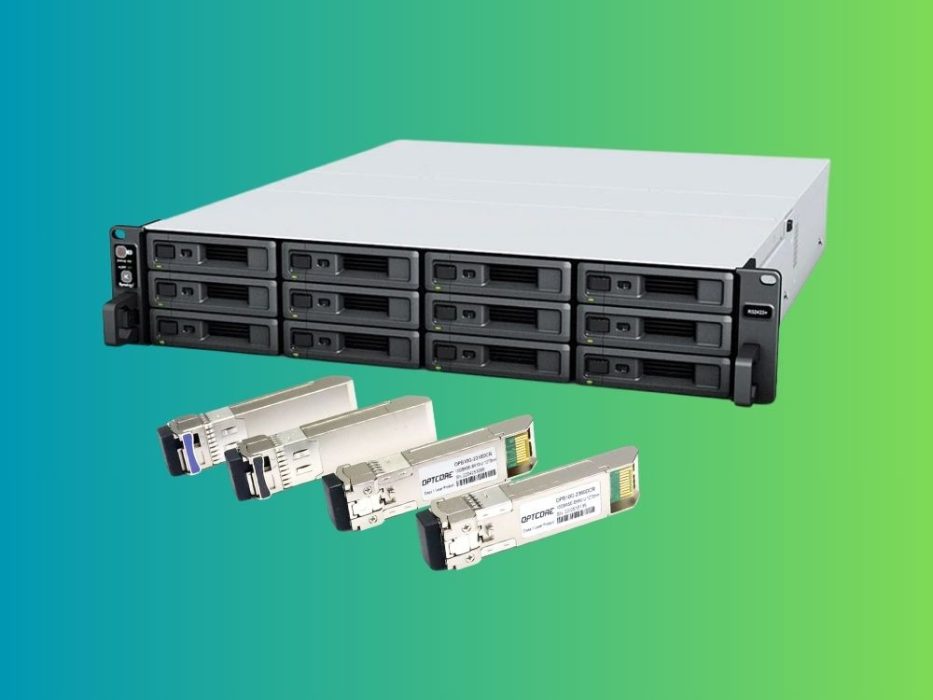

Compatible SFP+/SFP28 for Synology RS2423RP+/RS2423+ NAS
RS2423RP+/RS2423+ provides an expansion Port to support a flexible 10G/25G Ethernet Adapter. By using this high-speed Network Interface Card, RS2423RP+/RS2423+ can connect with other devices via fiber optic cabling over long distances. The table below lists this NAS server’s compatible SFP/SFP28 modules.
| Part Number | Description |
| 10G SFP+ Module | |
| SFP-10G-SR | Synology Compatible 10G SFP+ SR Transceiver Module |
| SFP-10G-LR | Synology Compatible 10G SFP+ LR Transceiver Module |
| SFP-10G-ER | Synology Compatible 10G SFP+ ER Transceiver Module |
| SFP-10G-BX10U | Synology Compatible 10GBASE-BX10-U BiDi SFP+ Transceiver Module |
| SFP-10G-BX10D | Synology Compatible 10GBASE-BX10-D BiDi SFP+ Transceiver Module |
| 25G SFP28 Module | |
| SFP-25G-SR | Synology Compatible 10G SFP+ SR Transceiver Module |
| SFP-25G-LR | Synology Compatible 10G SFP+ LR Transceiver Module |
| 10G SFP+ DAC Cable | |
| SFP-10G-DAC1M | Synology Compatible 1m 10G SFP+ Direct Attach Cable |
| SFP-10G-DAC2M | Synology Compatible 2m 10G SFP+ Direct Attach Cable |
| SFP-10G-DAC3M | Synology Compatible 3m 10G SFP+ Direct Attach Cable |
| SFP-10G-DAC5M | Synology Compatible 5m 10G SFP+ Direct Attach Cable |
| 25G SFP28 DAC Cable | |
| SFP-25G-DAC1M | Synology Compatible 1m 25G SFP28 Direct Attach Cable |
| SFP-25G-DAC2M | Synology Compatible 2m 25G SFP28 Direct Attach Cable |
| SFP-25G-DAC3M | Synology Compatible 3m 25G SFP28 Direct Attach Cable |
| SFP-25G-DAC5M | Synology Compatible 5m 25G SFP28 Direct Attach Cable |
| 10G SFP+ AOC Cable | |
| SFP-10G-AOC1M | Synology SFP+ Active Direct Attach Cable, 1m |
| SFP-10G-AOC3M | Synology SFP+ Active Direct Attach Cable, 3m |
| SFP-10G-AOC5M | Synology SFP+ Active Direct Attach Cable, 5m |
| SFP-10G-AOC10M | Synology SFP+ Active Direct Attach Cable, 10m |
| 25G SFP28 AOC Cable | |
| SFP-25G-AOC1M | Synology 25G SFP28 Active Direct Attach Cable, 1m |
| SFP-25G-AOC3M | Synology 25G SFP28 Active Direct Attach Cable, 3m |
| SFP-25G-AOC5M | Synology 25G SFP28 Active Direct Attach Cable, 5m |
| SFP-25G-AOC10M | Synology 25G SFP28 Active Direct Attach Cable, 10m |
| Fiber Patch Cable | |
| LC-LC-OM2-DxM | LC/LC Duplex 50/125μm OM2 Multimode Fiber Optic Cable (1m-50m or Custom Length) |
| LC-LC-OM3-DxM | LC/LC Duplex 50/125μm 10G OM3 Multimode Fiber Optic Cable (1m-50m or Custom Length) |
| LC-LC-OM4-DxM | LC/LC Duplex 50/125μm 40G OM4 Multimode Fiber Optic Cable (1m-50m or Custom Length) |
| LC-LC-SM-DxM | LC/LC Duplex 9/125μm OS2 Singlemode Fiber Optic Cable (1m-50m or Custom Length) |
| MC-LC-LC-OM2-DxM | LC/LC Duplex 50/125μm Mode Conditioning Fiber Optic Cable (MCP, 1m-50m or Custom Length) |
FAQ
Q: Which one is better, Synology RS2421+ vs RS2423+?
A: Considering performance and scalability, RS2423+ is undoubtedly better, primarily because of the better CPU and faster networking ports.
Q: How can I upgrade the RS2423+ RAM?
A: The RS2423+ provides 2 Memory Slots, and one piece of 8GB DDR4 ECC UDIMM was pre-installed as default. If you max out the built-in 8GB of RAM, you could replace it with 2 x 16GB RAM to get the 32GB total memory. Simply follow this guide:
- Power Off: Turn off the RS2423+ and disconnect it from the power source.
- Open the Case: Remove the rear cover of the RS2423+ to access the internal components.
- Locate the RAM Slots: Find the RAM slots on the motherboard.
- Remove Existing RAM: If you’re replacing existing RAM, gently push the clips on either side of the RAM module to release it, then pull it out.
- Insert New RAM: Align the new RAM module with the slot and gently press it down until the clips click into place.
- Close the Case: Replace the front cover and secure it.
- Power On: Reconnect the power source and turn on the RS2423+.
Conclusion
As centralized data management for SMBs, the Synology RackStation RS2423RP+/RS2423+ offers more than enough hard disk space and scalable and flexible network connection speeds. On the software side, with the reliable and easy-to-use DSM system and a variety of feature-rich applications such as Synology High Availability, Hyper Backup, and Synology Drive, SMB users can realize all kinds of typical file processing, backup, and collaboration.
Test in the target Synology NAS system, OPTCORE is a pioneer in providing total fiber connectivity solutions for various customers, including small and medium-sized businesses looking to enhance their network infrastructure. With OPTCORE’s compatible SFP/SFP28 solution, enterprise users can experience increased bandwidth, lower latency, and improved data transfer speeds while saving much more on the budget.
