Compatible Optical Solution for HPE 5120 EI Switch Series
Oct

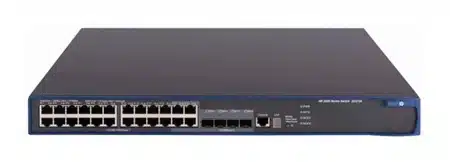

HPE 5120 EI Switch Series Overview
The HP 5120 EI Switch Series consists of Gigabit Ethernet switches that support static Layer 3 routing, diversity services, and IPv6 forwarding and provide up to four 10 Gigabit Ethernet (10 GbE) expansion interfaces. The Unique Intelligent Resilient Framework (IRF) technology improves the resiliency, performance, and availability of the network by managing multiple virtual machines as a logical device while reducing operational complexity.
These switches provide Gigabit Ethernet access, which can be used at the edge of the network or connected to the server cluster of the data center. High scalability through two expansion slots to provide investment protection, each expansion slot can support dual port 10 GbE expansion module. High availability, simplified management, and comprehensive security control strategy are one of the key features that distinguish this series.
HPE 5120 EI Switch Series Features
• High scalability for investment protection
• Support for multiple services
• Comprehensive security control policies
• Diversified quality of service (QoS) policies
• Excellent manageability
HPE 5120 EI Switch Series Models
| Part Number | Description | Specification |
| JE069A | HP 5120-48G EI Switch with 2 Interface Slots | 48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Media Type: Auto-MDIX; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 dual-personality ports; auto-sensing 10/100/1000Base-T or SFP 2 port expansion module slots 1 RJ-45 serial console port Supports a maximum of 48 autosensing 10/100/1000 ports |
| JE067A | HP 5120-48G EI Switch | 48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Media Type: Auto-MDIX; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 dual-personality ports; auto-sensing 10/100/1000Base-T or SFP 1 RJ-45 serial console port Supports a maximum of 48 autosensing 10/100/1000 ports |
| JE068A | HP 5120-24G EI Switch with 2 Interface Slots | 24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 dual-personality ports; auto-sensing 10/100/1000Base-T or SFP 2 port expansion module slots 1 RJ-45 serial console port |
| JE066A | HP 5120-24G EI Switch | 24 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 dual-personality ports; PoE auto-sensing 10/100/1000Base-T or SPF 2 port expansion module slots 1 RJ-45 serial console port |
Compatible Optical Solution for HPE 5120 EI Switch Series
HPE 5120 EI Switch Series supports 1000BASE SFP, 10GBASE SFP+ transceiver, SFP+ Copper cable, SFP+ AOC, XFP and fiber cables. The following tables list the supported transceiver and cables on the HPE 5120 EI Switch Series. This table will help you to configure the right parts for your HP switches.
| Part Number | Description |
| 1G SFP Transceiver Optics | |
| JD089B-C | HPE JD089B X120 Compatible 1G SFP RJ45 T Transceiver |
| JD118B-C | HPE JD118B X120 Compatible 1G SFP LC SX Transceiver |
| JD119B-C | HPE JD119B X120 Compatible 1G SFP LC LX Transceiver |
| JD061A-C | HPE JD061A X125 Compatible 1G SFP LC LH40 1310nm Transceiver |
| JD062A-C | HPE JD062A X120 Compatible 1G SFP LC LH40 1550nm Transceiver |
| JD063B-C | HPE JD063B X125 Compatible 1G SFP LC LH70 Transceiver |
| 1G Bi-directional SFP Transceiver Optics | |
| JD098B-C | HPE JD098B X120 Compatible 1G SFP LC BX 10-U Transceiver |
| JD099B-C | HPE JD099B X120 Compatible 1G SFP LC BX 10-U Transceiver |
| 10G SFP+ Transceiver Optics | |
| JD092B-C | HPE JD092B X130 Compatible 10G SFP+ LC SR Transceiver |
| JD093B-C | HPE JD093B X130 Compatible 10G SFP+ LC LRM Transceiver |
| JD094B-C | HPE JD094B X130 Compatible 10G SFP+ LC LR Transceiver |
| JL437A-C | HPE JL437A X130 Compatible 10G SFP+ LC SR Data Center Transceiver |
| JL438A-C | HPE JL438A X130 Compatible 10G SFP+ LC LRM Data Center Transceiver |
| JL439A-C | HPE JL439A X130 Compatible 10G SFP+ LC LR Data Center Transceiver |
| JG234A-C | HPE JG234A X130 Compatible 10G SFP+ LC ER 40km Transceiver |
| JG915A-C | HPE JG915A X130 Compatible 10G SFP+ LC LH 80km Transceiver |
| 10G SFP+ DAC Cables | |
| JD095C-C | HPE JD095C X240 Compatible 10G SFP+ to SFP+ 0.65m Direct Attach Copper Cable |
| JD096C-C | HPE JD096C X240 Compatible 10G SFP+ to SFP+ 1.2m Direct Attach Copper Cable |
| JD097C-C | HPE JD097C X240 Compatible 10G SFP+ to SFP+ 3m Direct Attach Copper Cable |
| JH693A-C | HPE JH693A X240 Compatible 10G SFP+ to SFP+ 0.65m Direct Attach Copper Campus-Cable |
| JH694A-C | HPE JH694A X240 Compatible 10G SFP+ to SFP+ 1.2m Direct Attach Copper Campus-Cable |
| JH695A-C | HPE JH695A X240 Compatible 10G SFP+ to SFP+ 3m Direct Attach Copper Campus-Cable |
| JG081C-C | HPE JG081C X240 Compatible 10G SFP+ to SFP+ 5m Direct Attach Copper Cable |
| 10G SFP+ AOC Cables | |
| JL290A-C | HPE JL290A X2A0 Compatible 10G SFP+ to SFP+ 7m Active Optical Cable |
| JL291A-C | HPE JL291A X2A0 Compatible 10G SFP+ to SFP+ 10m Active Optical Cable |
| JL292A-C | HPE JL292A X2A0 Compatible 10G SFP+ to SFP+ 20m Active Optical Cable |
| 10G XFP Transceiver Optics | |
| JD108B-C | HPE X130 JD108B Compatible 10G XFP LC LR Transceiver |
| JD117B-C | HPE X130 JD117B Compatible 10G XFP LC SR Transceiver |
| Fiber Optical Cables | |
| AJ833A-C | HP AJ833A Compatible LC to LC Multi-mode OM3 2-Fiber 0.5m Fiber Optic Cable |
| AJ834A-C | HP AJ834A Compatible LC to LC Multi-mode OM3 2-Fiber 1.0m Fiber Optic Cable |
| AJ835A-C | HP AJ835A Compatible LC to LC Multi-mode OM3 2-Fiber 2.0m Fiber Optic Cable |
| AJ836A-C | HP AJ835A Compatible LC to LC Multi-mode OM3 2-Fiber 5.0m Fiber Optic Cable |
| AJ837A-C | HP AJ837A Compatible LC to LC Multi-mode OM3 2-Fiber 15.0m Fiber Optic Cable |
| AJ838A-C | HP AJ837A Compatible LC to LC Multi-mode OM3 2-Fiber 30.0m Fiber Optic Cable |
| AJ839A-C | HP AJ837A Compatible LC to LC Multi-mode OM3 2-Fiber 50.0m Fiber Optic Cable |
| QK732A-C | HP Premier Flex QK732A Compatible LC/LC Multi-mode OM4 2 Fiber 1m Fiber Optic Cable |
| QK733A-C | HP Premier Flex QK733A Compatible LC/LC Multi-mode OM4 2 Fiber 2m Fiber Optic Cable |
| QK734A-C | HP Premier Flex QK734A Compatible LC/LC Multi-mode OM4 2 Fiber 5m Fiber Optic Cable |
| QK735A-C | HP Premier Flex QK735A Compatible LC/LC Multi-mode OM4 2 Fiber 15m Fiber Optic Cable |
| QK736A-C | HP Premier Flex QK736A Compatible LC/LC Multi-mode OM4 2 Fiber 30m Fiber Optic Cable |
| QK737A-C | HP Premier Flex QK737A Compatible LC/LC Multi-mode OM4 2 Fiber 50m Fiber Optic Cable |
Note: All trademarks, product, company names mentioned are the property of their respective owners and used for comparative purposes only. All the recommended transceivers and cables are from 3rd Party vendor, they are NOT OEM products and are NOT certified or endorsed by OEM.
