Optical Transceiver and optical cable are the essential part of the Ubiquiti UniFi® Switch family, which plays an important role in fiber network cabling infrastructure. This article introduces third-party compatible Transceiver and Optical Cabling Solution for Ubiquiti UniFi® Switch.
Ubiquiti UniFi® Switch Series Overview
UniFi Switch is managed by UniFi®Controller software to provide powerful performance, intelligent switching, and PoE + support for your enterprise network. The models of the UniFi switch include 24 or 48 RJ45 Gigabit port options. The UniFi® controller provides a graphical user interface for easy configuration and monitoring of UniFi switches and other UniFi devices.The UniFi Switch is a fully managed, PoE+ Gigabit switch, delivering robust performance and intelligent switching for growing networks.

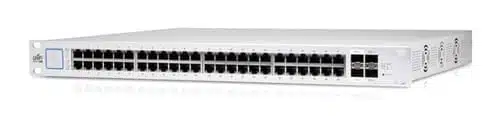

Ubiquiti UniFi® Switch
Features
• Switching performance
The UniFi switch provides forwarding capability that can handle traffic on all ports at the same rate as the line rate without losing any packets.
• PoE + flexibility
The UniFi switch models have 8, 16, 24, or 48 adaptive IEEE 802.3af / at or configurable 24V PoE PoE Gigabit Ethernet ports to simplify your infrastructure. By default, the UniFi switch automatically detects 802.3af / at devices, so they automatically receive PoE. For 24V passive PoE devices, use the UniFi controller software to manually enable 24V passive PoE.
• Fiber Connectivity
The UniFi switch provides fiber connectivity options for easy expansion of the network. Each UniFi switch model includes two SFP ports for up to 1 Gbps uplink. Two SFP + ports are added for each 48-port high-capacity uplink up to 10 Gbps, so you can connect directly to a high-performance storage server or deploy a remote uplink to another switch.
Ubiquiti UniFi® Switch Models
| Part Number | Description | Specification |
| US-8-150W | Ubiquiti Networks 8-Port UniFi Switch, Managed PoE+ Gigabit Switch with SFP, 150W | • (8) Gigabit RJ45 Ports • (2) SFP Ports • Non-Blocking Throughput: 10 Gbps • Switching Capacity: 20 Gbps • Forwarding Rate: 14.88 Mpps • Maximum Power Consumption: 150W • Supports PoE+ IEEE 802.3at/af and 24V Passive PoE • Quiet, Fanless Operation • Desktop-Mountable (Do not physically stack the US-8-150W.) |
| US-16-150W | Ubiquiti Networks UniFi Managed PoE+ 16-Port Gigabit Switch with SFP | • (16) Gigabit RJ45 Ports • (2) SFP Ports • (1) Serial Console Port • Non-Blocking Throughput: 18 Gbps • Switching Capacity: 36 Gbps • Forwarding Rate: 26.78 Mpps • Maximum Power Consumption: 150W • Supports PoE+ IEEE 802.3at/af and 24V Passive PoE • Rack-Mountable or Wall-Mountable with Rack-Mount Brackets (Included) |
| US-24-250W | Ubiquiti Networks UniFi Managed PoE+ Gigabit 24 Port Switch with SFP | • (24) Gigabit RJ45 Ports • (2) SFP Ports • (1) Serial Console Port • Non-Blocking Throughput: 26 Gbps • Switching Capacity: 52 Gbps • Forwarding Rate: 38.69 Mpps • Maximum Power Consumption: 250W • Supports PoE+ IEEE 802.3at/af and 24V Passive PoE • Rack-Mountable |
| US-24-500W | Ubiquiti Networks UniFi Managed PoE+ Gigabit 24 Port Switch with SFP (500W) | • (24) Gigabit RJ45 Ports • (2) SFP Ports • (1) Serial Console Port • Non-Blocking Throughput: 26 Gbps • Switching Capacity: 52 Gbps • Forwarding Rate: 38.69 Mpps • Maximum Power Consumption: 500W • Supports PoE+ IEEE 802.3at/af and 24V Passive PoE • Rack-Mountable |
| US-48-500W | Ubiquiti Networks UniFi Managed PoE+ Gigabit 48 RJ45 Port 500W Switch with SFP+ Ports | • (48) Gigabit RJ45 Ports • (2) SFP+ Ports • (2) SFP Ports • (1) Serial Console Port • Non-Blocking Throughput: 70 Gbps • Switching Capacity: 140 Gbps • Forwarding Rate: 104.16 Mpps • Maximum Power Consumption: 500W • Supports PoE+ IEEE 802.3at/af and 24V Passive PoE • Rack-Mountable |
| US-48-750W | Ubiquiti Networks US-48-750W UniFi Managed PoE+ Gigabit 48 RJ45 Port 750W Switch | • (48) Gigabit RJ45 Ports • (2) SFP+ Ports • (2) SFP Ports • (1) Serial Console Port • Non-Blocking Throughput: 70 Gbps • Switching Capacity: 140 Gbps • Forwarding Rate: 104.16 Mpps • Maximum Power Consumption: 750W • Supports PoE+ IEEE 802.3at/af and 24V Passive PoE • Rack-Mountable |
Transceiver and Optical Cabling Solutions for Ubiquiti UniFi® Switch Series
Ubiquiti UniFi® Switch features gigabit fiber SFP and XG SFP+ ports and supports a wide line of 1G SFP transceiver, 10G SFP+ transceivers, and optical fiber cables. The following tables list the supported SFPs and fiber cables on the Ubiquiti UniFi® Switch Series. This table will help you to configure the right optics for your Ubiquiti UniFi® Switch.
| Part Number | Description |
| 1G SFP Module | |
| UF-MM-1G-C | Ubiquiti Networks UF-MM-1G Compatible 1000BASE-SX Multi-Mode Fiber SFP Module |
| UF-SM-1G-C | Ubiquiti Networks UF-SM-1G Compatible 1000BASE-LX Single Mode Fiber SFP Module |
| UF-SM-1G-S-U | Ubiquiti Networks UF-SM-10G-S Compatible 1000BASE-BX-U Single Mode Fiber SFP Module |
| UF-SM-1G-S-D | Ubiquiti Networks UF-SM-10G-S Compatible 1000BASE-BX-D Single Mode Fiber SFP Module |
| 10G SFP+ Module | |
| UF-MM-10G-C | Ubiquiti Networks UF-MM-10G Compatible 10GBASE-SR Multi-Mode Fiber SFP Module |
| UF-SM-10G-C | Ubiquiti Networks UF-SM-10G Compatible 10GBASE-LR Single Mode Fiber SFP Module |
| UF-SM-10G-S-U | Ubiquiti Networks UF-SM-10G-S Compatible 10GBASE-BX-U Single Mode Fiber SFP Module |
| UF-SM-10G-S-D | Ubiquiti Networks UF-SM-10G-S Compatible 10GBASE-BX-D Single Mode Fiber SFP Module |
| Fiber Patch Cables | |
| FC-SM-100-C | Ubiquiti Networks FC-SM-100 Compatible 30m / 100ft Single-Mode LC Fiber Patch Cable |
| FC-SM-200-C | Ubiquiti Networks FC-SM-200 Compatible 60m / 200ft Single-Mode LC Fiber Patch Cable |
| FC-SM-300-C | Ubiquiti Networks FC-SM-300 Compatible 90m / 300ft Single-Mode LC Fiber Patch Cable |
Conclusion
The switch supports a wide range of advanced Layer 2 switching functions and protocols and provides Layer 3 routing. It integrates seamlessly into the UniFi Software Definition Network (SDN) platform to create highly scalable end-to-end network devices at multiple locations – all controlled by a single interface.
The Transceiver and Optical Cabling Solutions listed in the tables are manufactured by industry standards and the MSA (Multi-Source Agreement). More importantly, you could order them with high quality and 100% compatibility at an affordable price from Optcore, and save your money on overpriced optics. Optcore recommends IT manager choosing the compatible transceiver module and optical cabling solution from 3rd party vendor, and will be glad to offer our expertise in choosing the fiber network gears that best meets your needs.
Note: All trademarks, product, company names, images mentioned are the property of their respective owners and used for comparative purposes only. All the recommended transceivers and cables are from 3rd Party vendor, they are NOT OEM products and are NOT certified or endorsed by OEM.
