Compatible SFP+ and DAC Cable Solution For MikroTik CSS326-24G-2S+RM Switch
Feb

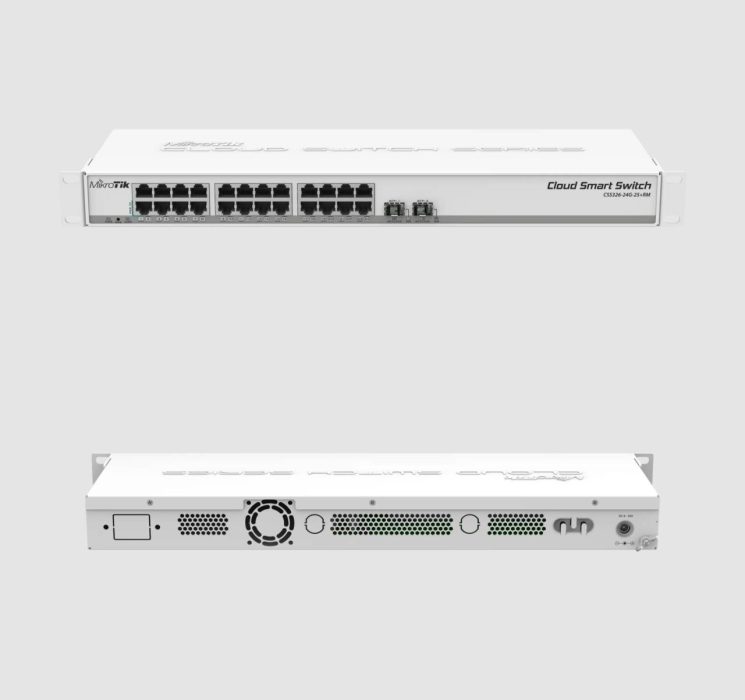

Overview of CSS326-24G-2S+RM
The MikroTik CSS326-24G-2S+RM was first released around mid-2017. It quickly became a popular choice for offices and labs looking for a cost-effective managed switch with Gigabit ports and SFP slots for fiber uplinks.
Cloud Smart Switch 326‑24G‑2S+RM is a SwOS-powered 24-port Gigabit Ethernet switch with two SFP+ slots in a 1U rackmount case that provides wire-speed connectivity and several handy switching features. What makes the CSS326-24G-2S+RM stand out from basic unmanaged switches is that it gives you all the core features you’d expect from a managed switch — plus a little extra control. Instead of just throwing packets around, it lets you shape and manage traffic, apply filters, and configure VLANs, all from a simple web interface in your browser.
The SFP+ slots support both 1.25 Gb SFP modules and 10 Gb SFP+ modules, giving you flexibility to build fiber links or uplinks as needed. The device comes with the operating system preinstalled and licensed, so there’s no extra software to buy — it’s ready to use right out of the box. Free SwOS updates are included for the life of the product or for at least 5 years from purchase.
Key Features of the CSS326‑24G‑2S+RM
#1 Hardware Overview
The switch has 24 Gigabit Ethernet ports and two SFP+ slots for 10G fiber uplinks — all in a standard 1U rackmount chassis, making it a solid choice for small to medium racks.
#2 Switching and Management
Powered by MikroTik’s SwOS, this switch does more than basic switching. SwOS lets you manage port-to-port forwarding, apply MAC filters, configure VLANs, mirror traffic for troubleshooting, limit bandwidth on ports, and even tweak some MAC and IP header fields — all through your browser.
#3 Fiber Flexibility
Both SFP+ slots accept standard 1.25 Gb SFP modules and 10 Gb SFP+ modules, so you can mix traditional fiber optics with high-speed uplinks as needed.

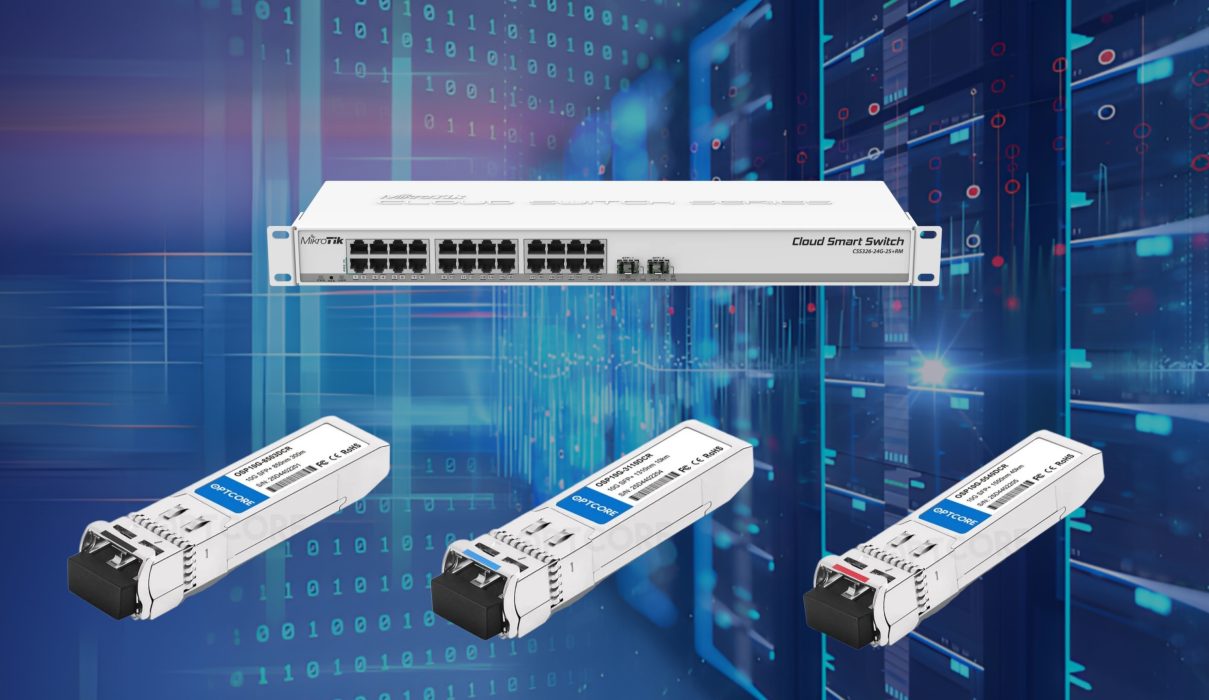

Compatible with MikroTik CSS326-24G-2S+RM
To ensure stable operation of the CSS326-24G-2S+RM over fiber links, compatible SFP modules and patch cords are essential. Many of our products are compatible with the CSS326-24G-2S+RM. The following list is provided for your reference.
| Part Number | Description |
| 1G SFP Module | |
| S-RJ01 | MikroTik S-RJ01 Compatible RJ45 SFP 10/100/1000M Copper Module |
| S-85DLC05D | MikroTik S-85DLC05D Compatible 1.25G Multimode 550m DDM SFP Transceiver |
| S-31DLC20D | MikroTik S-31DLC20D Compatible 1.25G Single Mode 20km DDM SFP Transceiver |
| S-31DLC40D | MikroTik S-31DLC40D Compatible 1.25G Single Mode 40km DDM SFP Transceiver |
| S-55DLC80D | MikroTik S-55DLC80D Compatible 1.25G Single Mode 80km DDM SFP Transceiver |
| S-3553LC20D | MikroTik S-35LC20D Compatible 1000BASE-BX SFP BiDi 1310nm-TX/1550nm-RX 20km Transceiver |
| S-35LC20D | MikroTik S-35LC20D Compatible 1G BiDi SFP 1310nm-TX/1550nm-RX 20km Transceiver |
| S-53LC20D | MikroTik S-53LC20D Compatible 1G BiDi SFP 1550nm-TX/1310nm-RX 20km Transceiver |
| S-35LC40D | MikroTik S-35LC40D Compatible 1G BiDi SFP 1310nm-TX/1550nm-RX 40km Transceiver |
| S-53LC40D | MikroTik S-53LC40D Compatible 1G BiDi SFP 1550nm-TX/1310nm-RX 40km Transceiver |
| S-45LC80D | MikroTik S-45LC80D Compatible 1G BiDi SFP 1490nm-TX/1550nm-RX 80km Transceiver |
| S-54LC80D | MikroTik S-54LC80D Compatible 1G BiDi SFP 1550nm-TX/1490nm-RX 80km Transceiver |
| 10G SFP+ Module | |
| S+RJ10 | MikroTik S+RJ10 Compatible 10GBASE-T SFP+ RJ45 30m Transceiver Module |
| S+85DLC03D | MikroTik S+85DLC03D Compatible 10G SFP+ SR Transceiver Module |
| S+31DLC10D | MikroTik S+31DLC10D Compatible 10G SFP+ LR Transceiver Module |
| S+55DLC40D | MikroTik S+55DLC40D Compatible 10G SFP+ ER Transceiver Module |
| S+55DLC80D | MikroTik S+55DLC80D Compatible 10G SFP+ ZR Transceiver Module |
| S+2332LC10D | MikroTik S+2332LC10D Compatible 10G BiDi SFP+ LR Transceiver Module kit |
| S+23LC10D | MikroTik S+23LC10D Compatible 10GBASE-BX10-U BiDi SFP+ 10km Transceiver Module |
| S+32LC10D | MikroTik S+32LC10D Compatible 10GBASE-BX10-D BiDi SFP+ 10km Transceiver Module |
| S+23LC20D | MikroTik S+23LC20D Compatible 10G SFP+ BiDi 1270nm-TX/1330nm-RX 20km Transceiver |
| S+32LC20D | MikroTik S+32LC20D Compatible 10G SFP+ BiDi 1330nm-TX/1270nm-RX 20km Transceiver |
| S+23LC40D | MikroTik S+23LC40D Compatible 10GBASE-BX40-U BiDi SFP+ 40km Transceiver Module |
| S+32LC40D | MikroTik S+32LC40D Compatible 10GBASE-BX40-D BiDi SFP+ 40km Transceiver Module |
| S+23LC60D | MikroTik S+23LC60D Compatible 10GBASE-BX60-U BiDi SFP+ 60km Transceiver Module |
| S+32LC60D | MikroTik S+32LC60D Compatible 10GBASE-BX60-D BiDi SFP+ 60km Transceiver Module |
| S+45LC80D | MikroTik S+45LC80D Compatible 10G SFP+ BiDi 1490nm-TX/1550nm-RX 80km Transceiver |
| S+54LC80D | MikroTik S+54LC80D Compatible 10G SFP+ BiDi 1550nm-TX/1490nm-RX 80km Transceiver |
| 10G SFP+ DAC Cable | |
| S+DA0001 | MikroTik S+DA0001 Compatible 1m 10G SFP+ Direct Attach Cable |
| S+DA0003 | MikroTik S+DA0003 Compatible 3m 10G SFP+ Direct Attach Cable |
| 10G SFP+ AOC Cable | |
| S+AO0001 | MikroTik S+AO0001 SFP+ Active Optical Cable, 1m |
| S+AO0003 | MikroTik S+AO0003 SFP+ Active Optical Cable, 3m |
| S+AO0005 | MikroTik S+AO0005 SFP+ Active Optical Cable, 5m |
| S+AO0010 | MikroTik S+AO0010 SFP+ Active Optical Cable, 10m |
| 10G SFP+ CWDM Module | |
| S+C47DLC10D | MikroTik S+C47DLC10D Compatible SFP+ CWDM Module 10G SM 10km 1470nm DDM |
| S+C49DLC10D | MikroTik S+C47DLC10D Compatible SFP+ CWDM Module 10G SM 10km 1490nm DDM |
| S+C51DLC10D | MikroTik S+C47DLC10D Compatible SFP+ CWDM Module 10G SM 10km 1510nm DDM |
| S+C53DLC10D | MikroTik S+C47DLC10D Compatible SFP+ CWDM Module 10G SM 10km 1530nm DDM |
| S+C55DLC10D | MikroTik S+C47DLC10D Compatible SFP+ CWDM Module 10G SM 10km 1550nm DDM |
| S+C57DLC10D | MikroTik S+C47DLC10D Compatible SFP+ CWDM Module 10G SM 10km 1570nm DDM |
| S+C59DLC10D | MikroTik S+C47DLC10D Compatible SFP+ CWDM Module 10G SM 10km 1590nm DDM |
| S+C61DLC10D | MikroTik S+C47DLC10D Compatible SFP+ CWDM Module 10G SM 10km 1610nm DDM |
Conclusion
Compared with switches like the Ubiquiti UniFi US-24-250W, the CSS326-24G-2S+RM feels more relaxed when traffic gets busy, and the extra 10G SFP+ ports give you more room to play with fiber links. You can choose different optics for uplinks instead of being locked into one setup.
Overall, this is a simple two-layer switch. It’s about stable switching, simple SwOS management, and flexible fiber connections. Nothing fancy, but everything works as expected. If you’re looking for full Layer-3 features or a big controller system, models like Cisco Catalyst or Juniper EX make more sense. But for everyday use with Gigabit ports and a bit of 10G fiber, the CSS326-24G-2S+RM is an easy and practical choice.
