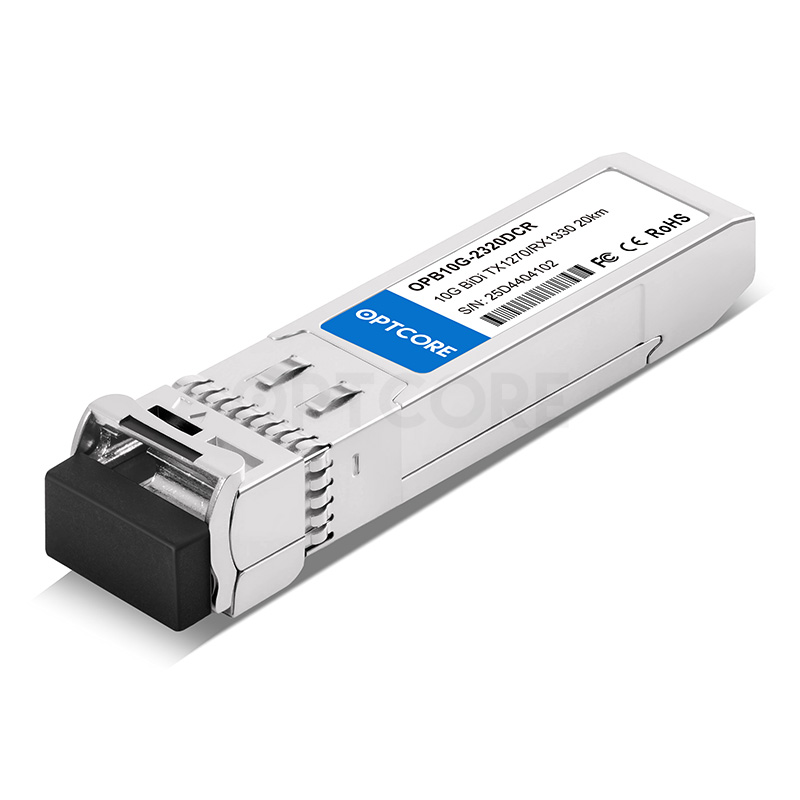

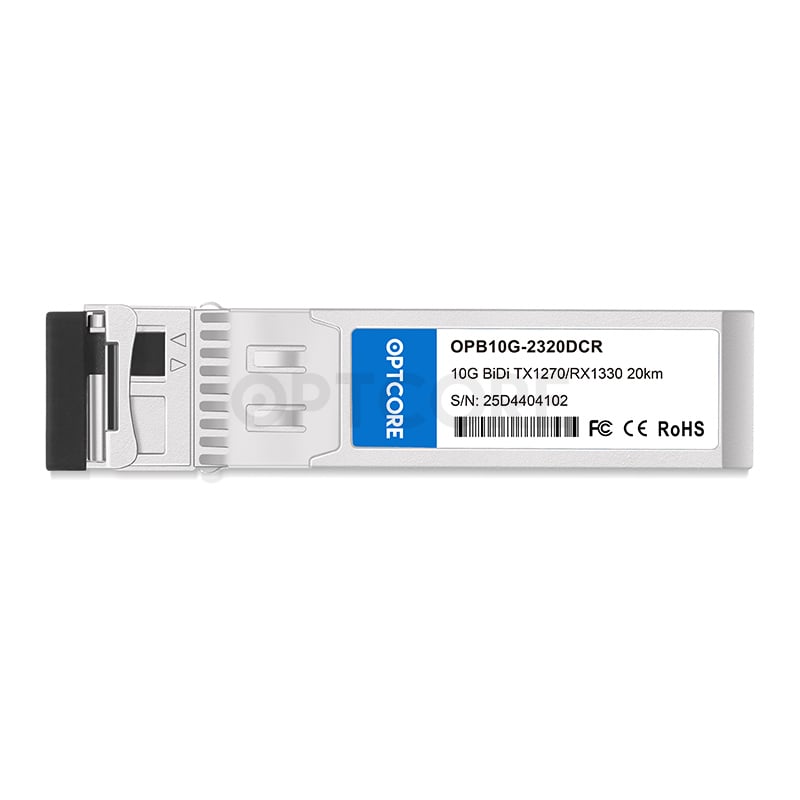

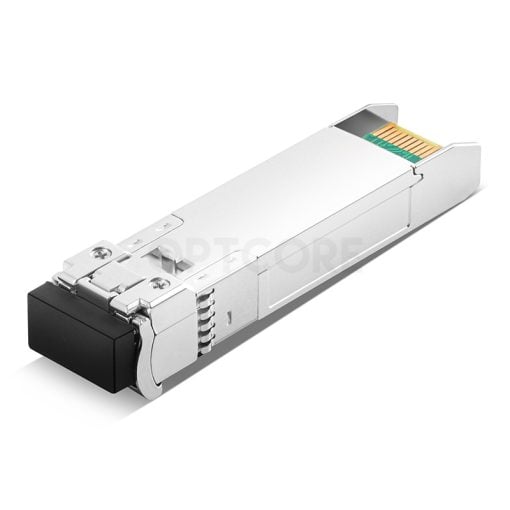

MikroTik S+23LC20D Compatible 10GBASE-BX20-U BiDi SFP+ Transceiver (SMF, 1270nm-TX/1330nm-RX, 20km, LC, DOM)
This 10G BiDi SFP+ transceiver module is equivalent to MikroTik S+23LC20D 10GBASE-BX20 SFP+ Transceiver. This Bi-Directional SFP+ transceiver is designed for 10-Gigabit Ethernet links up to 20km over a single-strand Single Mode fiber. This BiDi SFP+ module is programmed to work with a wide range of MikroTik 10 Gigabit Ethernet (10 GbE) Switches, Routers, Network Interface Cards (NICs), NAS and 10G Media Converters. It provides an ideal replacement to high-cost MikroTik 10G BiDi SFP+ 20km transceiver.
Features
• Functionally identical to MikroTik S+23LC20D SFP+ BiDi transceiver
• 10Gb/s serial optical interface compliant to 802.3ae
• Distance up to 20km on single-mode fiber
• Built-in digital diagnostic functions
• Single 3.3V power supply
• Metal enclosure, for lower EMI
• ROHS compliant and lead-free
Specification
| OEM Part Number | S+23LC20D (S+2332LC20D) | Optcore Part Number | OPB10G-2320DCR-MIK |
| Form Factor | SFP+ BiDi | Data Rate | 10Gb/s |
| Wavelength | 1270nm-TX/1330nm-RX | Fiber Type | SMF |
| Max Distance | 20 km | Optical Components | DFB/PIN |
| Transmitter Power | -3 ~ +3 dBm | Extinction ratio | > 3.5 dB |
| Receiver Sensitivity | < -14.4 dBm | Receiver Overload | > 0.5 dBm |

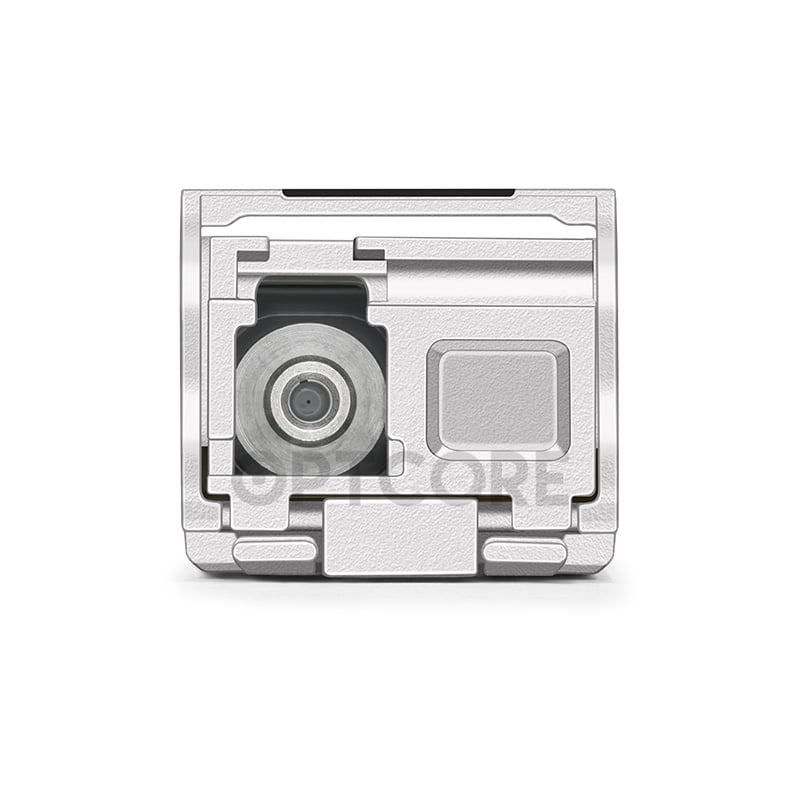

| Connector | LC Simplex | Digital Diagnostic Monitoring | Yes |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.03 kg |
| Application | 10GBASE-BX20 WDM Ethernet 10G Fibre Channel 10G Data Center Switches and Routers |
Compliance | IEC/EN 61000-4-2, IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS |
Compatibility
Download
Note: All trademarks, products and company names mentioned are the property of their respective owners and are used for comparative purposes only. This product is NOT certified or endorsed by MikroTik.
| Weight | 0.03 kg |
|---|
