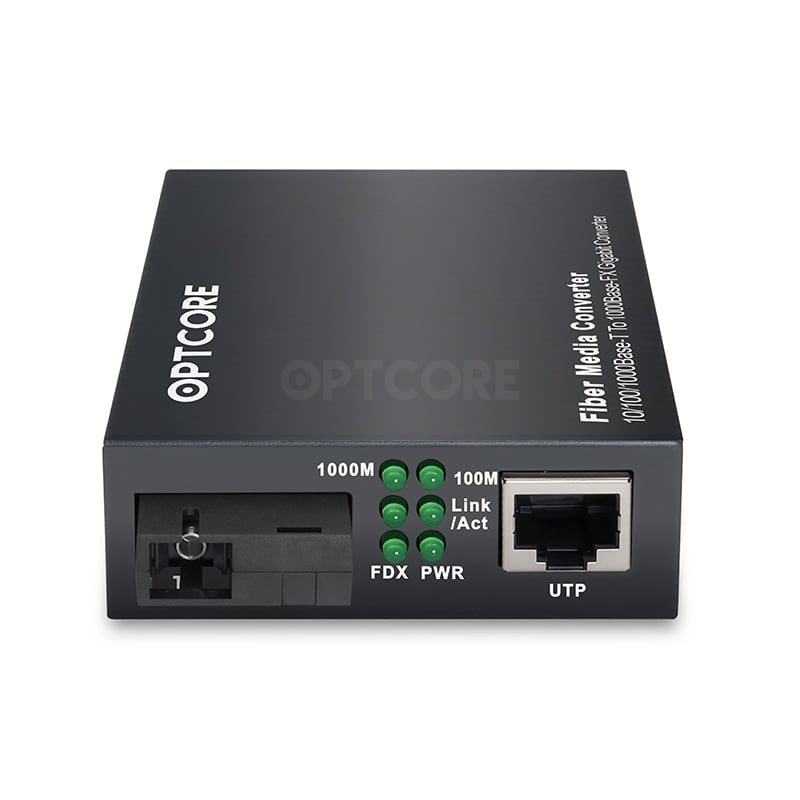

10/100/1000Base-T RJ45 to 1000Base-BX 20km Single Fiber WDM Media Converter (SC/ST/FC)
Price range: US$ 15.00 through US$ 16.00 (Excl. VAT)
Converts and Extends 10/100/1000Base-T RJ45 Ethernet to 1000Base-BX SC/ST/FC 20km fiber optic, Plug-and-Play Ethernet-to-Fiber media converter for simple installation.
Similar Model:
1x RJ45 to 1x SFP 1x RJ45 to 1x SFP | 0.5km 1x RJ45 to 1x SFP | 20km 1x RJ45 to 1x SFP | 40km 1x RJ45 to 1x SFP | 80km 2x RJ45 to 1x SFP 4x RJ45 to 1x SFP 8x RJ45 to 1x SFP 4x RJ45 to 2x SFP 1x RJ45 to 1x SC/ST/FC | 0.5km 1x RJ45 to 1x SC/ST/FC | 20km 1x RJ45 to 1x SC/ST/FC | 40km 1x RJ45 to 1x SC/ST/FC | 80km 1x RJ45 to 1x SC/ST/FC | 100km 1x RJ45 to 1x SC/ST/FC | WDM 20km 1x RJ45 to 1x SC/ST/FC | WDM 40km 1x RJ45 to 1x SC/ST/FC | WDM 80km
Category:
100M Media Converter 1G Media Converter 10G Media Converter PoE Media Converter Media Converter Chassis
10/100/1000Base-T RJ45 Ethernet (100m/328ft) to 1000Base-BX Single Fiber Media Converter (SC/ST/FC, 20km/12.4mi)
The MC-GSB11-x20x Series is a gigabit Ethernet media converter that converts 10/100/1000BASE-T copper to 1000BASE-BX single fiber. This fiber media converter uses Wavelength-Division Multiplexing (WDM) technology, enabling Bi-Directional (BiDi) communication over a single fiber and doubling the capacity of your existing fiber infrastructure network without installing new cabling.
The MC-GSB11-x20x series WDM media converter supports a 20km (12.4 miles) transmit distance over a single fiber at the wavelength of 1310nm-TX/1550nm-RX (MC-GSB11-A20x) or 1550nm-TX/1310nm-RX (MC-GSB11-B20x). It provides SC, ST, and FC connector options for different users. This single fiber WDM media converter is suitable for long network connectivity between servers, network switches, and other converters.
The MC-GSB11-x20x is manufactured with the latest IC packages from the USA or Taiwan and a high-quality fiber optical transceiver, which provides good electrical characteristics to ensure reliable data transmission and long working life. 6 Group LED indicated lights could fully monitor the working conditions of the media converter. It is easy for end-users to observe network operations. This WDM media converter provides external power as default. It can be as a stand-alone unit or inserted into Optcore’s low-cost 14-slot Media Converter Rack Chassis (MC-RACK-14) that allows all the media converters to be powered by a single internal power supply.
Features
• Cost-effective migration from Gigabit copper to Gigabit fiber
• Auto-negotiation function allows UTP ports to auto-select 10/100/1000M and Full Duplex or Half Duplex
• The UTP port supports the connection of MDI/MDI-X auto crossover
• Multiple fiber ports could be chosen: SC, ST, or FC
• Adopts WDM technology, transmitting and receiving data on a single fiber
• The single strand of Singlemode Fiber: the max distance up to 20km
• Supporting flow control
• Easy-to-view LED indicators to provide status to monitor network activity easily
• Compacts size for easy installation and working with Optcore 14-slot Rack-mount Chassis(MC-RACK-14)
• ROHS-compliant and Lead-Free
Specification
| Product Series | WDM Fiber Media Converter | Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3z |
| Ports | 1 x 10/100/1000BASE-T RJ45 port 1 x 1000BASE-BX SC port (ST or FC also available) |
Network Media | 10/100/1000Base-T: Cat 5 UTP (maximum 100m) 1000Base-BX: Singlemode Fiber Cable (maximum 20km) |
| Flow control | Full Duplex: IEEE802.3x Half Duplex: back pressure |
LED indicator | POWER (power) FX LINK (fiber link action) TP LINK1000 (twisted pair connection 1000M) TP LINK100 (twisted pair connection 100M) TP ACT (twisted pair packet forwarding action) FDX (Ethernet interface mode indicator, ON Full duplex/OFF: Half-duplex) |
| Buffer space | 256 KB | MAC address | 4K |
| Wavelength | Side A: 1310nm-TX/1550nm-RX Side B: 1550nm-TX/1310nm-RX |
Fiber Type | Single Fiber |
| Transmitter Power | -9 ~ -3 dBm | Receiver Sensitivity | < -22 dBm |
| Power Supply | External Power Adapter Input: AC 100~240V 50/60Hz Output: DC 5V 1A |
Power Consumption | 2.5W |
| Dimensions (WxDxH) | 26×70×93mm | Gross Weight | 0.5 kg |
| Environment | Operating: 0°C to 50°C, 10~90% RH Storage: -40°C to 70°C, 5~90% RH |
Compliance | FDA IEC/EN 60825-1 ROHS, CE |
Ordering Information
| Optcore Part Number | Description |
| MC-GSB11-A20C | 10/100/1000Base-T (RJ-45, 100m/328ft) to 1000Base-BX 1310nm-TX/1550nm-RX Single Fiber WDM Media Converter (SC, 20km/12.4mi) |
| MC-GSB11-A20T | 10/100/1000Base-T (RJ-45, 100m/328ft) to 1000Base-BX 1310nm-TX/1550nm-RX Single Fiber WDM Media Converter (ST, 20km/12.4mi) |
| MC-GSB11-A20F | 10/100/1000Base-T (RJ-45, 100m/328ft) to 1000Base-BX 1310nm-TX/1550nm-RX Single Fiber WDM Media Converter (FC, 20km/12.4mi) |
| MC-GSB11-B20C | 10/100/1000Base-T (RJ-45, 100m/328ft) to 1000Base-BX 1550nm-TX/1310nm-RX Single Fiber WDM Media Converter (SC, 20km/12.4mi) |
| MC-GSB11-B20T | 10/100/1000Base-T (RJ-45, 100m/328ft) to 1000Base-BX 1550nm-TX/1310nm-RX Single Fiber WDM Media Converter (ST, 20km/12.4mi) |
| MC-GSB11-B20F | 10/100/1000Base-T (RJ-45, 100m/328ft) to 1000Base-BX 1550nm-TX/1310nm-RX Single Fiber WDM Media Converter (FC, 20km/12.4mi) |
Note: To order the corresponding country-specific power supply, add the extension from the list below to the end of the model.
For example: MC-GSB11-A20C-EU, -EU = Country Code (EU = Europe, US = North America, UK = United Kingdom, SA = South Africa, CN = China)
