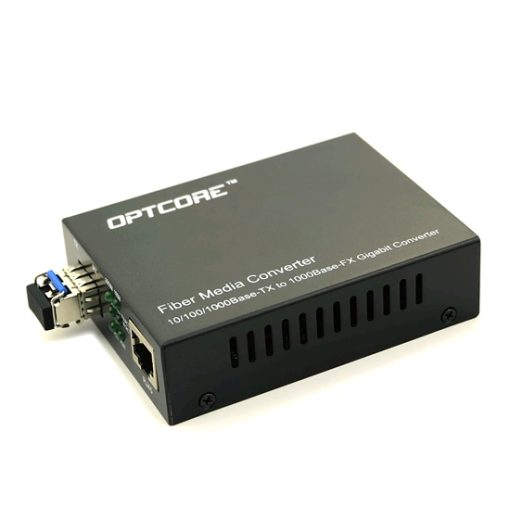

10/100/1000Base-T RJ45 to 1000Base-LX SFP 1310nm 20km LC Singlemode Fiber Media Converter
US$ 16.00 (Excl. VAT)
Good quality 10/100/1000Base-T to 1000Base-LX SFP Fiber Media Converter (SMF, 1310nm, 20km, Dual LC).
Similar Model:
1x RJ45 to 1x SFP 1x RJ45 to 1x SFP | 0.5km 1x RJ45 to 1x SFP | 20km 1x RJ45 to 1x SFP | 40km 1x RJ45 to 1x SFP | 80km 2x RJ45 to 1x SFP 4x RJ45 to 1x SFP 8x RJ45 to 1x SFP 4x RJ45 to 2x SFP 1x RJ45 to 1x SC/ST/FC | 0.5km 1x RJ45 to 1x SC/ST/FC | 20km 1x RJ45 to 1x SC/ST/FC | 40km 1x RJ45 to 1x SC/ST/FC | 80km 1x RJ45 to 1x SC/ST/FC | 100km 1x RJ45 to 1x SC/ST/FC | WDM 20km 1x RJ45 to 1x SC/ST/FC | WDM 40km 1x RJ45 to 1x SC/ST/FC | WDM 80km
Category:
100M Media Converter 1G Media Converter 10G Media Converter PoE Media Converter Media Converter Chassis
1x 10/100/1000Base-T RJ45 Ethernet to 1x 1000Base-ZX SFP Fiber Media Converter (SMF, 1310nm, 20km, Dual LC)
The MC-GSA11-L-SM20KM is a Gigabit SFP media converter designed to convert 10/100/1000BASE-T RJ45 copper to 1000BASE-LX LC fiber optic. It includes a 1000BASE-LX SFP Singlemode 1310nm transceiver module and allows you to extend a Gigabit Ethernet network to 20km (12.4 miles) over Singlemode fiber. This LC Singlemode media converter provides external power as default. It can be used as a stand-alone unit or slide-in module when inserted into Optcore’s low-cost 14-slot Media Converter Rack Chassis(MC-RACK-14) that allows all the fiber media converters to be powered by a single internal power supply.
Features
• Cost-effective migration from Gigabit copper to Gigabit fiber
• Auto-negotiation function allows UTP ports to auto-select 10/100/1000M and Full Duplex or Half Duplex
• The UTP port supports the connection of MDI/MDI-X auto crossover
• Gigabit Open SFP slot to customize the network extension distance to your requirements with any MSA-compliant transceiver
• Supporting flow control
• Easy-to-view LED indicators provide status to monitor network activity easily
• Compacts size for easy installation and working with Optcore 14-Slot Media Converter Rackmount Chassis(MC-RACK-14)
• ROHS-compliant and Lead-Free
Specification
| Product Series | Gigabit SFP Media Converter | Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3z |
| Ports | 1 x 10/100/1000BASE-T RJ45 port 1 x 1000BASE-LX SFP port (Dual LC) |
Network Media | 10/100/1000Base-T: Cat 5 UTP (100m / 328 ft) 1000Base-LX: 9/125um Singlemode Fiber (20km / 12.4mi) |
| Flow control | Full Duplex: IEEE802.3x Half Duplex: back pressure |
LED indicator | POWER (power) FX LINK (fiber link action) TP LINK1000 (twisted pair connection 1000M) TP LINK100 (twisted pair connection 100M) TP ACT (twisted-pair packet forwarding action) FDX (Ethernet interface mode indicator, ON Full duplex/OFF: Half-duplex) |
| Buffer space | 256 KB | MAC address | 4K |
| Wavelength | 1310nm | Fiber Type | Single mode Fiber (SMF) |
| Transmitter Power | -9 ~ -3 dBm | Receiver Sensitivity | < -22 dBm |
| Power Supply | External Power Adapter Input: AC 100~240V 50/60Hz Output: DC 5V 1A |
Power Consumption | 2.5W |
| Dimensions (WxDxH) | 26×70×93mm | Gross Weight | 0.5 kg |
| Environment | Operating: 0°C to 50°C, 10~90% RH Storage: -40°C to 70°C, 5~90% RH |
Compliance | FDA IEC/EN 60825-1 ROHS, CE |
Reference Equipment
OPTCORE’s Gigabit SFP Media Converter can work with the equipment below, providing you with the same high performance at a lower cost to meet your network upgrade needs.
| Manufacturer | Part Number & Description |
| Allied Telesis | AT-GS2002/SP: 10/100/1000T to SFP Gigabit Ethernet Bridging Converter |
| Black Box | LGC200A: Pure Networking Gigabit Fiber Media Converter, 1000-Mbps Copper to 1000-Mbps SFP |
| CTC Union | N/A |
| D-Link | DMC-G01LC: 10/100/1000Base-T To Fiber SFP Media Converter
DMC-805G: Copper to Fiber Gigabit Media Converter, 1 x RJ45 + 1 x Mini-GBIC port |
| L-com | LC-MCGSFP: Ethernet Media Converter 10/100/1000TX RJ45 to Single Gigabit SFP Socket |
| LevelOne | GVT-2000: RJ45 to SFP Gigabit Media Converter |
| Omnitron | N/A |
| Perle | S-1110-SFP: 10/100/1000M SFP Gigabit Ethernet Stand-Alone Media Converter
S-1000-SFP: Gigabit Ethernet Stand-Alone SFP Media Converter |
| Planet | GT-805A: 10/100/1000Base-T to 1000Base-SX/LX Media Converter (mini-GBIC, SFP)-distance depends on SFP module |
| StarTech | MCM1110SFP: Open Gigabit Ethernet Fiber Media Converter Open SFP Slot, Copper to Fiber, Supporting 10/100/1000 Networks |
| TP-Link | MC220L: Gigabit Ethernet Media Converter,1000Mbps RJ45 to 1000BASE-SX/LX/LH Fibre SFP Slot |
| Transition Networks | SGFEB1040-330: Stand-Alone 10/100/1000 SFP Ethernet Media and Rate Converter |
| TRENDnet | TFC-1000MGA: 100/1000BASE-T to SFP Media Converter
TFC-GSFP: 1000BASE-T to SFP Fiber Media Converter |
Power Adapter: To order the corresponding country-specific power supply, add the extension from the list below to the end of the model.
For example: MC-GSA11-L-EU, -EU = Country Code (EU = Europe, US = North America, UK = United Kingdom, SA = South Africa, CN = China)
Ordering Information
| Optcore Part Number | Description |
| MC-GSA11-L-SM20KM (MC-GSA11-L+OSP1250-3120DCR) |
1x 10/100/1000Base-T RJ45 to 1x 1000Base-LX SFP Fiber Media Converter (SMF, 1310nm, 20km, Dual LC) |
The SFP media converter supports the SFP transceiver below. Click the P/N to learn more detailed information.
| Optcore Part Number | Description |
| OSP1250-8505DCR | 1000BASE-SX SFP Transceiver, Multimode, 850nm, 550m, LC, DDM, 0ºC~+70ºC |
| OSP1250-3120DCR | 1000BASE-LX SFP Transceiver, Singlemode, 1310nm, 20km, LC, DDM, 0ºC~+70ºC |
| OSP1250-3140DCR | 1000BASE-EX SFP Transceiver, Singlemode, 1310nm, 40km, LC, DDM, 0ºC~+70ºC |
| OSP1250-5580DCR | 1000BASE-ZX SFP Transceiver, Singlemode, 1550nm, 80km, LC, DDM, 0ºC~+70ºC |
| OSP1250-55A2DCR | 1000BASE-EZX SFP Transceiver, Singlemode, 1550nm, 120km, LC, DDM, 0ºC~+70ºC |
| OSP1250-55A6DCR | 1000BASE-EZX SFP Transceiver, Singlemode, 1550nm, 150km~160km, LC, DDM, 0ºC~+70ºC |
| OPB1250-353DCR | 1000BASE-BX3-U SFP Transceiver, Singlemode, Tx:1310nm/Rx:1550nm, 3km, LC, DDM, 0ºC~+70ºC |
| OPB1250-533DCR | 1000BASE-BX3-D SFP Transceiver, Singlemode, Tx:1550nm/Rx:1310nm, 3km, LC, DDM, 0ºC~+70ºC |
| OPB1250-3520DCR | 1000BASE-BX20-U SFP Transceiver, Singlemode, Tx:1310nm/Rx:1550nm, 20km, LC, DDM, 0ºC~+70ºC |
| OPB1250-5320DCR | 1000BASE-BX20-D SFP Transceiver, Singlemode, Tx:1550nm/Rx:1310nm, 20km, LC, DDM, 0ºC~+70ºC |
| OPB1250-3520SDCR | 1000BASE-BX20-U SFP Transceiver, Singlemode, Tx:1310nm/Rx:1550nm, 20km, SC, DDM, 0ºC~+70ºC |
| OPB1250-5320SDCR | 1000BASE-BX20-D SFP Transceiver, Singlemode, Tx:1550nm/Rx:1310nm, 20km, SC, DDM, 0ºC~+70ºC |
| OPB1250-3540DCR | 1000BASE-BX40-U SFP Transceiver, Singlemode, Tx:1310nm/Rx:1550nm, 40km, LC, DDM, 0ºC~+70ºC |
| OPB1250-5340DCR | 1000BASE-BX40-D SFP Transceiver, Singlemode, Tx:1550nm/Rx:1310nm, 40km, LC, DDM, 0ºC~+70ºC |
| OPB1250-4580DCR | 1000BASE-BX80-U SFP Transceiver, Singlemode, Tx:1490nm/Rx:1550nm, 80km, LC, DDM, 0ºC~+70ºC |
| OPB1250-5480DCR | 1000BASE-BX80-D SFP Transceiver, Singlemode, Tx:1550nm/Rx:1490nm, 80km, LC, DDM, 0ºC~+70ºC |
| OPB1250-45A2DCR | 1000BASE-BX120-U SFP Transceiver, Singlemode, Tx:1490nm/Rx:1550nm, 120km, LC, DDM, 0ºC~+70ºC |
| OPB1250-54A2DCR | 1000BASE-BX120-D SFP Transceiver, Singlemode, Tx:1550nm/Rx:1490nm, 120km, LC, DDM, 0ºC~+70ºC |
| OPB1250-45A6DCR | 1000BASE-BX160-U SFP Transceiver, Singlemode, Tx:1490nm/Rx:1550nm, 150km~160km, LC, DDM, 0ºC~+70ºC |
| OPB1250-54A6DCR | 1000BASE-BX160-D SFP Transceiver, Singlemode, Tx:1550nm/Rx:1490nm, 150km~160km, LC, DDM, 0ºC~+70ºC |
Download
Note: All trademarks, products and company names mentioned are the property of their respective owners and are used for comparative purposes only.
