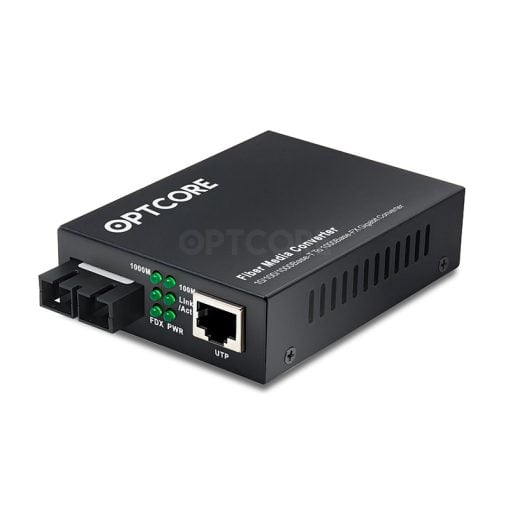

10/100/1000Base-T RJ45 to 1000Base-ZX Singlemode 80km Fiber Media Converter (SC/ST/FC)
US$ 29.90 (Excl. VAT)
Good quality 10/100/1000Base-T to 1000Base-ZX Fiber Media Converter (Singlemode, 1550nm, 80km, 1x RJ-45 + 1x SC/ST/FC).
Similar Model:
1x RJ45 to 1x SFP 1x RJ45 to 1x SFP | 0.5km 1x RJ45 to 1x SFP | 20km 1x RJ45 to 1x SFP | 40km 1x RJ45 to 1x SFP | 80km 2x RJ45 to 1x SFP 4x RJ45 to 1x SFP 8x RJ45 to 1x SFP 4x RJ45 to 2x SFP 1x RJ45 to 1x SC/ST/FC | 0.5km 1x RJ45 to 1x SC/ST/FC | 20km 1x RJ45 to 1x SC/ST/FC | 40km 1x RJ45 to 1x SC/ST/FC | 80km 1x RJ45 to 1x SC/ST/FC | 100km 1x RJ45 to 1x SC/ST/FC | WDM 20km 1x RJ45 to 1x SC/ST/FC | WDM 40km 1x RJ45 to 1x SC/ST/FC | WDM 80km
Category:
100M Media Converter 1G Media Converter 10G Media Converter PoE Media Converter Media Converter Chassis
10/100/1000Base-T RJ45 Ethernet (100m/328ft) to 1000Base-ZX Singlemode 1550nm Fiber Media Converter (SC/ST/FC, 80km/49.7mi)
The MC-GSA11-80x Series is a Gigabit Ethernet Media Converter designed to convert 10/100/1000BASE-T copper to 1000BASE-ZX fiber optic. The Gigabit Ethernet media converter extends the distance of your network by interconnecting LAN devices that are physically separated by large distances, which provides you with a simple and very cost-effective solution for connecting Gigabit Ethernet LANs over fiber optic. The MC-GSA11-80x series offers an 80 km(49.7 miles) transmit distance over Singlemode fiber at the wavelength of 1310nm. It provides SC, ST, and FC connector options for different users.
Manufactured with the latest IC from the USA or Taiwan and a high-quality fiber optical transceiver, our Gigabit Ethernet Media Converter provides good electrical characteristics to ensure reliable data transmission and long working life. 6 Group LED indicated lights could fully monitor the working conditions of Media Converters, which makes it easy for end-users to observe and diagnose the failure of network operation. This Gigabit Ethernet media converter provides external power as default; it can be used as a stand-alone unit or inserted into Optcore’s low-cost 14-slot Media Converter Rack Chassis (MC-RACK-14) that allows all the media converters to be powered by a single internal power supply.
Features
• Cost-effective migration from Gigabit copper to Gigabit fiber
• Auto-negotiation function allows UTP ports to auto-select 10/100/1000M and Full Duplex or Half Duplex
• The UTP port supports the connection of MDI/MDI-X auto crossover
• Multiple fiber ports could be chosen: SC, ST, or FC
• Singlemode Fiber: the max distance up to 80km
• Supporting flow control
• Easy-to-view LED indicators provide status to monitor network activity easily
• Compacts size for easy installation and working with Optcore 14-slot Rack-mount Chassis(MC-RACK-14)
• ROHS-compliant and Lead-Free
Specification
| Product Series | Fiber Media Converter | Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3z |
| Ports | 1 x 10/100/1000BASE-T RJ45 port 1 x 1000BASE-X SC port (ST or FC also available) |
Network Media | 10/100/1000Base-T: Cat 5 UTP (maximum 100m) 1000Base-ZX: Singlemode Fiber Cable (maximum 80km) |
| Flow control | Full Duplex: IEEE802.3x Half Duplex: back pressure |

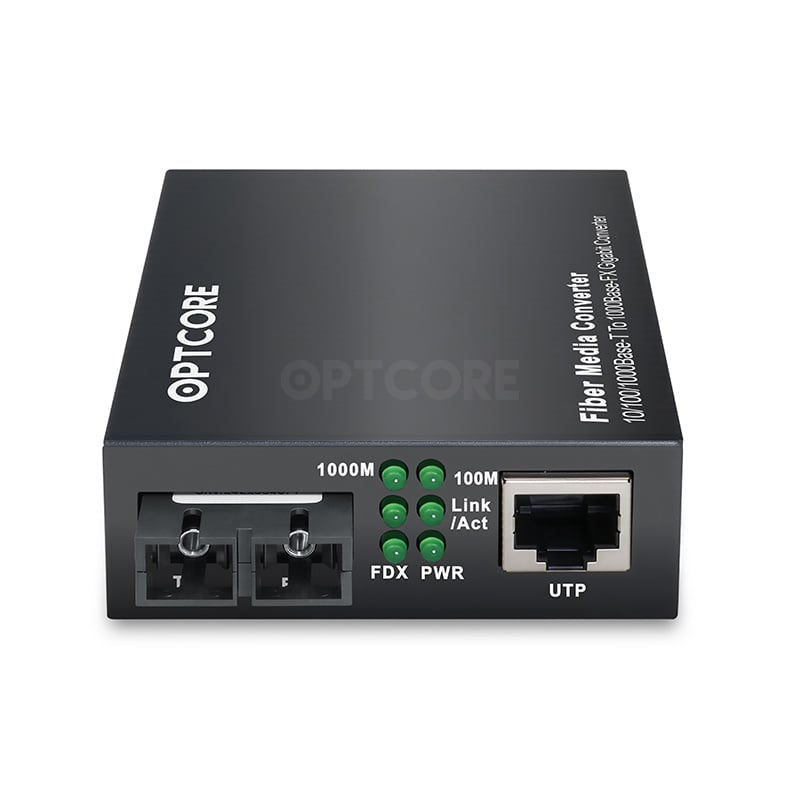

LED indicator | POWER (power) FX LINK (fiber link action) TP LINK1000 (twisted pair connection 1000M) TP LINK100 (twisted pair connection 100M) TP ACT (twisted pair packet forwarding action) FDX (Ethernet interface mode indicator, ON Full duplex/OFF: Half duplex) |
| Buffer space | 256 KB | MAC address | 4K |
| Wavelength | 1550 nm | Fiber Type | Singlemode Fiber |
| Transmitter Power | -2 ~ 3 dBm | Receiver Sensitivity | < -26 dBm |

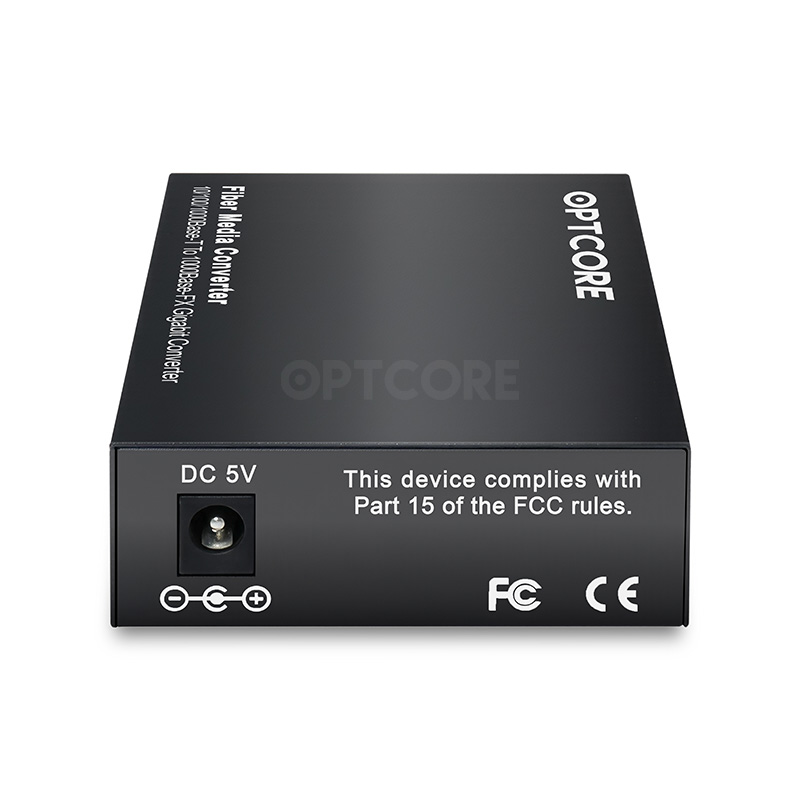

| Power Supply | External Power Adapter Input: AC 100~240V 50/60Hz Output: DC 5V 1A |
Power Consumption | 2.5W |
| Dimensions (WxDxH) | 26×70×93mm | Gross Weight | 0.5 kg |
| Environment | Operating: 0°C to 50°C, 10~90% RH Storage: -40°C to 70°C, 5~90% RH |
Compliance | FDA IEC/EN 60825-1 ROHS, CE |
Ordering Information
| Optcore Part Number | Description |
| MC-GSA11-80C | 10/100/1000Base-T to 1000Base-ZX Singlemode 1550nm 80km Fiber Media Converter (SC) |
| MC-GSA11-80T | 10/100/1000Base-T to 1000Base-ZX Singlemode 1550nm 80km Fiber Media Converter (ST) |
| MC-GSA11-80F | 10/100/1000Base-T to 1000Base-ZX Singlemode 1550nm 80km Fiber Media Converter (FC) |
Note: To order the corresponding country-specific power supply, add the extension from the list below to the end of the model.
For example: MC-GSA11-80C-EU, -EU = Country Code (EU = Europe, US = North America, UK = United Kingdom, SA = South Africa, CN = China)
