Alcatel-Lucent XFP-10G-LR Compatible 10GBASE-LR 1310nm 10km XFP Transceiver

Alcatel-Lucent XFP-10G-LR Compatible 10GBASE-LR SMF 1310nm 10km XFP Transceiver

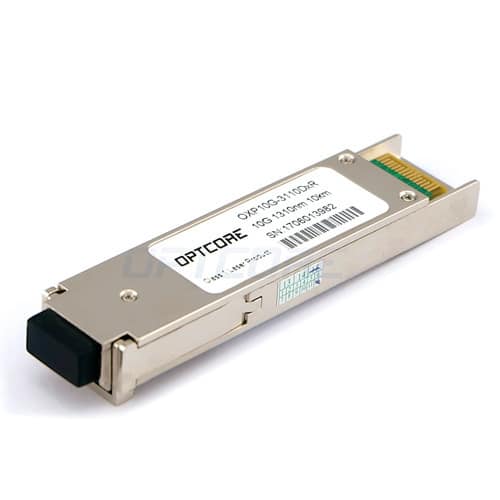

Optcore’s OXP10G-3110DCR-ALU is an XFP transceiver module for 9.95Gbps to 11.1Gbps data transmission applications. The transceiver is compliant with the current XFP Multi-Source Agreement (MSA) Specification,10-Gigabit Ethernet 10GBASE-LR/LW per IEEE 802.3ae and 10G Fiber Channel 1200-SM-LL-L. It provides 10-Gigabit connectivity up to 10km on single mode fiber (SMF) at 1310nm. The XFP transceiver also provides a unique enhanced digital diagnostic monitoring interface(DDMI) per SFF-8472. It is a Class 1 laser product complies with FDA/CDRH and IEC-60825 standards.

Additionally, the OXP10G-3110DCR-ALU XFP transceiver is programmed to be compatible with a wide range of Alcatel-Lucent network equipment such as 10 Gigabit Ethernet (10 GbE) Switches, Routers, Network Interface Cards (NICs) and SAN storage devices. It is an ideal equivalent to high-cost Alcatel-Lucent XFP-10G-LR module.

Features

• Hot-pluggable XFP footprint
• Supports 9.95Gbps to 11.1Gbps bit rates
• Compliant with IEEE 802.3ae 10GBASE-LR/LW
• Uncooled 1310nm DFB transmitter, PIN photo-detector
• Distance up to 10km on single mode fiber
• Duplex LC connector
• Built-in digital diagnostic functions
• Single 3.3V power supply
• Very low EMI and excellent ESD protection
• ROHS compliant and lead-free

Specification

Download

Spec / Datasheet

Note: All trademarks, products and company names mentioned are the property of their respective owners and are used for comparative purposes only. This product is NOT certified or endorsed Alcatel-Lucent.
