10Gb/s XFP BiDi 1270nm-TX/1330nm-RX 40km Transceiver
US$ 129.00 (Excl. VAT)
Good quality 10Gb/s XFP BiDi Transceiver Module (SMF, 1270nm-TX/1330nm-RX, 40km, LC, DDM).

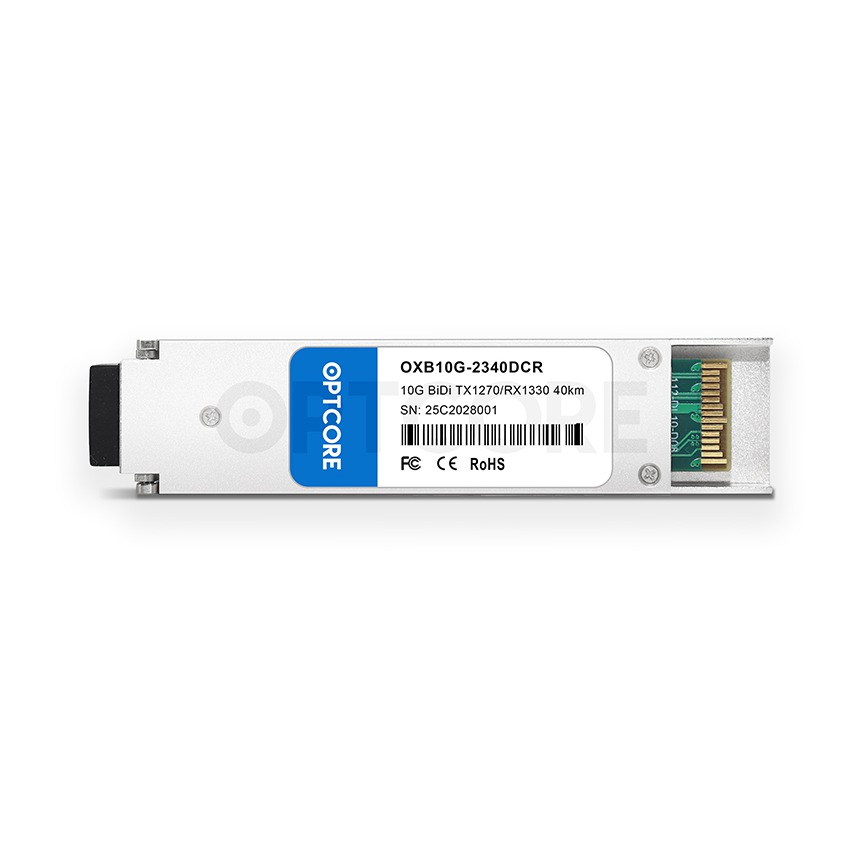

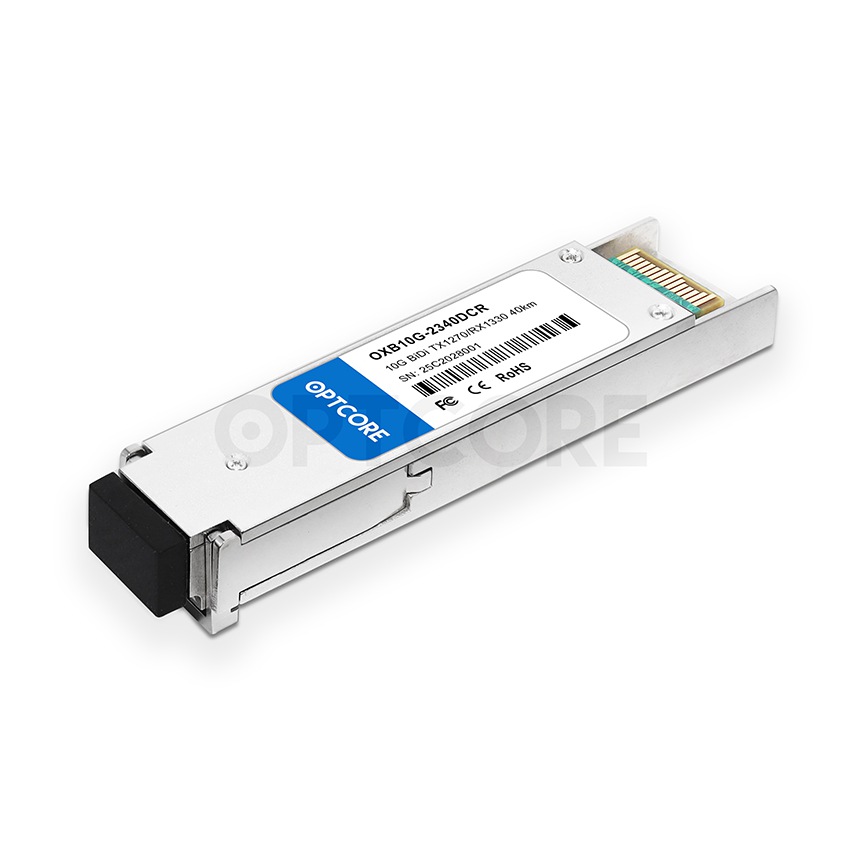

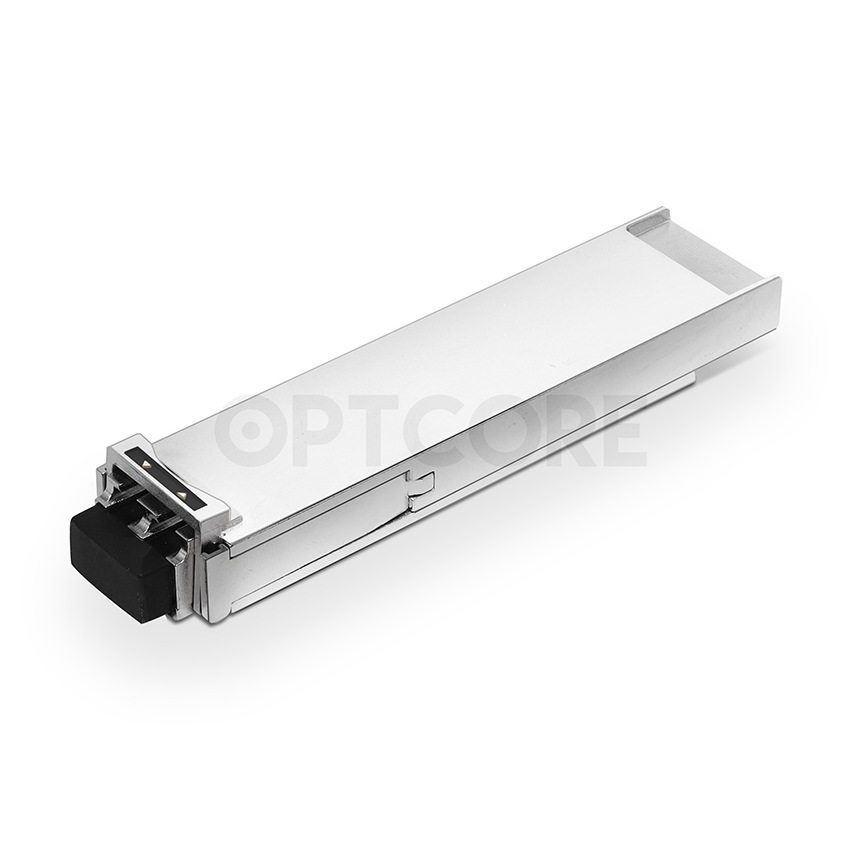

10Gb/s XFP BiDi 1270nm-TX/1330nm-RX 40km Optical Transceiver Module
Optcore’s OXB10G-2340DCR is hot pluggable XFP Bi-Directional transceiver module, which is designed for 10Gb/s duplex optical data communications application. The XFP BiDi module features a highly reliable 1270nm DFB transmitter and 1330nm PIN photo-detector into single LC optical connector, which provides 40km link distance over single-strand single mode fiber.
This XFP BiDi transceiver module also provides digital diagnostic monitoring interface(DDMI), which providing real-time monitoring of the transceiver temperature, laser bias current, optical power, received optical power and transceiver supply voltage. The transceiver module complies with XFP MSA Rev 4.5 specifications, 10 Gigabit Ethernet specifications (10GBASE-ER/EW per IEEE 802.3ae ), and 10G Fibre Channel. The transceiver is also a Class 1 laser product complies with FDA/CDRH and IEC-60825 standards.
Features
• Hot-pluggable XFP footprint
• Supports 9.95Gbps to 11.1Gbps bit rates
• Compliant with IEEE 802.3ae
• 1270nm DFB transmitter, 1330nm PIN photo-detector
• Distance up to 40km on single mode fiber
• Single LC connector
• Built-in digital diagnostic functions
• Single 3.3V power supply
• No Reference Clock required
• Very low EMI and excellent ESD protection
• ROHS compliant and lead-free
Specification
| Product Series | Fiber Optical Transceiver | Optcore Part Number | OXB10G-2340DCR |
| Form Factor | XFP BiDi | Data Rate | 10 Gb/s |
| Wavelength | TX:1270 nm/RX:1330 nm | Fiber Type | SMF |
| Max Distance | 40 km | Optical Components | DFB/PIN |
| Transmitter Power | 0 ~ 5 dBm | Extinction ratio | > 3.5 dB |
| Receiver Sensitivity | < -15 dBm | Receiver Overload | > 0.5 dBm |
| Connector | LC Simplex | Digital Diagnostic Monitoring | Yes |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.05 kg |
| Application | 10GBASE-ER/10GBASE-EW Ethernet 10G Fiber Channel 10G Data Center Switches and Routers 10G Network interface cards and Fiber Media Converters |
Compliance | IEC/EN 61000-4-2, IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS |
Download
Note: Specifications and product availability are subject to change without notice. Optcore assumes no responsibility for inaccuracies contained herein.
| Weight | 0.05 kg |
|---|
