Transceiver and Cables Options for HP 1810 Switch Series
Oct
HP 1810 Switch Series Overview
The HP 1810 Switch Series appliance is a smart-managed, fixed-configuration Gigabit and Fast Ethernet Layer 2 switch designed for small businesses that look for key features in easy-to-manage solutions. The family includes 8-port and 24-port Gigabit and Fast Ethernet models and 48-port Gigabit switches. Specific models include SFP ports for fiber connections. All of these support flexible deployment options, including on the wall, under tables, or on desktops; some are fanless and suitable for office deployments. The 8-port Gigabit model can be powered by an upstream Power over Ethernet (PoE) switch. Customizable features include VLANs, spanning trees, and link aggregation trunks. The new version is the “version 2” (v2) unit, which includes the latest energy-saving features – energy-efficient Ethernet (EEE) and idle port power-down and Rapid Spanning Tree Protocol (RSTP) and DSCP QoS policies. The HP 1810 Switch Series supports fiber connections for uplinks and other connections across longer distances than what copper cabling can support; “true” SFP ports operate in addition to available copper Ethernet ports, providing a higher total number of available ports vs. “combo” ports which are either a copper or fiber connection.
HP 1810 Switch Series Features
Connectivity
- Auto-MDI/MDIX: automatically adjusts for straight-through or crossover cables on all ports
- Packet storm protection: protects against broadcast, multicast, or unicast storms with user-defined thresholds
- IEEE 802.3af PoE-powered device option: obtains power provided by a standard PoE device connected to Port 1; deploy the switch wherever an Ethernet cable can reach as a power outlet is not needed
Performance
- Half-/full-duplex auto-negotiating capability on every port: doubles the throughput of every port
- Link aggregation (trunking): brings together groups of ports automatically using Link Aggregation Control Protocol (LACP) or, manually, to form an ultra-high-bandwidth connection to the network backbone; helps prevent traffic bottlenecks; the model has four trunks of four links each
Quality of Service (QoS)
- Traffic prioritization (IEEE 802.1p): allows real-time traffic classification with eight priority levels mapped to four queues
- IEEE 802.1p prioritization with DSCP: delivers data from the switch to devices based on the priority and type of traffic using Differentiated Services Code Point (DSCP); available only with v2 switch models
- Broadcast control: allows limitation of broadcast traffic rate to cut down on unwanted network broadcast traffic
Layer 2 switching
- VLAN support and tagging: supports up to 64 port-based VLANs and dynamic configuration of IEEE 802.1Q VLAN tagging, providing security between workgroups
- Jumbo packet support: improves the performance of large data transfers; supports frame size of up to 9220 bytes
HP 1810 Switch Series Models
| Part Number | Description |
| J9802A | HP 1810-8G v2 Switch |

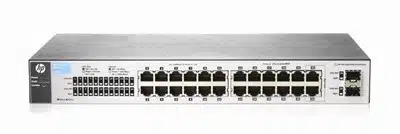

| J9803A | HP 1810-24G v2 Switch |
| J9660A | HP 1810-48G Switch |
| J9800A | HP 1810-8 v2 Switch |
| J9801A | HP 1810-24 v2 Switch |
| J9449A | HP 1810-8G Switch |
| J9450A | HP 1810-24G Switch |
Supported Transceivers and Cables for HP 1810 Switch Series
HP 1810 Switch Series supports 100BASE SFP, 1G SFP and fiber cables. The following tables list the supported transceiver and fiber cable jumpers on the HP 1810 Switch Series. This table will help you to configure the right parts for your HP switches.
| Part Number | Description |
| 100BASE SFP Transceiver Optics | |
| J9054C -C | HP J9054C Compatible X111 100M SFP LC FX Transceiver |
| 1G SFP Transceiver Optics | |
| J8177C -C | HP J8177C Compatible X121 1G SFP RJ45 T Transceiver |
| J4858C-C | HPJ4858C Compatible X121 1G SFP LC SX Transceiver |
| J4859C-C | HP J4859C Compatible X121 1G SFP LC LX Transceiver |
| J4860C-C | HP J4860C Compatible X121 1G SFP LC LH70 Transceiver |
| Fiber Optical Cables | |
| AJ833A-C | HP AJ833A Compatible LC to LC Multi-mode OM3 2-Fiber 0.5m Fiber Optic Cable |
| AJ834A-C | HP AJ834A Compatible LC to LC Multi-mode OM3 2-Fiber 1.0m Fiber Optic Cable |
| AJ835A-C | HP AJ835A Compatible LC to LC Multi-mode OM3 2-Fiber 2.0m Fiber Optic Cable |
| AJ836A-C | HP AJ835A Compatible LC to LC Multi-mode OM3 2-Fiber 5.0m Fiber Optic Cable |
| AJ837A-C | HP AJ837A Compatible LC to LC Multi-mode OM3 2-Fiber 15.0m Fiber Optic Cable |
| AJ838A-C | HP AJ837A Compatible LC to LC Multi-mode OM3 2-Fiber 30.0m Fiber Optic Cable |
| AJ839A-C | HP AJ837A Compatible LC to LC Multi-mode OM3 2-Fiber 50.0m Fiber Optic Cable |
| BK837A-C | HP PremierFlex BK837A Compatible 0.5 m OM3+ LC/LC Optical Cable |
| BK838A-C | HP PremierFlex BK838A Compatible 1 m OM3+ LC/LC Optical Cable |
| BK839A-C | HP PremierFlex BK839A Compatible 2 m OM3+ LC/LC Optical Cable |
| BK840A-C | HP PremierFlex BK840A Compatible 5 m OM3+ LC/LC Optical Cable |
| BK841A-C | HP PremierFlex BK841A Compatible 15 m OM3+ LC/LC Optical Cable |
| BK842A-C | HP PremierFlex BK842A Compatible 30 m OM3+ LC/LC Optical Cable |
| BK843A-C | HP PremierFlex BK843A Compatible 40 m OM3+ LC/LC Optical Cable |
| QK732A-C | HP Premier Flex QK732A Compatible LC/LC Multi-mode OM4 2 Fiber 1m Fiber Optic Cable |
| QK733A-C | HP Premier Flex QK733A Compatible LC/LC Multi-mode OM4 2 Fiber 2m Fiber Optic Cable |
| QK734A-C | HP Premier Flex QK734A Compatible LC/LC Multi-mode OM4 2 Fiber 5m Fiber Optic Cable |
| QK735A-C | HP Premier Flex QK735A Compatible LC/LC Multi-mode OM4 2 Fiber 15m Fiber Optic Cable |
| QK736A-C | HP Premier Flex QK736A Compatible LC/LC Multi-mode OM4 2 Fiber 30m Fiber Optic Cable |
| QK737A-C | HP Premier Flex QK737A Compatible LC/LC Multi-mode OM4 2 Fiber 50m Fiber Optic Cable |
Note: All trademarks, product, company names mentioned are the property of their respective owners and used for comparative purposes only. All the recommended transceivers and cables are from 3rd Party vendor, they are NOT OEM products and are NOT certified or endorsed by OEM.
