Compatible SFP Module and Patch Cable for MikroTik CRS328-4C-20S-4S+RM Switch

Unlike expensive network switch brands like Cisco and HPE, MikroTik is committed to providing products with highly competitive pricing and top price/performance. On this side, OPTCORE is also similar to MikroTik. Our greatest goal is to provide our customers with optical modules and optical link solutions with excellent price/performance ratios.

In this post, we focus on the MikroTik CRS328-4C-20S-4S+RM switch, a middle-end enterprise switch. This post will provide an overview and introduce our compatible SFP and LC fiber patch cable.

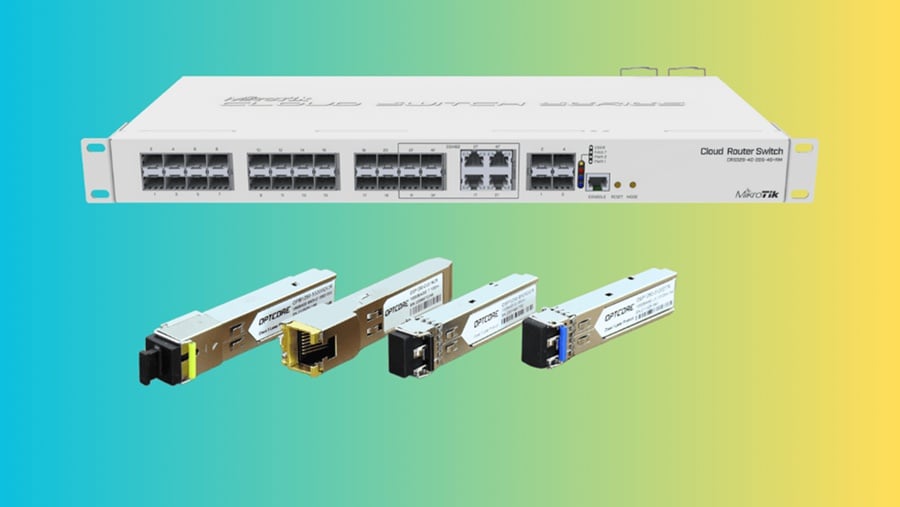

MikroTik CRS328-4C-20S-4S+RM Switch Overview

As a middle-end ethernet switch for high-speed and density business networks, the CRS328-4C-20S-4S+RM provides 28 independent ports. As described in the model number, the “28” in CRS328 means a total of 28 ports, the 4C means 4 combo ports, and the rest of the models mean 20x SFP (the 20S) or 4x SFP+(4S+) rackmount form factor type(RM).

The SFP port supports various 1G SFP modules, such as dual fiber, BiDi, CWDM, and DWDM. At the same time, the SFP+ port supports a broad line of SFP+ modules for uplink connectivity. The four RJ45 ports and the four SFP ports adjacent to them on the left form a combo port group. The OS software easily allows the user to select which four combo ports will be active.

Unlike the low-end switch models, the CRS328-4C-20S-4S+RM switch is equipped with dual PSUs, providing a redundant power supply to prevent downtime losses. Besides that, this switch also offers rich enterprise features, such as IEEE 802.1Q VLAN, STP / RSTP / MSTP, Port isolation, and Port mirroring.

Is CRS328-4C-20S-4S+RM Worth Buying?

The list price on the Mikrotik official website is 449$. However, you can even get a 15% discount in some distributor stores, as low as 385$. This price is affordable and competitive for enterprises and small operators.

Let’s compare similar models on the market, like the Ubiquiti Pro Max 24 and TP-Link TL-SG3428XF. The CRS328-4C-20S-4S+RM provides more features and fiber ports than the Pro Max24 while still having very similar pricing. It has similar fiber ports and switching capacity as the TP-Link TL-SG3428XF, but the price is only 75% of it.

So, overall, the CRS328-4C-20S-4S+RM switch is ideal for small and medium-sized business networks, small carriers, and data centers with fiber connectivity. Especially for users with limited cost budgets and requiring high throughput networks, he is priced much lower than the same class of Cisco and HPE products, which can help you build and maintain a cost-effective fiber-optic connectivity network.

Compatible SFP and Fiber Cable for MikroTik CRS328-4C-20S-4S+RM

As a full fiber port switch, the MikroTik CRS328-4C-20S-4S+RM supports the most popular transceiver types, including 1G SFP, 10G SFP+, SFP+ DAC, and SFP+ AOC. To help you find a low-cost replacement for the original modules, we list the compatible SFP/SFP+ module and fiber cables for your quick reference.

Part Number	Description
1G SFP Module
S-RJ01	MikroTik S-RJ01 Compatible RJ45 SFP 10/100/1000M Copper Module
S-85DLC05D	MikroTik S-85DLC05D Compatible 1.25G Multimode 550m DDM SFP Transceiver
S-31DLC20D	MikroTik S-31DLC20D Compatible 1.25G Single Mode 20km DDM SFP Transceiver
S-31DLC40D	MikroTik S-31DLC40D Compatible 1.25G Single Mode 40km DDM SFP Transceiver
S-55DLC80D	MikroTik S-55DLC80D Compatible 1.25G Single Mode 80km DDM SFP Transceiver
S-3553LC20D	A Pair of MikroTik S-35LC20D/S-53LC20D Compatible 1.25G Single Mode 20km DDM BiDi SFP Transceiver
10G SFP+ Module
S+85DLC03D	MikroTik S+85DLC03D Compatible 10G SFP+ SR Transceiver Module
S+31DLC10D	MikroTik S+31DLC10D Compatible 10G SFP+ LR Transceiver Module
S+55DLC40D	MikroTik S+55DLC40D Compatible 10G SFP+ ER Transceiver Module
S+55DLC80D	MikroTik S+55DLC80D Compatible 10G SFP+ ZR Transceiver Module
S+2332LC10D	MikroTik S+2332LC10D Compatible 10G BiDi SFP+ LR Transceiver Module kit
S+23LC10D	MikroTik S+2332LC10D Compatible 10GBASE-BX10-U BiDi SFP+ Transceiver Module
S+32LC10D	MikroTik S+2332LC10D Compatible 10GBASE-BX10-D BiDi SFP+ Transceiver Module
10G SFP+ DAC Cable
S+DA0001	MikroTik S+DA0001 Compatible 1m 10G SFP+ Direct Attach Cable
S+DA0002	MikroTik S+DA0002 Compatible 2m 10G SFP+ Direct Attach Cable
S+DA0003	MikroTik S+DA0003 Compatible 3m 10G SFP+ Direct Attach Cable
S+DA0005	MikroTik S+DA0005 Compatible 5m 10G SFP+ Direct Attach Cable
10G SFP+ AOC Cable
S+AO0001	MikroTik S+AO0001 SFP+ Active Direct Attach Cable, 1m
S+AO0003	MikroTik S+AO0003 SFP+ Active Direct Attach Cable, 3m
S+AO0005	MikroTik S+AO0005 SFP+ Active Direct Attach Cable, 5m
S+AO0010	MikroTik S+AO0010 SFP+ Active Direct Attach Cable, 10m
10G SFP+ CWDM Module
S+C47DLC10D	MikroTik S+C47DLC10D Compatible SFP+ CWDM Module 10G SM 10km 1470nm DDM
S+C49DLC10D	MikroTik S+C47DLC10D Compatible SFP+ CWDM Module 10G SM 10km 1490nm DDM
S+C51DLC10D	MikroTik S+C47DLC10D Compatible SFP+ CWDM Module 10G SM 10km 1510nm DDM
S+C53DLC10D	MikroTik S+C47DLC10D Compatible SFP+ CWDM Module 10G SM 10km 1530nm DDM
S+C55DLC10D	MikroTik S+C47DLC10D Compatible SFP+ CWDM Module 10G SM 10km 1550nm DDM
S+C57DLC10D	MikroTik S+C47DLC10D Compatible SFP+ CWDM Module 10G SM 10km 1570nm DDM
S+C59DLC10D	MikroTik S+C47DLC10D Compatible SFP+ CWDM Module 10G SM 10km 1590nm DDM
S+C61DLC10D	MikroTik S+C47DLC10D Compatible SFP+ CWDM Module 10G SM 10km 1610nm DDM
1G SFP CWDM Module
S-C47DLC10D	MikroTik S-C47DLC10D Compatible SFP CWDM Module 1.25G SM 10km 1470nm DDM
S-C49DLC10D	MikroTik S-C47DLC10D Compatible SFP CWDM Module 1.25G SM 10km 1490nm DDM
S-C51DLC10D	MikroTik S-C47DLC10D Compatible SFP CWDM Module 1.25G SM 10km 1510nm DDM
S-C53DLC10D	MikroTik S-C47DLC10D Compatible SFP CWDM Module 1.25G SM 10km 1530nm DDM
S-C55DLC10D	MikroTik S-C47DLC10D Compatible SFP CWDM Module 1.25G SM 10km 1550nm DDM
S-C57DLC10D	MikroTik S-C47DLC10D Compatible SFP CWDM Module 1.25G SM 10km 1570nm DDM
S-C59DLC10D	MikroTik S-C47DLC10D Compatible SFP CWDM Module 1.25G SM 10km 1590nm DDM
S-C61DLC10D	MikroTik S-C47DLC10D Compatible SFP CWDM Module 1.25G SM 10km 1610nm DDM
Fiber Patch Cable
LC-LC-OM2-DxM	LC/LC Duplex 50/125μm OM2 Multimode Fiber Optic Cable (1m-50m or Custom Length)
LC-LC-OM3-DxM	LC/LC Duplex 50/125μm 10G OM3 Multimode Fiber Optic Cable (1m-50m or Custom Length)
LC-LC-OM4-DxM	LC/LC Duplex 50/125μm 40G OM4 Multimode Fiber Optic Cable (1m-50m or Custom Length)
LC-LC-SM-DxM	LC/LC Duplex 9/125μm OS2 Singlemode Fiber Optic Cable (1m-50m or Custom Length)
MC-LC-LC-OM2-DxM	LC/LC Duplex 50/125μm Mode Conditioning Fiber Optic Cable (MCP, 1m-50m or Custom Length)

If you view the above table, you will find some specific long-distance SFP and SFP+ that MikroTik could not provide. That is also our value. OPTCORE not only provides the general transceiver but also offers the specific SFP/SFP+ for long-haul applications and WDM networking while being compatible with your MikroTik switches.

FAQs

Q: Will a 3rd party SFP module void the MikroTik warranty?

A: NO, it will not void the MikroTik warranty. The user is free to choose original or third-party modules, and the module used will not affect the device’s warranty.

Conclusion

MikroTik CRS328-4C-20S-4S+RM is a high-performance ethernet switch with 28 fiber ports for small to medium businesses. It even allows users to choose between RouterOS and SwOS operating systems, which provides the best flexibility for different application scenarios. As the innovative optical module solution provider, OPTCORE offers a complete line of compatible SFP/SFP+ modules and connectivity solutions for these models with guaranteed quality and unbeatable prices.

Note: All trademarks, products, and company names mentioned are the property of their respective owners and are used for comparative purposes only. All the recommended transceivers and cables are from 3rd Party. They are NOT OEM products and are NOT certified or endorsed by OEM.
