Questions › Category: Optical Transceiver › Pin issues about OPT2-3120xxxR 1*9 transceiver
0 Vote Up Vote Down
Emmeline asked 7 years ago

Please provide the Source and Sink current capabilities of TD(pin8), SD(pin4) and RD(pin2) of OPT2-3120xxxR.

2 Answers
0 Vote Up Vote Down
Cosmo17 Staff answered 7 years ago

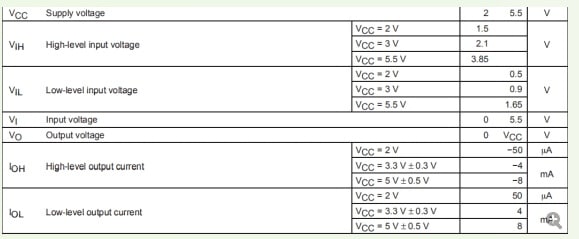

Here please refer the below information. thanks
Pin issues about OPT2-3120xxxR 1x9 transceiver

0 Vote Up Vote Down
prasannababu answered 7 years ago

Could you please Layout design to be implemented on PCB or Application note OPT2-31205STR related
