Zhone CSFP-GE-1490-1310-DL-BIDI-10km Compatible Dual BiDi TX:1490nm/RX:1310nm 10km CSFP Transceiver
US$ 89.00 (Excl. VAT)
Good quality Zhone CSFP-GE-1490-1310-DL-BIDI-10KM compatible 1000BASE-BX10-D CSFP Transceiver (SMF, TX:1490nm/RX:1310nm,10km, LC,DDM).
Zhone CSFP-GE-1490-1310-DL-BIDI-10KM Compatible DUAL BI-DIRECTIONAL,TX:1490nm/RX:1310nm 10km CSFP Transceiver

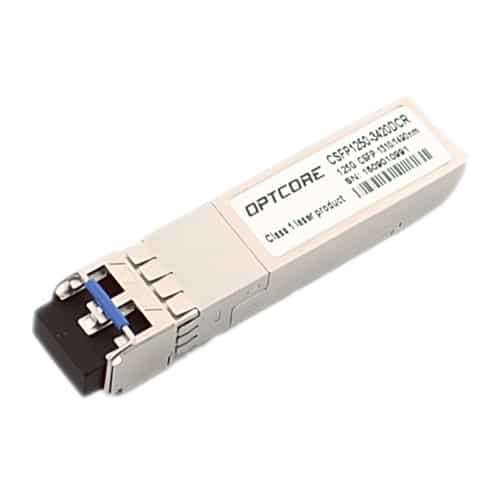

Optcore’s CSFP1250-4320DCR-ZHO is a high performance and cost effective Compact SFP (CSFP) Bi-directional optical transceiver designed to meet Gigabit Ethernet and 1X Fiber channel application. It is fully comply with the CSFP Multi-Sourcing Agreement (MSA) and also compatible with Zhone CSFP-GE-1490-1310-DL-BIDI-10KM 1000BASE-BX10-D CSFP transceiver to meet your network upgrade needs.
The CSFP transceiver is an ideal equivalent to Zhone CSFP-GE-1490-1310-DL-BIDI-10KM SFP optics module but at a much lower price. The CSFP transceiver consists of 2-channel Bi-directional transceiver unit with five sections: the LD driver, the limiting amplifier, the digital diagnostic monitor, the 1490nm DFB laser and the 1310nm PIN photo-detector. The CSFP transceiver module data link up to 10km in 9/125um single mode fiber. The CSFP transceiver module is a Class 1 laser product complies with FDA/CDRH and IEC-60825 standards.
Features
• The 2-channel Bi-directional optical transceiver
• 1.25Gbps Typical Data Rate and compliant to 1000Base-BX IEEE802.3ah
• 1490nm DFB laser transmitter and 1310nm PIN photo-detector
• Hot-pluggable CSFP footprint
• Up to 10km on 9/125µm SMF
• LC/UPC type pluggable optical interface
• Achieve operational compatibility with conventional SFP
• Metal enclosure, for lower EMI
• Single +3.3V power supply
• Support Digital Diagnostic Monitoring interface
• Compact SFP MSA compliant
• RoHS compliant and lead-free
Specification
| OEM Part Number | CSFP-GE-1490-1310-DL-BIDI-10KM | Optcore Part Number | CSFP1250-4320DCR-ZHO |
| Form Factor | Compact SFP (CSFP) | Data Rate | 1.25Gb/s |
| Wavelength | TX:1490nm/RX:1310nm | Fiber Type | SMF |
| Max Distance | 10 km | Optical Components | DFB/PIN |
| Transmitter Power | -9 ~ -3 dBm | Extinction ratio | > 9 dB |
| Receiver Sensitivity | < -22 dBm | Receiver Overload | > -3 dBm |
| Connector | Single LC | Digital Diagnostic Monitoring | Yes |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.025 kg |
| Application | 1x Fiber Channel, Switch to Switch Interface
Gigabit Ethernet, Switched Backplane Applications Router/Server Interface, Other Optical Links |
Compliance | IEC/EN 61000-4-2,IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS |
Download
Note: All trademarks, products and company names mentioned are the property of their respective owners and are used for comparative purposes only. This product is not certified or endorsed by Zhone.
| Weight | 0.03 kg |
|---|
