Brocade XBR-000142 Compatible 4G Fibre Channel (4GFC) 1310nm 4km SFP Transceiver
US$ 36.00 (Excl. VAT)
Good quality 4G Fibre Channel SFP Transceiver Module (SMF, 1310nm, 4km, LC, DDM).
Similar Products
Brocade XBR-000142 Compatible 4G Fibre Channel (4GFC) SFP Transceiver (SMF, 1310nm, 4km, LC, DDM)
Optcore’s OSP4G-315DCR-BRO is a high performance small form factor pluggable SFP transceiver module for 4.25Gb/s, 2.125Gb/s and1.06Gb/s Fibre Channel (4GFC, 2GFC, 1GFC) applications in storage area networks. This 4G fibre channel SFP storage transceiver provides 4km transmission distance over 9/125µm single-mode fiber at a nominal wavelength of 1310nm. The module features a highly reliable 1310nm FP transmitter and PIN photo-detector into LC Duplex optical connector.The 4G SFP module is comply with SFP MSA specifications ( SFF-8074i, SFF-8472) and Fibre Channel FC- PI-2 Rev.8.0 specifications.
This 4G FC SFP+ LW transceiver is programmed to be compatible with a wide range of Brocade network equipment such as SAN switches, routers, network interface cards (NICs) and other storage networking equipment, which makes it be an ideal equivalent to high-cost Brocade XBR-000142 (XBR-000143) 4G SFP+ LW optics module.
Features
• Hot-pluggable SFP footprint
• Up to 4.25Gb/s data links
• Compliant with SFP MSA standard
• 1310nm FP laser transmitter and InGaAs PIN receiver
• Up to 10km on 9/125µm SMF
• Single 3.3V power supply
• Support Digital Diagnostic Monitoring interface

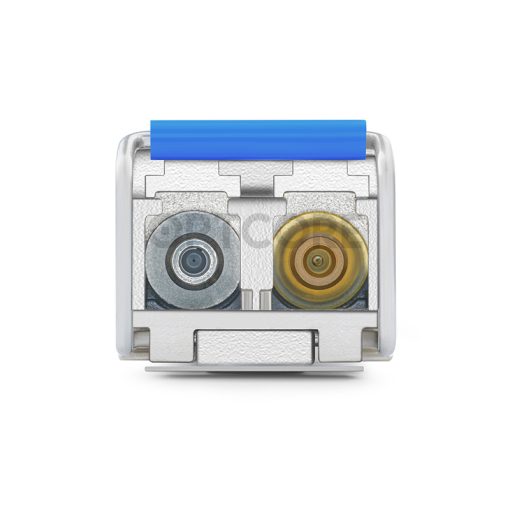

• LC Duplex connector
• Low power dissipation
• Metal enclosure provides lower EMI
• ROHS compliant and Lead-Free
Specification
| Compatible OEM Part Number | XBR-000142 / XBR-000143 | Optcore Part Number | OSP4G-315DCR-BRO |
| Form Factor | SFP+ | Data Rate | 4.25 Gb/s |
| Wavelength | 1310 nm | Fiber Type | SMF |
| Max Distance | 4 km | Optical Components | FP/PIN |
| Transmitter Power | -8 ~ 0 dBm | Extinction ratio | > 5 dB |
| Receiver Sensitivity | < -18 dBm | Receiver Overload | > 0 dBm |
| Connector | LC Duplex | Digital Diagnostic Monitoring | Yes |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.03 kg |
| Application | High-speed storage area networks − Switches and hubs − Network interface cards − Mass storage systems − Host bus adapters 1G/2G/4G Fibre Channel 1.25 Gb/s 1000Base-SX Ethernet |
Compliance | IEC/EN 61000-4-2,IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS |
Download
Note: All trademarks, products and company names mentioned are the property of their respective owners and are used for comparative purposes only. This product is NOT certified or endorsed by Brocade.
