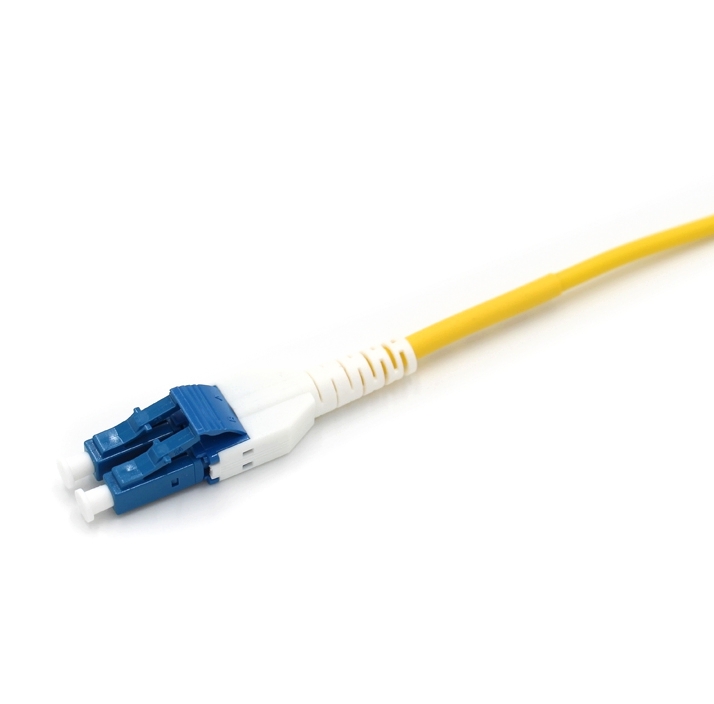

LC-LC Uniboot 9/125 OS2 Singlemode LSZH Duplex Fiber Patch Cable
Price range: US$ 6.90 through US$ 13.70 (Excl. VAT)
Optcore Offers High-Quality Uniboot LC/LC OS2 Singlemode Fiber Patch Cable (Duplex, 9/125μm, PVC, φ2.0mm, UPC Polish).
Uniboot LC to LC 9/125μm OS2 Singlemode Duplex Fiber Patch Cable (2.0mm, UPC Polish, OFNR Riser-Rated)
This fiber jumper cable features the LC-LC Uniboot connector, which is suitable for use in a high density environment. Comparing to the standard duplex connector, the design is more compact, as well as just one cable was used. This Uniboot LC fiber cable help to reduce cable management requirements and improve the hot airflow in a high density and crowded environment.
Features
• Uniboot with a Single Housing
• High back reflection loss
• Stable capability and high reliability
• Excellent mechanical capability
• PVC jacket as default
• An ideal solution for high-speed data transmission
• 100% inspected for optical characteristics before shipment
Specification
| Fiber Type | 9/125µm Singlemode OS2 | Fiber Count | Duplex (2-fiber) |
| Connector Type | Uniboot LC to LC | Polish | UPC to UPC |
| Cable Length | 1m,2m,3m … 50m or Customize | Cable Diameter | 2.0 mm |
| Tensile Strength | 70 N | Length Tolerance | +/- 1cm |
| Insertion Loss | ≤0.2dB | Return Loss | ≥50dB |
| Repeatability | ≤0.2dB | Interchangeability | ≤0.2dB |
| Jacket Material | PVC (OFNR riser-rated) | Jacket Color | Yellow |
| Environment | Operating: -20°C to 70°C Storage: -40°C to 85°C |
Compliance | Telcordia GR-326-CORE RoHS compliant |
| Application | Optical fiber communications system Optical fiber access networks Optical fiber CATV Optical fiber test equipment Optical fiber data communication |
Application | Premises Distribution Local Area Networks (LAN) Fiber-to-the-Home (FTTX) Device Terminations |
Ordering Information
| Optcore Part Number | Description |
| ULC-ULC-SM-D1M-20-PV | 1M Uniboot LC-LC Duplex 9/125μm OS2 Singlemode 2.0mm PVC Fiber Patch Cable |
| ULC-ULC-SM-D2M-20-PV | 2M Uniboot LC-LC Duplex 9/125μm OS2 Singlemode 2.0mm PVC Fiber Patch Cable |
| ULC-ULC-SM-D3M-20-PV | 3M Uniboot LC-LC Duplex 9/125μm OS2 Singlemode 2.0mm PVC Fiber Patch Cable |
| ULC-ULC-SM-D4M-20-PV | 4M Uniboot LC-LC Duplex 9/125μm OS2 Singlemode 2.0mm PVC Fiber Patch Cable |
| ULC-ULC-SM-D5M-20-PV | 5M Uniboot LC-LC Duplex 9/125μm OS2 Singlemode 2.0mm PVC Fiber Patch Cable |
| ULC-ULC-SM-D6M-20-PV | 6M Uniboot LC-LC Duplex 9/125μm OS2 Singlemode 2.0mm PVC Fiber Patch Cable |
| ULC-ULC-SM-D7M-20-PV | 7M Uniboot LC-LC Duplex 9/125μm OS2 Singlemode 2.0mm PVC Fiber Patch Cable |
| ULC-ULC-SM-D8M-20-PV | 8M Uniboot LC-LC Duplex 9/125μm OS2 Singlemode 2.0mm PVC Fiber Patch Cable |
| ULC-ULC-SM-D9M-20-PV | 9M Uniboot LC-LC Duplex 9/125μm OS2 Singlemode 2.0mm PVC Fiber Patch Cable |
| ULC-ULC-SM-D10M-20-PV | 10M Uniboot LC-LC Duplex 9/125μm OS2 Singlemode 2.0mm PVC Fiber Optic Patch Cable |
| ULC-ULC-SM-D15M-20-PV | 15M Uniboot LC-LC Duplex 9/125μm OS2 Singlemode 2.0mm PVC Fiber Optic Patch Cable |
| ULC-ULC-SM-D20M-20-PV | 20M Uniboot LC-LC Duplex 9/125μm OS2 Singlemode 2.0mm PVC Fiber Optic Patch Cable |
| ULC-ULC-SM-D30M-20-PV | 30M Uniboot LC-LC Duplex 9/125μm OS2 Singlemode 2.0mm PVC Fiber Optic Patch Cable |
| ULC-ULC-SM-D50M-20-PV | 50M Uniboot LC-LC Duplex 9/125μm OS2 Singlemode 2.0mm PVC Fiber Optic Patch Cable |
| ULC-ULC-SM-DxM-20-PV | Custom Length xM Uniboot LC-LC Duplex 9/125μm OS2 Singlemode 2.0mm PVC Fiber Patch Cable |
Download
| Weight | N/A |
|---|
