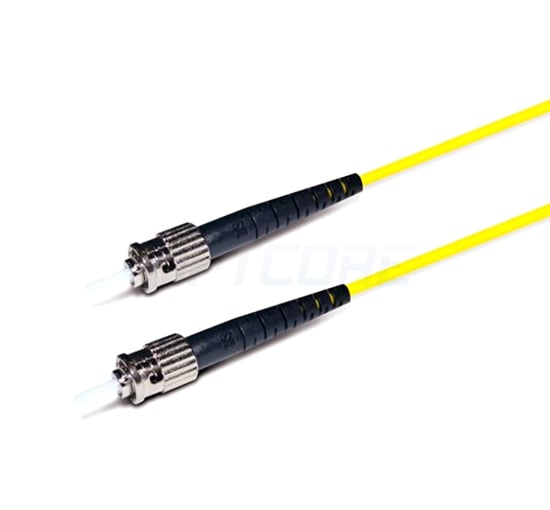

ST-ST 9/125 OS2 Singlemode LSZH Simplex Fiber Patch Cable
Price range: US$ 2.00 through US$ 6.00 (Excl. VAT)
Each ST to ST UPC Singlemode 9/125µm OS2 Simplex Fiber Patch Cable has passed the Insertion Loss, Return Loss Test, and End-face Inspection in the factory to complies and exceeds the latest industry standards.
Customized Fiber Patch CableST to ST 9/125μm OS2 Singlemode Simplex Fiber Patch Cable (2.0mm, UPC Polish, LSZH)
Fiber Optic Patch Cable also is known as fiber patch cord, optical cable or fiber optic jumper. As an important component commonly used in fiber-optic networks, high-quality fiber patch cables are essential for any high-performance fiber-optic network. Optcore offers an extensive line of ST to ST 9/125µm OS2 single mode simplex fiber patch cables with many choices of different lengths, jacket material, polish, and cable diameter. Those ST to ST 9/125µm single mode OS2 fiber patch cables support long transmission distances with lower loss. They are manufactured with high-quality optical fiber and ceramic connectors and are strictly tested for insertion and return loss to ensure superior performance. This fiber jumper cable provides an ideal fiber cabling solution with an extremely competitive price for users in data communication and telecommunication networks.
Features
• Low insertion loss
• High back reflection loss
• Stable capability and high reliability
• Excellent mechanical capability
• LSZH jacket as default
• Ideal solution for high-speed data transmission
• 100% inspected for optical characteristics before shipment
Specification
| Fiber Type | 9/125µm Singlemode OS2 | Fiber Count | Simplex (1-fiber) |
| Connector Type | ST to ST | Polish | UPC to UPC |
| Cable Length | 1m,2m,3m … 50m or Customize | Cable Diameter | 2.0 mm |
| Tensile Strength | 50 N | Length Tolerance | +/- 1cm |
| Insertion Loss | ≤0.2dB | Return Loss | ≥50dB |
| Repeatability | ≤0.2dB | Interchangeability | ≤0.2dB |
| Jacket Material | LSZH (LSZH) | Jacket Color | Yellow |
| Environment | Operating: -20°C to 70°C Storage: -40°C to 85°C |
Compliance | Telcordia GR-326-CORE RoHS compliant |
| Application | Optical fiber communications system Optical fiber access networks Optical fiber CATV Optical fiber test equipment Optical fiber data communication |
Application | Premises Distribution Local Area Networks (LAN) Fiber-to-the-Home (FTTX) Device Terminations |
Ordering Information
| Optcore Part Number | Description |
| ST-ST-SM-S1M-20-LS | 1M ST to ST 9/125 Singlemode OS2 Simplex Fiber Patch Cable (2.0mm, LSZH) |
| ST-ST-SM-S2M-20-LS | 2M ST to ST 9/125 Singlemode OS2 Simplex Fiber Patch Cable (2.0mm, LSZH) |
| ST-ST-SM-S3M-20-LS | 3M ST to ST 9/125 Singlemode OS2 Simplex Fiber Patch Cable (2.0mm, LSZH) |
| ST-ST-SM-S4M-20-LS | 4M ST to ST 9/125 Singlemode OS2 Simplex Fiber Patch Cable (2.0mm, LSZH) |
| ST-ST-SM-S5M-20-LS | 5M ST to ST 9/125 Singlemode OS2 Simplex Fiber Patch Cable (2.0mm, LSZH) |
| ST-ST-SM-S6M-20-LS | 6M ST to ST 9/125 Singlemode OS2 Simplex Fiber Patch Cable (2.0mm, LSZH) |
| ST-ST-SM-S7M-20-LS | 7M ST to ST 9/125 Singlemode OS2 Simplex Fiber Patch Cable (2.0mm, LSZH) |
| ST-ST-SM-S8M-20-LS | 8M ST to ST 9/125 Singlemode OS2 Simplex Fiber Patch Cable (2.0mm, LSZH) |
| ST-ST-SM-S9M-20-LS | 9M ST to ST 9/125 Singlemode OS2 Simplex Fiber Patch Cable (2.0mm, LSZH) |
| ST-ST-SM-S10M-20-LS | 10M ST to ST 9/125 Singlemode OS2 Simplex Fiber Patch Cable (2.0mm, LSZH) |
| ST-ST-SM-S15M-20-LS | 15M ST to ST 9/125 Singlemode OS2 Simplex Fiber Patch Cable (2.0mm, LSZH) |
| ST-ST-SM-S20M-20-LS | 20M ST to ST 9/125 Singlemode OS2 Simplex Fiber Patch Cable (2.0mm, LSZH) |
| ST-ST-SM-S30M-20-LS | 30M ST to ST 9/125 Singlemode OS2 Simplex Fiber Patch Cable (2.0mm, LSZH) |
| ST-ST-SM-S50M-20-LS | 50M ST to ST 9/125 Singlemode OS2 Simplex Fiber Patch Cable (2.0mm, LSZH) |
| ST-ST-SM-SxM-20-LS | Custom Length xM ST to ST 9/125 Singlemode OS2 Simplex Fiber Patch Cable (2.0mm, LSZH) |
