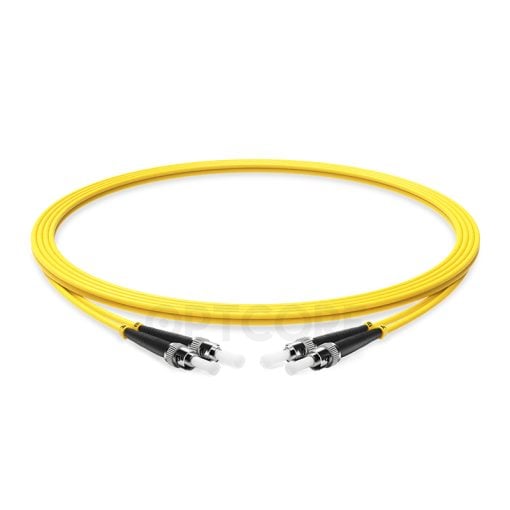

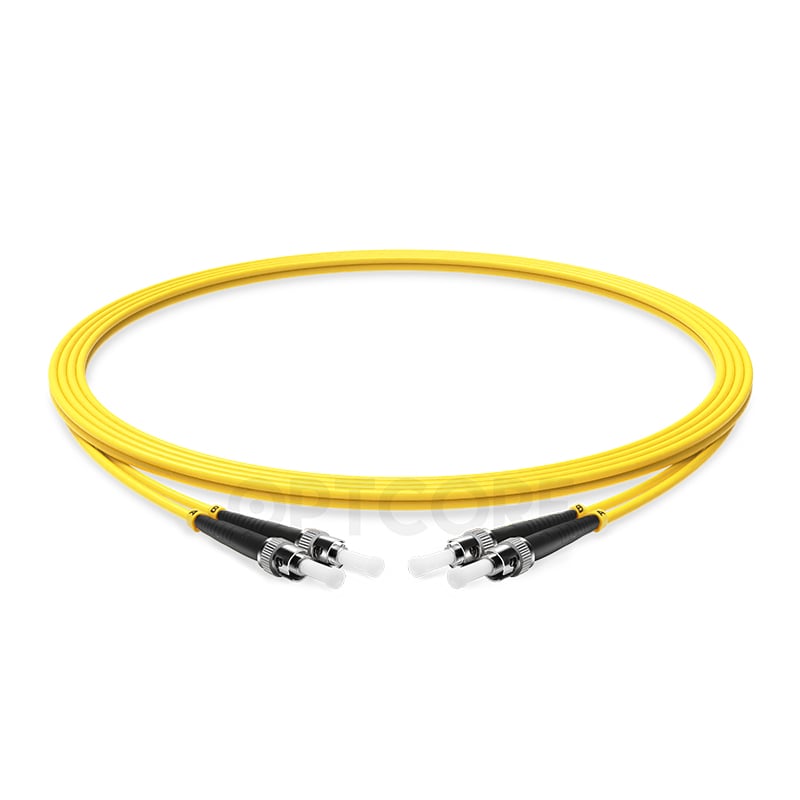

ST-ST OS2 Singlemode Duplex Fiber Patch Cable

ST to ST 9/125μm OS2 Singlemode Duplex Fiber Patch Cable (2.0mm, UPC Polish, LSZH, Yellow)

Fiber Optic Patch Cable also is known as a fiber patch cord, optical cable, or fiber optic jumper. High-quality fiber patch cables are a critical component for any high-performance fiber-optic network. Optcore offers an extensive line of ST to ST 9/125µm OS2 single-mode duplex fiber patch cables with different lengths, jacket material, polish, and cable diameter choices. Those ST to ST 9/125µm single-mode OS2 fiber patch cables support long transmission distances with lower loss. They are manufactured using high-quality material and are strictly tested for insertion and return loss to ensure superior performance and quality. It provides an ideal fiber cabling solution with a highly competitive price for users in data communication and telecommunication networks. This ST-ST LSZH fiber patch cord can replace PVC (OFNR) fiber patch cable but provide better fire rating performance.

Features

• Low insertion loss
• High back reflection loss
• Stable capability and high reliability
• Excellent mechanical capability
• LSZH Low smoke zero halogen jacket reduces the amount of toxic and corrosive gas emitted during combustion
• Ideal solution for high-speed data transmission
• 100% inspected for optical characteristics before shipment

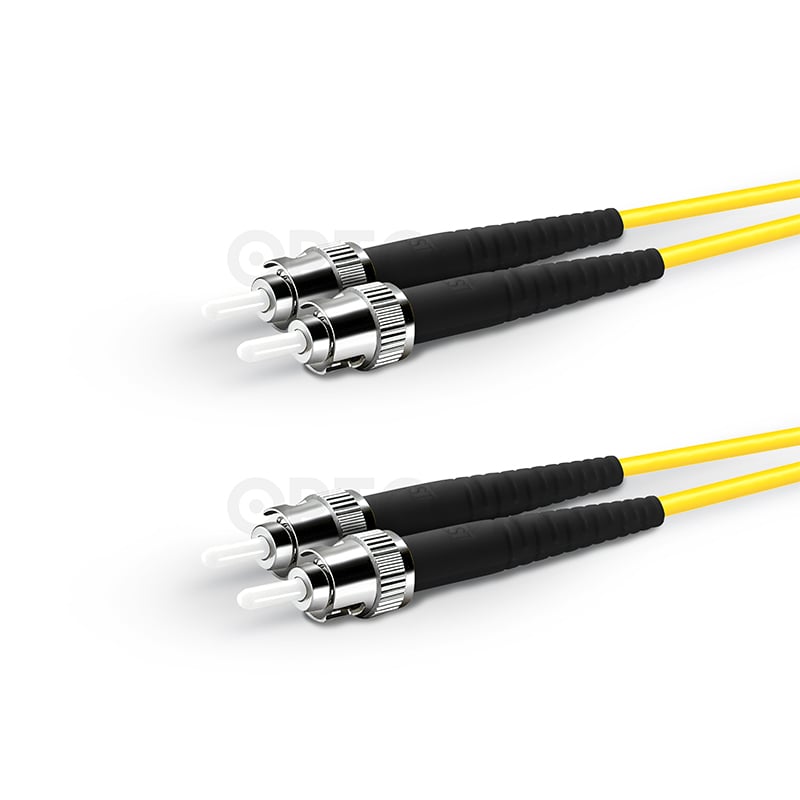

Superior Zirconia Ceramic Ferrule

Premium Grade A Zirconia Ceramic Ferrule provides low insertion loss, precise alignment, and 500 times mating durability to ensure high-speed network transmission stability.

LSZH Rated Outer Jacket

The LSZH (Low Smoke Zero Halogen) jacket emits very little smoke and achieves minimal damage. Great substitutes for PVC (OFNR) fiber patch cable.

0.20dB Max. IL & 50dB Min. RL

When performance and reliability are vital, use our quality fiber patch cable to build your network. Low insertion loss and high return loss provide a stable signal for your network at all times.

Specification

Fiber Type	9/125µm Singlemode OS2	Fiber Count	Duplex (2-fiber)
Connector Type	ST to ST	Polish	UPC to UPC
Cable Length	1m,2m,3m … 50m or Customize	Cable Diameter	2.0 mm
Tensile Strength	70 N	Length Tolerance	+/- 1cm
Insertion Loss	≤0.2dB	Return Loss	≥50dB
Repeatability	≤0.2dB	Interchangeability	≤0.2dB
Jacket Material	LSZH	Jacket Color	Yellow
Environment	Operating: -20°C to 70°C Storage: -40°C to 85°C	Compliance	Telcordia GR-326-CORE RoHS compliant
Application	Optical fiber communications system Optical fiber access networks Optical fiber CATV Optical fiber test equipment Optical fiber data communication Other Indoor networks & telecommunications	Country Of Origin	China

Ordering Information

Optcore Part Number	Description
ST-ST-SM-D1M-20-LS	1M ST to ST 9/125 OS2 Singlemode Duplex Fiber Patch Cable (2.0mm, LSZH)
ST-ST-SM-D2M-20-LS	2M ST to ST 9/125 OS2 Singlemode Duplex Fiber Patch Cable (2.0mm, LSZH)
ST-ST-SM-D3M-20-LS	3M ST to ST 9/125 OS2 Singlemode Duplex Fiber Patch Cable (2.0mm, LSZH)
ST-ST-SM-D4M-20-LS	4M ST to ST 9/125 OS2 Singlemode Duplex Fiber Patch Cable (2.0mm, LSZH)
ST-ST-SM-D5M-20-LS	5M ST to ST 9/125 OS2 Singlemode Duplex Fiber Patch Cable (2.0mm, LSZH)
ST-ST-SM-D7M-20-LS	7M ST to ST 9/125 OS2 Singlemode Duplex Fiber Patch Cable (2.0mm, LSZH)
ST-ST-SM-D10M-20-LS	10M ST to ST 9/125 OS2 Singlemode Duplex Fiber Patch Cable (2.0mm, LSZH)
ST-ST-SM-D15M-20-LS	15M ST to ST 9/125 OS2 Singlemode Duplex Fiber Patch Cable (2.0mm, LSZH)
ST-ST-SM-D20M-20-LS	20M ST to ST 9/125 OS2 Singlemode Duplex Fiber Patch Cable (2.0mm, LSZH)
ST-ST-SM-D25M-20-LS	25M ST to ST 9/125 OS2 Singlemode Duplex Fiber Patch Cable (2.0mm, LSZH)
ST-ST-SM-D30M-20-LS	30M ST to ST 9/125 OS2 Singlemode Duplex Fiber Patch Cable (2.0mm, LSZH)
ST-ST-SM-D40M-20-LS	40M ST to ST 9/125 OS2 Singlemode Duplex Fiber Patch Cable (2.0mm, LSZH)
ST-ST-SM-D50M-20-LS	50M ST to ST 9/125 OS2 Singlemode Duplex Fiber Patch Cable (2.0mm, LSZH)
ST-ST-SM-D75M-20-LS	75M ST to ST 9/125 OS2 Singlemode Duplex Fiber Patch Cable (2.0mm, LSZH)
ST-ST-SM-D100M-20-LS	100M ST to ST 9/125 OS2 Singlemode Duplex Fiber Patch Cable (2.0mm, LSZH)
ST-ST-SM-DxM-20-LS	Custom Length xM ST to ST 9/125 OS2 Singlemode Duplex Fiber Patch Cable (2.0mm, LSZH)
