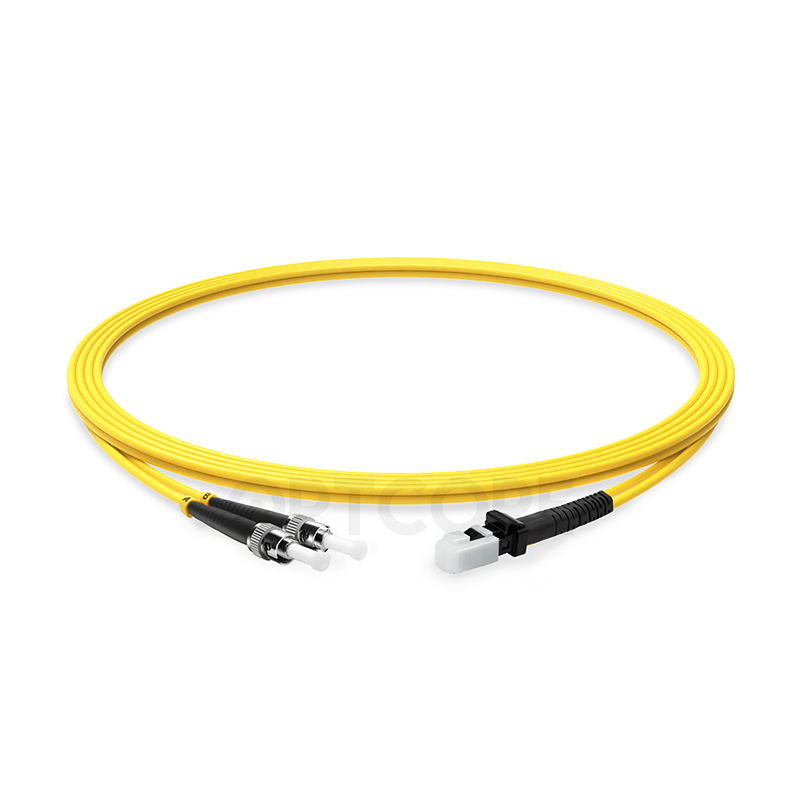

ST-MTRJ 9/125μm OS2 Singlemode Duplex Fiber Optic Patch Cable
Optcore offers good quality ST-MTRJ Singlemode Fiber Optic Patch Cable (Duplex, 9/125μm, PVC, φ2.0mm).
ST-MTRJ 9/125μm OS2 Singlemode Duplex Fiber Optic Patch Cable

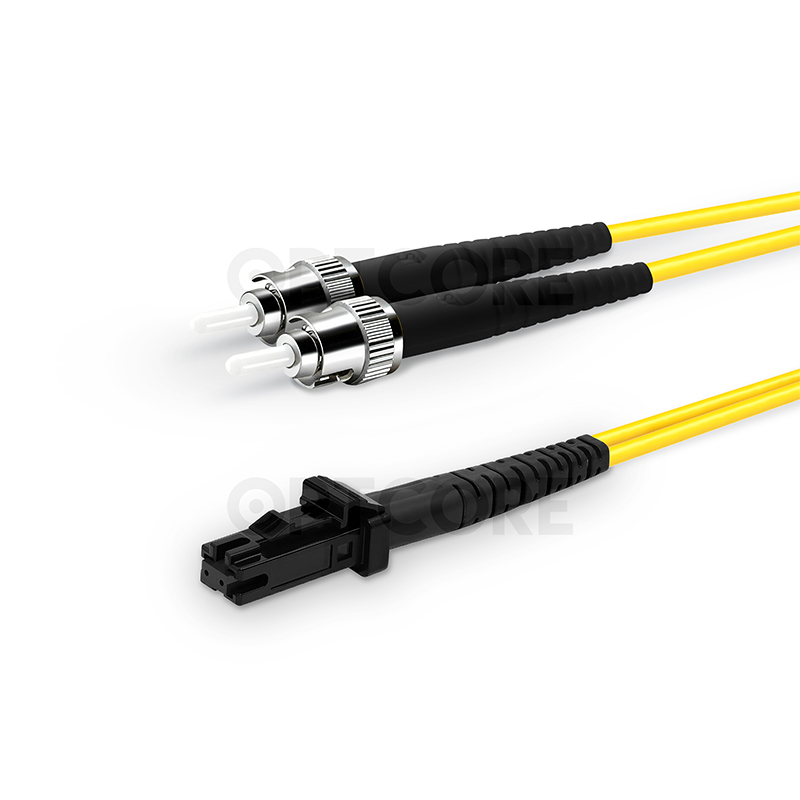

With ST to MTRJ connector, this high-quality fiber optic patch cable is specifically designed for single-mode fiber optic network communication applications. The MTRJ connector features an easy-to-use latch-type design similar to the RJ45 modular connector, and with a smaller size than ST connector. With its small footprint design, the MTRJ connector can increase the port density by 50%.
Optcore offers an extensive line of ST to MTRJ single-mode fiber optic patch cables with many choices of different length, jacket material, polish, and cable diameter. They are manufactured using high-quality material and are strictly tested for insertion and return loss to ensure superior performance and quality, which provide an ideal fiber cabling solutions with the extremely competitive price for users in data communication and telecommunication.
Features
• Low insertion loss
• High back reflection loss
• Stable capability and high reliability
• Excellent mechanical capability
• Increases port density
• PVC jacket as default
• Ideal solution for high-speed data transmission
• 100% inspected for optical characteristics before shipment
Specification
| Fiber Type | 9/125µm Singlemode OS2 | Fiber Count | Duplex (2-fiber) |
| Connector Type | ST to MT-RJ | Polish | UPC to UPC |
| Cable Length | 1m,2m,3m …50m or Customize | Cable Diameter | 2.0 mm |
| Tensile Strength | 70 N | Length Tolerance | +/- 1cm |
| Insertion Loss | ≤0.2dB | Return Loss | ≥45dB |
| Repeatability | ≤0.1dB | Interchangeability | ≤0.2dB |
| Jacket Material | PVC (OFNR riser-rated) | Jacket Color | Orange |
| Environment | Operating: -20°C to 70°C Storage: -40°C to 85°C |
Compliance | RoHS |
| Application | Local Area Networks Fast Ethernet Fiber Channel |
Application | ATM Networks Network cross-connect FTTX Industrial Networks |
Ordering Information
| Optcore Part Number | Description |
| ST-MTRJ-SM-D1M-20-PV | 1M ST to MT-RJ Duplex 9/125μm OS2 Singlemode 2.0mm PVC Fiber Optic Patch Cable |
| ST-MTRJ-SM-D2M-20-PV | 2M ST to MT-RJ Duplex 9/125μm OS2 Singlemode 2.0mm PVC Fiber Optic Patch Cable |
| ST-MTRJ-SM-D3M-20-PV | 3M ST to MT-RJ Duplex 9/125μm OS2 Singlemode 2.0mm PVC Fiber Optic Patch Cable |
| ST-MTRJ-SM-D4M-20-PV | 4M ST to MT-RJ Duplex 9/125μm OS2 Singlemode 2.0mm PVC Fiber Optic Patch Cable |
| ST-MTRJ-SM-D5M-20-PV | 5M ST to MT-RJ Duplex 9/125μm OS2 Singlemode 2.0mm PVC Fiber Optic Patch Cable |
| ST-MTRJ-SM-D6M-20-PV | 6M ST to MT-RJ Duplex 9/125μm OS2 Singlemode 2.0mm PVC Fiber Optic Patch Cable |
| ST-MTRJ-SM-D7M-20-PV | 7M ST to MT-RJ Duplex 9/125μm OS2 Singlemode 2.0mm PVC Fiber Optic Patch Cable |
| ST-MTRJ-SM-D8M-20-PV | 8M ST to MT-RJ Duplex 9/125μm OS2 Singlemode 2.0mm PVC Fiber Optic Patch Cable |
| ST-MTRJ-SM-D9M-20-PV | 9M ST to MT-RJ Duplex 9/125μm OS2 Singlemode 2.0mm PVC Fiber Optic Patch Cable |
| ST-MTRJ-SM-D10M-20-PV | 10M ST to MT-RJ Duplex 9/125μm OS2 Singlemode 2.0mm PVC Fiber Optic Patch Cable |
| ST-MTRJ-SM-D15M-20-PV | 15M ST to MT-RJ Duplex 9/125μm OS2 Singlemode 2.0mm PVC Fiber Optic Patch Cable |
| ST-MTRJ-SM-D20M-20-PV | 20M ST to MT-RJ Duplex 9/125μm OS2 Singlemode 2.0mm PVC Fiber Optic Patch Cable |
| ST-MTRJ-SM-D30M-20-PV | 30M ST to MT-RJ Duplex 9/125μm OS2 Singlemode 2.0mm PVC Fiber Optic Patch Cable |
| ST-MTRJ-SM-D50M-20-PV | 50M ST to MT-RJ Duplex 9/125μm OS2 Singlemode 2.0mm PVC Fiber Optic Patch Cable |
| ST-MTRJ-SM-DxM-20-PV | Custom Length xM ST to MT-RJ Duplex 9/125μm OS2 Singlemode 2.0mm PVC Fiber Optic Patch Cable |
