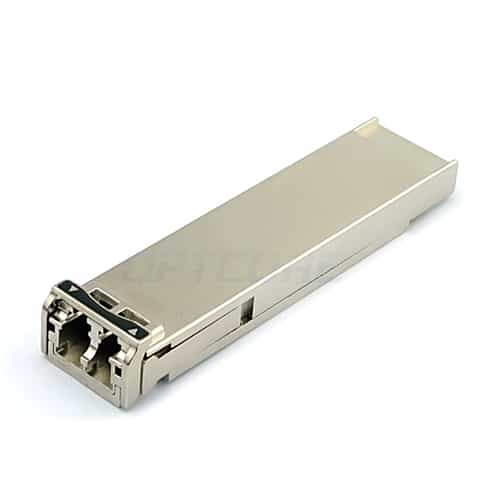

SMC SMC10GXFP-SR Compatible 10GBASE-SR 850nm 300m XFP Transceiver
US$ 42.00 (Excl. VAT)
Good quality SMC SMC10GXFP-SR compatible 10GBASE-SR XFP Transceiver (MMF, 850nm, 300m, LC, DDM).
SMC SMC10GXFP-SR Compatible 10GBASE-SR MMF 850nm 300m XFP Optical Transceiver Module

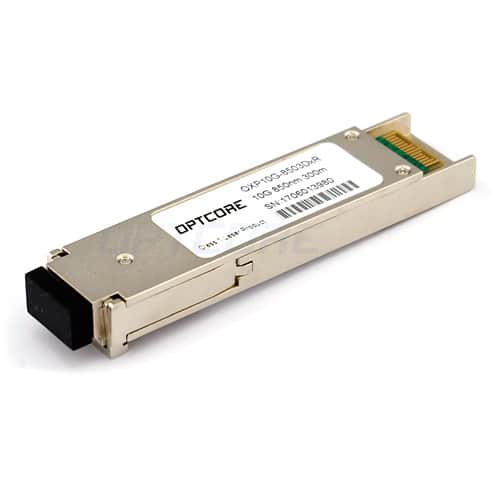

Optcore’s OXP10G-8503DCR-SMC is an XFP transceiver module for 9.95Gbps to 11.1Gbps data transmission applications. The transceiver is compliant with the current XFP Multi-Source Agreement (MSA) Specification,10-Gigabit Ethernet 10GBASE-SR/SW per IEEE 802.3ae and 10G Fiber Channel 1200-Mx-SN-I. It provides 10-Gigabit connectivity up to 300m on multimode fiber (MMF) at 850nm. The XFP transceiver also provides a unique enhanced digital diagnostic monitoring interface(DDMI) per SFF-8472. It is a Class 1 laser product complies with FDA/CDRH and IEC-60825 standards.
Additionally, the OXP10G-8503DCR-SMC XFP transceiver is programmed to be compatible with a wide range of SMC network equipment such as 10 Gigabit Ethernet (10 GbE) Switches, Routers, Network Interface Cards (NICs) and SAN storage devices. It is an ideal equivalent to high-cost SMC SMC10GXFP-SR 10GBASE-SR XFP module.
Features
• Hot-pluggable XFP footprint
• Supports 9.95Gbps to 11.1Gbps bit rates
• Compliant with IEEE 802.3ae 10GBASE-SR/SW
• 850nm VCSEL laser and PIN receiver
• Distance up to 300m on multimode OM3 fiber
• Duplex LC connector
• Built-in digital diagnostic functions
• Single 3.3V power supply
• Very low EMI and excellent ESD protection
• ROHS compliant and lead-free
Specification
| Compatible OEM Part Number | SMC10GXFP-SR | Optcore Part Number | OXP10G-8503DCR-SMC |
| Form Factor | XFP | Data Rate | 10Gb/s |
| Wavelength | 850 nm | Fiber Type | MMF |
| Max Distance | 300 m | Optical Components | VCSEL/PIN |
| Transmitter Power | -6 ~ -1 dBm | Extinction ratio | > 3.5 dB |
| Receiver Sensitivity | < -10 dBm | Receiver Overload | > 0.5 dBm |
| Connector | LC Duplex | Digital Diagnostic Monitoring | Yes |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.05 kg |
| Application | 10GBASE-SR/10GBASE-SW Ethernet
10G Fiber Channel 10GbE Data Center Switches and Routers |
Compliance | IEC/EN 61000-4-2,IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS |
Compatibility
• SMC8708L2 Standalone 8-port 10G Managed L2 switch
• SMC8024L2 Standalone 24-port 10/100/1000 including 4 Combo ports Managed Switch
• SMC8124PL2 24-port 10/100/1000 Managed Switch with PoE, IP Clustering, and 2 Gigabit combo ports
• SMC8126L2 26-port 10/100/1000 Managed Switch with IP Clustering and 4 Gigabit combo ports
• SMC8150L2 50-port 10/100/1000 Managed Switch with IP Clustering and 4 Gigabit combo ports
• SMC8612XL3 Standalone L3 12 SFP port Managed Switch with 4 fixed gigabit copper uplinks
• SMC8824M Stackable 24-Port 10/100/1000 managed switch with 4 Gigabit combo ports and 2 optional 10G uplinks
• SMC8848M Stackable 48-Port 10/100/1000 managed switch with 4 Gigabit combo ports and 2 optional 10G uplinks
• SMC8926EM Stackable 24-Port 10/100/1000 managed switch with 4 Gigabit combo ports and 2 optional 10G uplinks
• SMC8950EM Stackable 48-Port 10/100/1000 managed switch with 4 Gigabit combo ports and 2 optional 10G uplinks
• SMC6110L2 8-port 10/100 Managed Switch with IP Clustering and 2 Gigabit ports
• SMC6128L2 24-port 10/100 Managed Switch with IP Clustering and 4 Gigabit ports
• SMC6128PL2 24-port 10/100 Managed Switch with PoE, IP Clustering, and 4 Gigabit ports
• SMC6152L2 48-port 10/100 Managed Switch with IP Clustering and 4 Gigabit ports
Download
Note: All trademarks, products and company names mentioned are the property of their respective owners and are used for comparative purposes only. This product is NOT certified or endorsed by SMC.
| Weight | 0.05 kg |
|---|
