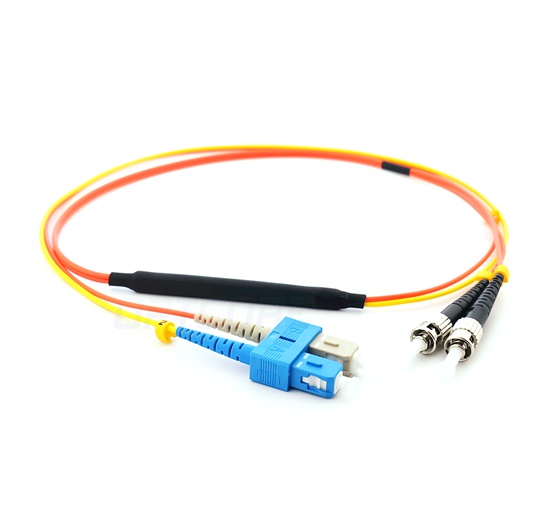

SM SC to MM ST 62.5/125μm Mode Conditioning Fiber Optic Patch Cable (PVC)
Price range: US$ 14.00 through US$ 15.00 (Excl. VAT)
SM SC to MM ST OM1 Mode Conditioning Patch Cable (Duplex, 62.5/125μm, UPC, PVC/OFNR) for 1000BASE-LX/LH & 10GBASE-LRM over OM1 mulitmode fiber networks.
SM SC to MM ST OM1 62.5/125μm Mode Conditioning Fiber Optic Patch Cable (Duplex, UPC, PVC/OFNR)
Optcore mode conditioning patch cables are used when a gigabit 1000Base-LX/LH or 10GBase-LRM (1310nm) router or switch has been installed into an existing multimode fiber cable system. The mode-conditioning patch cords are designed to reduce differential mode delay (DMD) effects that can occur when a single-mode signal is launched into a multimode fiber. The mode-conditioning patch cords consist of a single-mode fiber that has been fusion spliced to multimode fiber (orange jacket) in an offset manner. The mode-conditioning patch cable helps eliminate the multiple signals that cause signal errors.
These mode-conditioning patch cord cables utilize a UPC (Ultra Physical Contact) polish and PVC (OFNR) jacket. Please be sure to connect the yellow leg (single-mode) of the cable to the transmit side, and the orange leg (multimode) to the receive side of the equipment. It is imperative that this configuration be maintained on both ends. The mode conditioning cord eliminates the multiple signals.
Features
• SM SC-ST OM1 mode conditioning duplex patch cable
• Masks Differential Mode Delay (DMD) Effects
• Low insertion loss
• High back reflection loss
• Stable capability and high reliability
• Eliminate differential mode delay
• PVC jacket as default
• Ideal solution for high-speed data transmission
• 100% inspected for optical characteristics before shipment
Specification
| Product Series | Mode Conditioning Fiber Patch Cable | Fiber Count | Duplex (2-fiber) |
| Connector Type | SM SC to MM ST | Polish | UPC to UPC |
| Cable Length | 1m,2m,3m … 50m or Customize | Cable Diameter | 2.0 mm |
| Tensile Strength | 70 N | Length Tolerance | +/- 1cm |
| Insertion Loss | ≤0.3dB | Return Loss | ≥20dB(MM), ≥50dB(SM) |
| Repeatability | ≤0.2dB | Interchangeability | ≤0.2dB |
| Jacket Material | PVC (OFNR riser-rated) | Jacket Color | Orange for MM leg, Yellow for SM leg |
| Environment | Operating: -20°C to 70°C Storage: -40°C to 85°C |
Compliance | Telcordia GR-326-CORE RoHS compliant |
| Durability | 500 times | Application | 1000Base-LX/LH over OM1/OM2 multimode networks 10GBase-LRM over OM1/OM2 multimode networks |
Ordering Information
| Optcore Part Number | Description |
| MC-SC-ST-OM1-D1M-20-PV | 1M Singlemode SC to Multimode ST 62.5/125μm OM1 Mode Conditioning Fiber Optic Patch Cable (2.0mm, PVC) |
| MC-SC-ST-OM1-D2M-20-PV | 2M Singlemode SC to Multimode ST 62.5/125μm OM1 Mode Conditioning Fiber Optic Patch Cable (2.0mm, PVC) |
| MC-SC-ST-OM1-D3M-20-PV | 3M Singlemode SC to Multimode ST 62.5/125μm OM1 Mode Conditioning Fiber Optic Patch Cable (2.0mm, PVC) |
| MC-SC-ST-OM1-D4M-20-PV | 4M Singlemode SC to Multimode ST 62.5/125μm OM1 Mode Conditioning Fiber Optic Patch Cable (2.0mm, PVC) |
| MC-SC-ST-OM1-D5M-20-PV | 5M Singlemode SC to Multimode ST 62.5/125μm OM1 Mode Conditioning Fiber Optic Patch Cable (2.0mm, PVC) |
| MC-SC-ST-OM1-D6M-20-PV | 6M Singlemode SC to Multimode ST 62.5/125μm OM1 Mode Conditioning Fiber Optic Patch Cable (2.0mm, PVC) |
| MC-SC-ST-OM1-D7M-20-PV | 7M Singlemode SC to Multimode ST 62.5/125μm OM1 Mode Conditioning Fiber Optic Patch Cable (2.0mm, PVC) |
| MC-SC-ST-OM1-D8M-20-PV | 8M Singlemode SC to Multimode ST 62.5/125μm OM1 Mode Conditioning Fiber Optic Patch Cable (2.0mm, PVC) |
| MC-SC-ST-OM1-D9M-20-PV | 9M Singlemode SC to Multimode ST 62.5/125μm OM1 Mode Conditioning Fiber Optic Patch Cable (2.0mm, PVC) |
| MC-SC-ST-OM1-D10M-20-PV | 10M Singlemode SC to Multimode ST 62.5/125μm OM1 Mode Conditioning Fiber Optic Patch Cable (2.0mm, PVC) |
| MC-SC-ST-OM1-D15M-20-PV | 15M Singlemode SC to Multimode ST 62.5/125μm OM1 Mode Conditioning Fiber Optic Patch Cable (2.0mm, PVC) |
| MC-SC-ST-OM1-D20M-20-PV | 20M Singlemode SC to Multimode ST 62.5/125μm OM1 Mode Conditioning Fiber Optic Patch Cable (2.0mm, PVC) |
| MC-SC-ST-OM1-DxM-20-PV | Custom Length xM Singlemode SC to Multimode ST 62.5/125μm OM1 Mode Conditioning Fiber Optic Patch Cable (2.0mm, PVC) |
