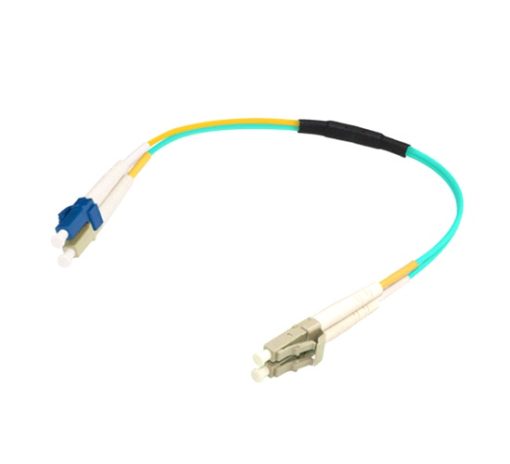

SM LC to MM LC 62.5/125μm Mode Conditioning Fiber Optic Patch Cable (PVC)
Price range: US$ 14.00 through US$ 15.00 (Excl. VAT)
Optcore offers good quality LC-LC Mode Conditioning Fiber Optic Patch Cable (62.5/125μm, PVC, φ2.0mm, UPC Polish).
SM LC to MM LC 62.5/125μm Mode Conditioning Fiber Optic Patch Cable (PVC)
Optcore Mode conditioning patch cables are used when a gigabit 1000Base-LX or 10GBase-LRM (1310 nm) router or switch has been installed into an existing multimode fiber cable systems. The mode-conditioning patch cords are designed to reduce differential mode delay (DMD) effects that can occur when a single mode signal is launched into a multimode fiber. The mode-conditioning patch cords consist of a single mode fiber which has been fusion spliced to a multimode fiber (orange jacket) in an offset manner. These patch cord cables utilize a UPC (Ultra Physical Contact) polish and PVC jacket.
Features
• Low insertion loss
• High back reflection loss
• Stable capability and high reliability
• Eliminate differential mode delay
• PVC jacket as default
• Ideal solution for high-speed data transmission
• 100% inspected for optical characteristics before shipment
Specification
| Fiber Type | Mode Conditioning Fiber Patch Cable | Fiber Count | Duplex (2-fiber) |
| Connector Type | LC to LC | Polish | UPC to UPC |
| Cable Length | 1m,2m,3m … 20m or Customize | Cable Diameter | 2.0 mm |
| Tensile Strength | 70 N | Length Tolerance | +/- 1cm |
| Insertion Loss | ≤0.3dB | Return Loss | ≥20dB |
| Repeatability | ≤0.2dB | Interchangeability | ≤0.2dB |
| Jacket Material | PVC (OFNR riser-rated) | Jacket Color | Orange |
| Environment | Operating: -20°C to 70°C Storage: -40°C to 85°C |
Compliance | Telcordia GR-326-CORE RoHS compliant |
| Application | Gigabit Ethernet upgrades Structured cabling systems |
Application | Datacenters 10GBase-LRM Ethernet |
Ordering Information
| Optcore Part Number | Description |
| MC-LC-LC-OM1-D1M-20-PV | 1M Singlemode LC to Multimode LC 62.5/125μm OM1 Mode Conditioning Fiber Optic Patch Cable (2.0mm, PVC) |
| MC-LC-LC-OM1-D2M-20-PV | 2M Singlemode LC to Multimode LC 62.5/125μm OM1 Mode Conditioning Fiber Optic Patch Cable (2.0mm, PVC) |
| MC-LC-LC-OM1-D3M-20-PV | 3M Singlemode LC to Multimode LC 62.5/125μm OM1 Mode Conditioning Fiber Optic Patch Cable (2.0mm, PVC) |
| MC-LC-LC-OM1-D4M-20-PV | 4M Singlemode LC to Multimode LC 62.5/125μm OM1 Mode Conditioning Fiber Optic Patch Cable (2.0mm, PVC) |
| MC-LC-LC-OM1-D5M-20-PV | 5M Singlemode LC to Multimode LC 62.5/125μm OM1 Mode Conditioning Fiber Optic Patch Cable (2.0mm, PVC) |
| MC-LC-LC-OM1-D6M-20-PV | 6M Singlemode LC to Multimode LC 62.5/125μm OM1 Mode Conditioning Fiber Optic Patch Cable (2.0mm, PVC) |
| MC-LC-LC-OM1-D7M-20-PV | 7M Singlemode LC to Multimode LC 62.5/125μm OM1 Mode Conditioning Fiber Optic Patch Cable (2.0mm, PVC) |
| MC-LC-LC-OM1-D8M-20-PV | 8M Singlemode LC to Multimode LC 62.5/125μm OM1 Mode Conditioning Fiber Optic Patch Cable (2.0mm, PVC) |
| MC-LC-LC-OM1-D9M-20-PV | 9M Singlemode LC to Multimode LC 62.5/125μm OM1 Mode Conditioning Fiber Optic Patch Cable (2.0mm, PVC) |
| MC-LC-LC-OM1-D10M-20-PV | 10M Singlemode LC to Multimode LC 62.5/125μm OM1 Mode Conditioning Fiber Optic Patch Cable (2.0mm, PVC) |
| MC-LC-LC-OM1-D15M-20-PV | 15M Singlemode LC to Multimode LC 62.5/125μm OM1 Mode Conditioning Fiber Optic Patch Cable (2.0mm, PVC) |
| MC-LC-LC-OM1-D20M-20-PV | 20M Singlemode LC to Multimode LC 62.5/125μm OM1 Mode Conditioning Fiber Optic Patch Cable (2.0mm, PVC) |
| MC-LC-LC-OM1-DxM-20-PV | Custom Length xM Singlemode LC to Multimode LC 62.5/125μm OM1 Mode Conditioning Fiber Optic Patch Cable (2.0mm, PVC) |
Download
| Weight | N/A |
|---|
