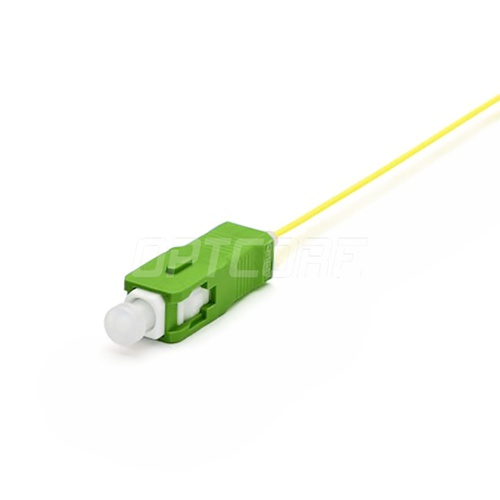

SC/APC Singlemode 9/125µm OS2 PVC 0.9mm Simplex Fiber Optic Pigtail
Price range: US$ 1.30 through US$ 15.20 (Excl. VAT)
Each SC Singlemode 9/125µm OS2 Simplex Fiber Optic Pigtail (Customized Length, APC Polish, 0.9mm, PVC/OFNR, Yellow) has passed the Insertion Loss, Return Loss Test, and End-face Inspection in the factory to complies and exceeds industry standards.
Customized Fiber PigtailSC Singlemode 9/125µm OS2 Simplex Fiber Optic Pigtail (Customized Length, APC Polish, 0.9mm, PVC/OFNR, Yellow)
Optcore offers simplex SC OS2 single-mode fiber optic pigtails at a competitive price. Our SC single-mode fiber optic pigtail comprises an exposed 9/125μm OS2 fiber cable at one end and a pre-installed simplex SC/APC connector at the other. The fiber optic pigtails are commonly used to splice the fiber in the cable so that they can be connected to the patch panel or equipment. This pigtail features a typical 900μm tight-buffered cable as default. Available in different lengths, jacket materials, polish, and cable diameters, Optcore’s fiber optic pigtail can be ordered to customize any fiber optic protocol to meet your other network applications.
Features
• Low insertion loss
• High back reflection loss
• Stable capability and high reliability
• APC polish
• Boots in a variety of colors
• PVC jacket as default, LSZH optional
• 0.9mm as default, 2.0mm and 3.0mm cable optional
• 100% inspected for optical characteristics before shipment
• Customized specifications are available
Specification
| Fiber Type | 9/125µm Singlemode OS2 | Fiber Count | Simplex (1-fiber) |
| Connector Type | SC | Polish | APC |
| Cable Length | 1m,2m,3m …5m or Customize | Cable Diameter | 0.9 mm as default |
| Tensile Strength | 5N (0.9mm), 70N (2.0mm) | Length Tolerance | +/- 1cm |
| Insertion Loss | ≤0.2dB | Return Loss | ≥60dB |
| Repeatability | ≤0.2dB | Interchangeability | ≤0.2dB |
| Jacket Material | PVC (OFNR riser-rated) as default | Jacket Color | Yellow |
| Environment | Operating: -20°C to 70°C Storage: -40°C to 85°C |
Compliance | RoHS |
| Application | Optical fiber communications system Optical fiber access networks Optical fiber CATV Optical fiber test equipment Optical fiber data communication |
Application | Premises Distribution Local Area Networks (LAN) Fiber-to-the-Home (FTTX) Device Terminations |
Ordering Information
| Optcore Part Number | Description |
| SCA-SM-S1M | 1M Simplex SC/APC 9/125μm OS2 Singlemode Fiber Optic Pigtail |
| SCA-SM-S2M | 2M Simplex SC/APC 9/125μm OS2 Singlemode Fiber Optic Pigtail |
| SCA-SM-S3M | 3M Simplex SC/APC 9/125μm OS2 Singlemode Fiber Optic Pigtail |
| SCA-SM-S4M | 4M Simplex SC/APC 9/125μm OS2 Singlemode Fiber Optic Pigtail |
| SCA-SM-S5M | 5M Simplex SC/APC 9/125μm OS2 Singlemode Fiber Optic Pigtail |
| SCA-SM-SxM | Custom Length xM Simplex SC/APC 9/125μm OS2 Singlemode Fiber Optic Pigtail |
Download
| Weight | N/A |
|---|---|
| Fiber Type |
