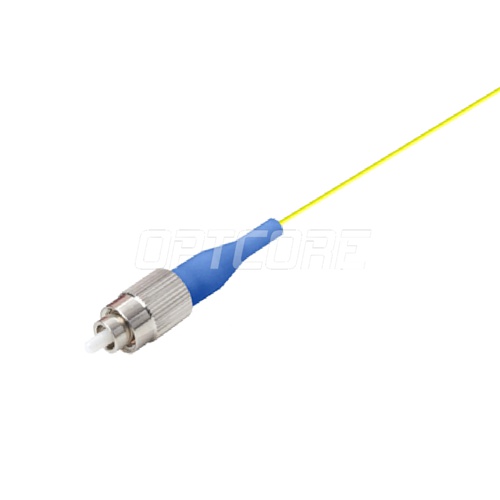

FC/UPC Singlemode 9/125µm OS2 PVC 0.9mm Simplex Fiber Optic Pigtail
Price range: US$ 1.30 through US$ 15.20 (Excl. VAT)
Each FC Singlemode 9/125µm OS2 Simplex Fiber Optic Pigtail (Customized Length, UPC Polish, 0.9mm, PVC/OFNR, Yellow) has passed the Insertion Loss, Return Loss Test, and End-face Inspection in the factory to complies and exceeds industry standards.
Customized Fiber PigtailFC Singlemode 9/125µm OS2 Simplex Fiber Optic Pigtail (Customized Length, UPC Polish, 0.9mm, PVC/OFNR, Yellow)

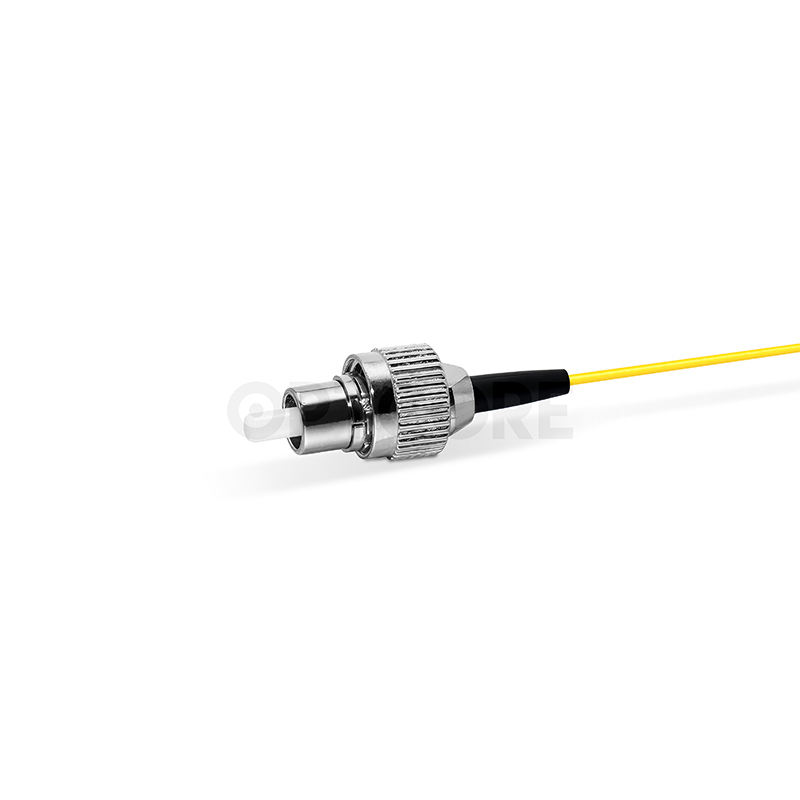

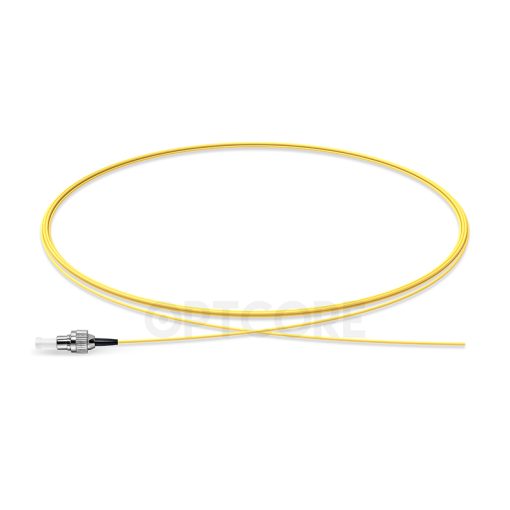

Optcore offers simplex FC OS2 single-mode fiber optic pigtails at a very competitive price. Our FC single-mode fiber optic pigtail comprises of an exposed 9/125μm OS2 fiber cable at one end and a pre-installed simplex FC connector at the other end. The fiber optic pigtails are commonly used to splice the fiber in the cable so that they can be connected to the patch panel or equipment. This pigtail features typical 900μm tight-buffered cables as default. Available in different lengths, jacket materials, polish, and cable diameters, Optcore’s fiber optic pigtail can be ordered to customize any fiber optic protocol to meet your different network applications.
Features
• Low insertion loss
• High back reflection loss
• Stable capability and high reliability
• UPC polish as default
• Boots in a variety of colors
• PVC jacket as default, LSZH optional
• 0.9mm as default, 2.0mm and 3.0mm cable optional
• 100% inspected for optical characteristics before shipment
• Customized specifications are available
Specification
| Fiber Type | 9/125µm Singlemode OS2 | Fiber Count | Simplex (1-fiber) |
| Connector Type | FC | Polish | UPC |
| Cable Length | 1m,2m,3m …5m or Customize | Cable Diameter | 0.9mm as default |
| Tensile Strength | 5N (0.9mm), 70N (2.0mm) | Length Tolerance | +/- 1cm |
| Insertion Loss | ≤0.2dB | Return Loss | ≥50dB |
| Repeatability | ≤0.2dB | Interchangeability | ≤0.2dB |
| Jacket Material | PVC (OFNR riser-rated) as default | Jacket Color | Yellow |
| Environment | Operating: -20°C to 70°C Storage: -40°C to 85°C |
Compliance | RoHS |
| Application | Optical fiber communications system Optical fiber access networks Optical fiber CATV Optical fiber test equipment Optical fiber data communication |
Application | Premises Distribution Local Area Networks (LAN) Fiber-to-the-Home (FTTX) Device Terminations |
Ordering Information
| Optcore Part Number | Description |
| FC-SM-S1M | 1M Simplex FC/UPC 9/125μm OS2 Singlemode Fiber Optic Pigtail |
| FC-SM-S2M | 2M Simplex FC/UPC 9/125μm OS2 Singlemode Fiber Optic Pigtail |
| FC-SM-S3M | 3M Simplex FC/UPC 9/125μm OS2 Singlemode Fiber Optic Pigtail |
| FC-SM-S4M | 4M Simplex FC/UPC 9/125μm OS2 Singlemode Fiber Optic Pigtail |
| FC-SM-S5M | 5M Simplex FC/UPC 9/125μm OS2 Singlemode Fiber Optic Pigtail |
| FC-SM-SxM | Custom Length xM Simplex FC/UPC 9/125μm OS2 Singlemode Fiber Optic Pigtail |
Download
| Weight | N/A |
|---|---|
| Connector | |
| Polish Type | |
| Cable Length | 1m (3.3ft), 2m (6.6ft), 3m (9.8ft), 5m (16.4ft), 7m (23.0ft), 10m (32.8ft), 15m (49.2ft), 20m (65.6ft), 25m (82.0ft), 30m (98.4ft), 40m (131ft), 50m (164ft), 75m (246ft), 100m (328ft) |
| Fiber Count | |
| Fiber Type |
