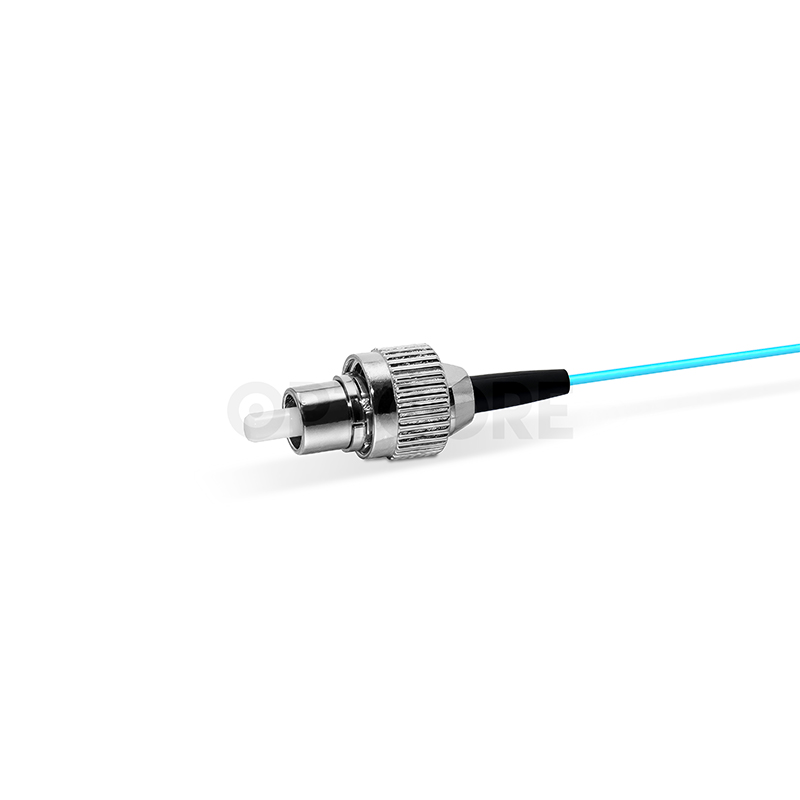

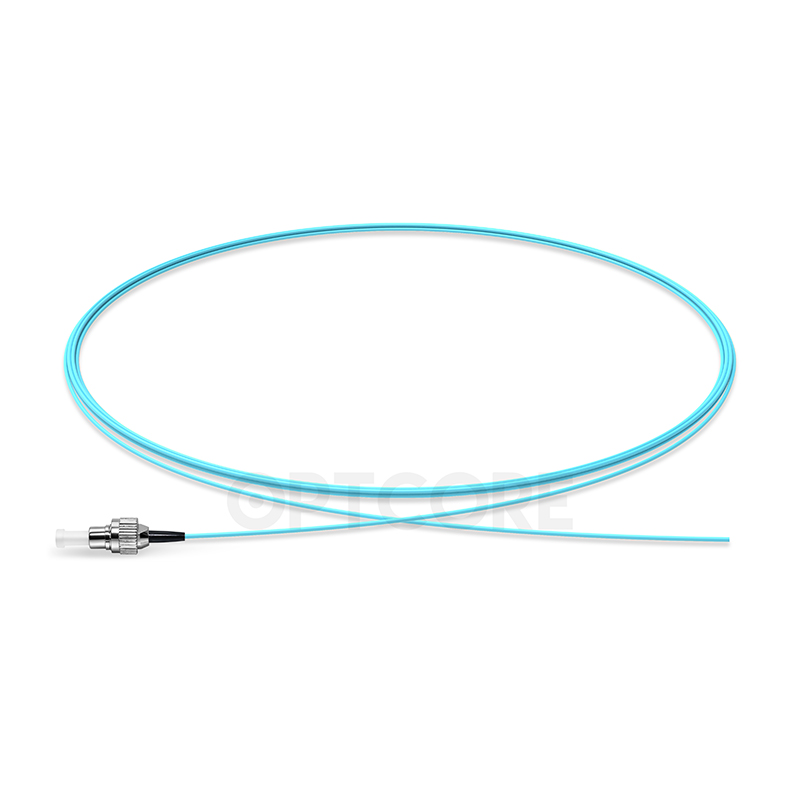

FC/UPC Multimode 50/125µm OM3 PVC 0.9mm Simplex Fiber Optic Pigtail
Price range: US$ 1.50 through US$ 24.30 (Excl. VAT)
Each FC Multimode 50/125µm 10G OM3 Simplex Fiber Optic Pigtail (0.9mm, UPC Polish, PVC/OFNR) has passed the Insertion Loss, Return Loss Test, and End-face Inspection in the factory to complies and exceeds industry standards.
Customized Fiber PigtailFC Multimode 50/125µm 10G OM3 Simplex Fiber Optic Pigtail (Customized Length, UPC Polish, 0.9mm, PVC/OFNR, Aqua)
Optcore offers simplex FC 10G OM3 fiber optic pigtails at a very competitive price. Our FC OM3 fiber optic pigtail comprises an exposed 50/125μm 10G OM3 multimode fiber cable at one end and a pre-installed simplex FC connector at the other end. This OM3 fiber optic cable is a laser-optimized multimode fiber (LOMMF) cable for use with 10 Gigabit Ethernet applications, it features extremely high bandwidth, providing nearly three times the bandwidth over conventional 62.5/125µm multimode fiber. The fiber optic pigtails are commonly used to splice the fiber in the cable so that they can be connected to the patch panel or equipment. This pigtail features a typical 900μm tight-buffered cable as default. Available in different lengths, jacket materials, polish, and cable diameters, Optcore’s fiber optic pigtail can be ordered to customize any fiber optic protocol to meet your different network applications.
Features
• Low insertion loss
• High back reflection loss
• Stable capability and high reliability
• Superior qualified standard PC polishing
• Boots in a variety of colors
• PVC jacket as default, LSZH optional
• 0.9mm as default, 2.0mm and 3.0mm cable optional
• 100% inspected for optical characteristics before shipment
• Customized specifications are available
Specification
| Fiber Type | 50/125µm 10G OM3 | Fiber Count | Simplex (1-fiber) |
| Connector Type | FC | Polish | UPC |
| Cable Length | 1m,2m,3m …5m or Customize | Cable Diameter | 0.9 mm as default |
| Tensile Strength | 5N (0.9mm), 70N (2.0mm) | Length Tolerance | +/- 1cm |
| Insertion Loss | ≤0.3dB | Return Loss | ≥20dB |
| Repeatability | ≤0.2dB | Interchangeability | ≤0.2dB |
| Jacket Material | PVC (OFNR riser-rated) as default | Jacket Color | Aqua |
| Environment | Operating: -20°C to 70°C Storage: -40°C to 85°C |
Compliance | RoHS |
| Application | Optical fiber communications system Optical fiber access networks Optical fiber CATV Optical fiber test equipment Optical fiber data communication |
Application | Premises Distribution Local Area Networks (LAN) Fiber-to-the-Home (FTTX) Device Terminations |
Ordering Information
| Optcore Part Number | Description |
| FC-OM3-S1M | 1M Simplex FC 50/125μm 10G OM3 Multimode Fiber Optic Pigtail |
| FC-OM3-S2M | 2M Simplex FC 50/125μm 10G OM3 Multimode Fiber Optic Pigtail |
| FC-OM3-S3M | 3M Simplex FC 50/125μm 10G OM3 Multimode Fiber Optic Pigtail |
| FC-OM3-S4M | 4M Simplex FC 50/125μm 10G OM3 Multimode Fiber Optic Pigtail |
| FC-OM3-S5M | 5M Simplex FC 50/125μm 10G OM3 Multimode Fiber Optic Pigtail |
| FC-OM3-SxM | Custom Length xM Simplex FC 50/125μm 10G OM3 Multimode Fiber Optic Pigtail |
Download
| Weight | N/A |
|---|---|
| Connector | |
| Polish Type | |
| Cable Length | 1m (3.3ft), 2m (6.6ft), 3m (9.8ft), 5m (16.4ft), 7m (23.0ft), 10m (32.8ft), 15m (49.2ft), 20m (65.6ft), 25m (82.0ft), 30m (98.4ft), 40m (131ft), 50m (164ft), 75m (246ft), 100m (328ft) |
| Fiber Count | |
| Fiber Type |
