Mellanox MMA2L20-AR-BXD Compatible 25G SFP28 BiDi 1330nm-TX/1270nm-RX 10km Transceiver
US$ 36.00 (Excl. VAT)

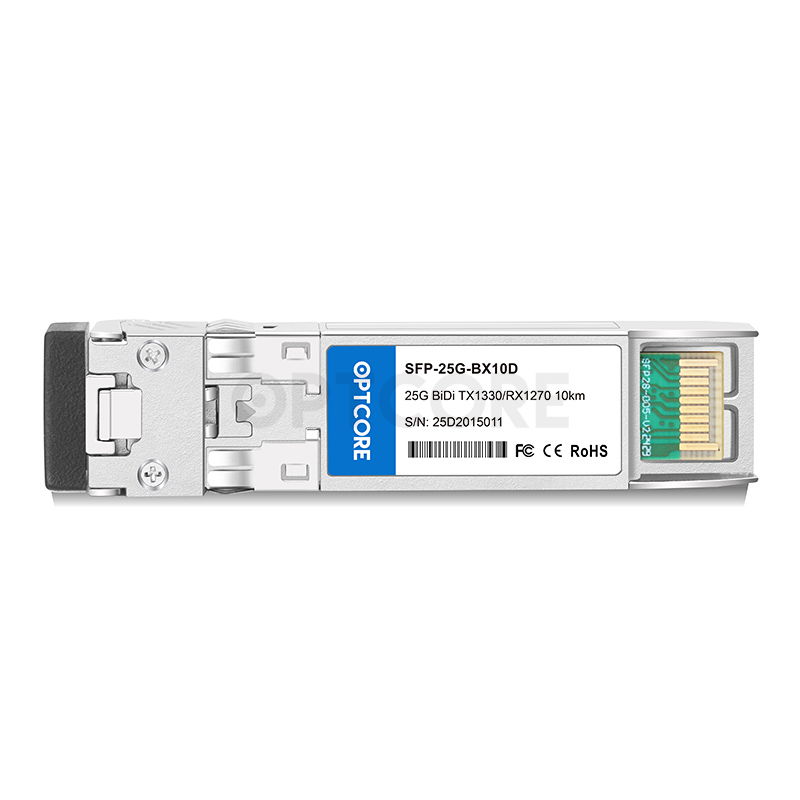

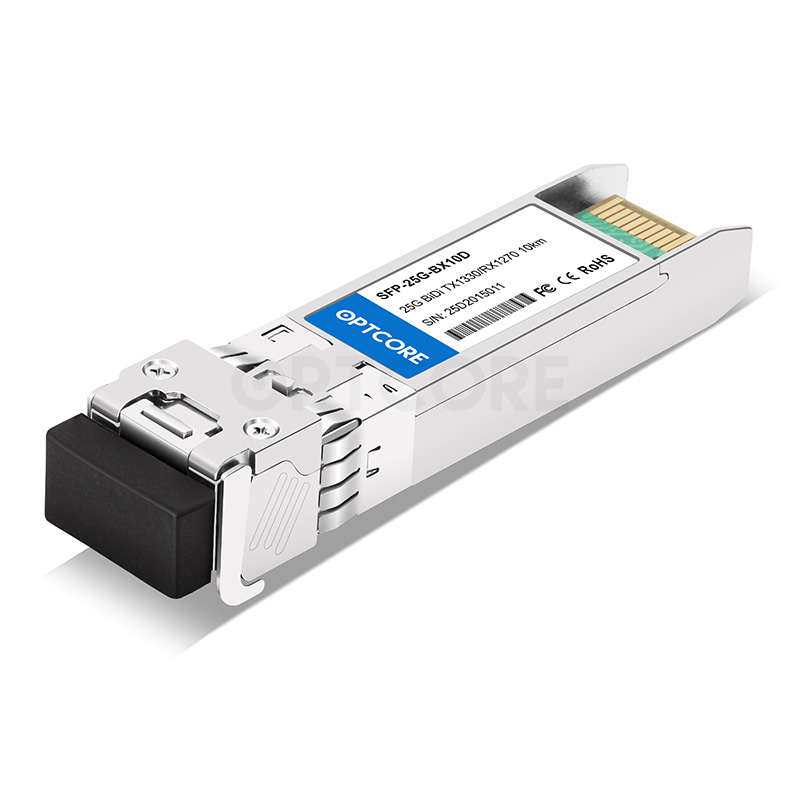

25GBASE-BX-D SFP28 BiDi Transceiver (SMF, 1330nm-TX/1270nm-RX, 10km, LC, DOM) for Mellanox 25G Data Center Switch.
Similar Products:
Mellanox MMA2L20-AR-BXD Compatible 25GBASE-BX-D SFP28 BiDi Transceiver (SMF, 1330nm-TX/1270nm-RX, 10km, LC, DOM)
This 25GBASE-BX-D SFP28 Transceiver is equivalent to Mellanox MMA2L20-AR-BXD 25G SFP28 BiDi 10km Transceiver. The 25G transceiver has been programmed before shipping to ensure work well in the 25G port of Mellanox Ethernet switches, routers, network interface cards (NICs) and storage networking equipment. It provides a cost-effective third party replacement to the over-priced original Mellanox MMA2L20-AR-BXD 25GBASE-BX SFP28 module.
Features
• Functionally identical to Mellanox MMA2L20-AR-BXD 25GBASE-BX-D SFP28 BiDi transceiver
• 1330nm DFB transmitter, 1270nm PIN photo-detector
• Distance up to 10km on single-mode fiber
• Single LC connector
• Built-in digital diagnostic functions
• Single 3.3V power supply
• Metal enclosure, for lower EMI
• RoHS compliant and lead-free
Specification
| Compatible OEM Part Number | MMA2L20-AR-BXD | Optcore Part Number | SFP-25G-BX10-D-MEL |
| Form Factor | SFP28 | Data Rate | 25 Gb/s |
| Wavelength | 1330nm-TX/1270nm-RX | Fiber Type | SMF |
| Max Distance | 10 km | Optical Components | DFB/PIN |
| Transmitter Power | -5.0 ~ 2.0 dBm | Extinction ratio | > 3.5 dB |
| Receiver Sensitivity | < -13.3 dBm | Receiver Overload | > 0.5 dBm |
| Connector | LC Simplex | Digital Diagnostic Monitoring (DDM/DOM) | Yes |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.03 kg |
| Application | 25GBASE-BX Ethernet CPRI 10 |
Compliance | IEC/EN 61000-4-2, IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS, MSA |
Download
Note: All trademarks, products and company names mentioned are the property of their respective owners and are used for comparative purposes only. This product is NOT certified or endorsed by Mellanox.
| Weight | 0.03 kg |
|---|
