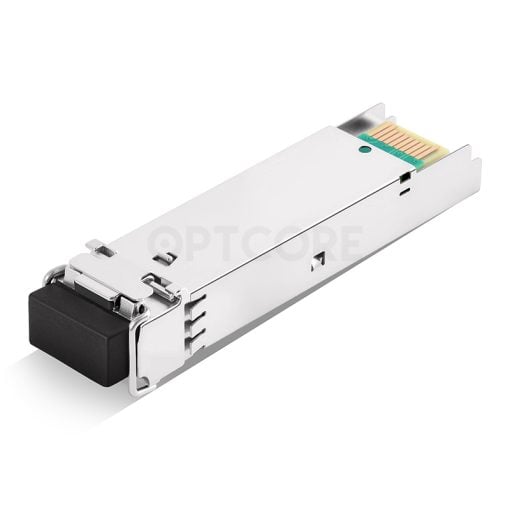

HW SFP-FE-SX-MM1310 Compatible 100BASE-FX SFP 1310nm 2km Transceiver
US$ 6.00 (Excl. VAT)
Good quality HW SFP-FE-SX-MM1310 compatible 100BASE-FX SFP Transceiver (MMF, 1310nm, 2km, LC, DDM).
Similar Products
HW SFP-FE-SX-MM1310 Compatible 100BASE-FX SFP Transceiver (MMF, 1310nm, 2km, LC)
Optcore’s OSP155-312DCR-HW is a high-performance small form factor pluggable (SFP) transceiver for 100BASE-FX Fast Ethernet application. It fully complies with the SFP Multi-Sourcing Agreement (MSA) and can be used on the MSA compliant networking equipment.
The 100BASE-FX SFP transceiver is tested to be compatible with HW networking equipment including Ethernet Switches, Ethernet Routers, Network Interface Cards (NICs) and Ethernet Media Converters. The OSP155-312DCR-HW is an ideal equivalent to HW SFP-FE-SX-MM1310 100BASE-FX SFP module but with much lower price, which provides a reliable compatible SFP optics transceiver solution for system integrator, distributors and end users in network infrastructure and fiber cabling.
The 100BASE-FX SFP transceiver consists of the below sections: the LD driver, the limiting amplifier, the FP laser and the PIN photo-detector. The SFP transceiver module is a Class 1 laser product complies with FDA/CDRH and IEC-60825 standards.
Features
• Support Up to 155Mb/s data links
• Up to 2km on 50/125µm MMF
• Compliant with SFP MSA standard SFF-8074i
• Compliant with IEEE 802.3z
• Hot-pluggable SFP footprint
• Single 3.3V power supply
• LC Duplex connector
• 1310nm FP laser transmitter and InGaAs PIN receiver
• Low power dissipation
• Metal enclosure provides lower EMI
• ROHS compliant and Lead-Free
Specification
| Compatible Compatible OEM Part Number | SFP-FE-SX-MM1310 | Optcore Part Number | OSP155-312DCR-HW |
| Form Factor | SFP | Data Rate | 155Mb/s |
| Wavelength | 1310 nm | Fiber Type | MMF |
| Max Distance | 2 km | Optical Components | FP/PIN |
| Transmitter Power | -19 ~ -14 dBm | Extinction ratio | > 10 dB |
| Receiver Sensitivity | < -28 dBm | Receiver Overload | > -3 dBm |
| Connector | LC Duplex | Digital Diagnostic Monitoring | Yes |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.03 kg |
| Application | 100Base Fast Ethernet, SDH OC-3
SONET STM-1, FTTx |
Compliance | IEC/EN 61000-4-2,IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS |
Compatibility
• S5720-32P-EI-AC
• S5720-52P-EI-AC
• S5720-32X-EI-AC
• S5720-32X-EI-DC
• S5720-32X-EI-24S-AC
• S5720-32X-EI-24S-DC
• S5720-50X-EI-AC
• S5720-50X-EI-DC
• S5720-50X-EI-46S-AC
• S5720-50X-EI-46S-DC
• S5720-52X-EI-AC
• S5720-36PC-EI-AC
• S5720-56PC-EI-AC
• S5720-36C-EI-28S-AC
• S5720-36C-EI-28S-DC
• S5720-36C-EI-AC
• S5720-36C-EI-DC
• S5720-36C-PWR-EI-AC
• S5720-36C-PWR-EI-DC
• S5720-56C-EI-48S-AC
• S5720-56C-EI-48S-DC
• S5720-56C-EI-AC
• S5720-56C-EI-DC
• S5720-56C-PWR-EI-AC
• S5720-56C-PWR-EI-DC
• S5720-56C-PWR-EI-AC1
• S7700 Series Smart Routing Switches: S7703, S7706, S7712
• S9700 Series Terabit Routing Switches: S9703, S9706, S9712
Download
Note: All trademarks, products and company names mentioned are the property of their respective owners and are used for comparative purposes only. This product is not certified or endorsed by HW.
