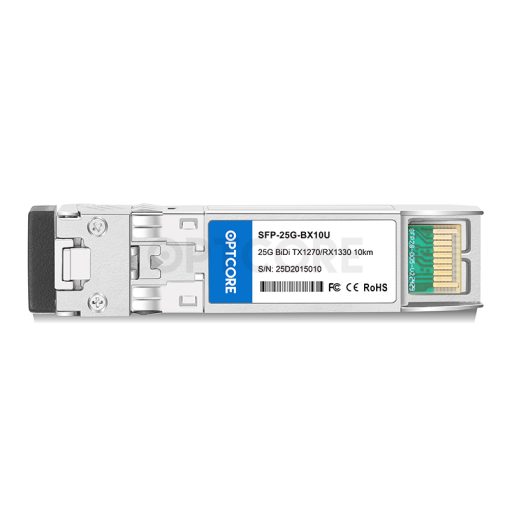

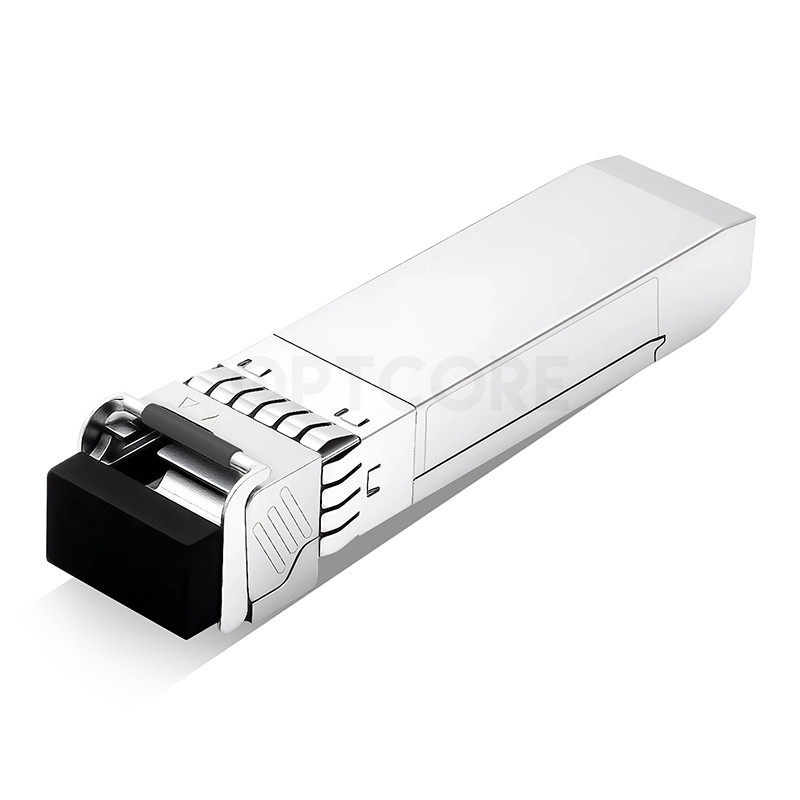

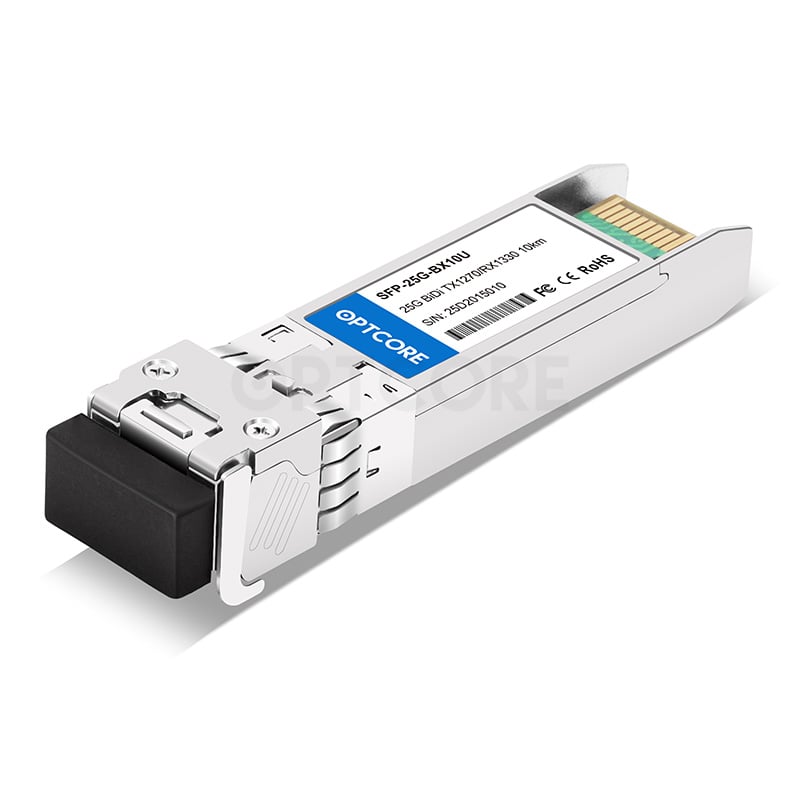

Generic Compatible 25G BiDi SFP28 1270nm-TX/1330nm-RX 10km Transceiver
US$ 36.00 (Excl. VAT)
25GBASE-BX-U SFP28 BiDi Optical Transceiver (SMF, 1270nm-TX/1330nm-RX, 10km, LC, DOM).
Similar Products:
Generic Compatible 25GBASE-BX-U SFP28 BiDi Transceiver (SMF, 1270nm-TX/1330nm-RX, 10km, LC, DOM)
Optcore’s SFP-25G-BX10-U is a high performance and cost effective BiDi SFP28 optical Transceiver for 25 Gigabit Ethernet long reach application. This SFP28 LR optics module features a highly reliable 1270nm DFB transmitter and 1330nm PIN photo-detector into a LC optical connector, providing links up to 10km over single mode fiber.
The BiDi SFP28 transceiver optics complies with the current specifications of IEEE 802.3, SFF-8472, SFF-8402, SFF-8432 and SFF-8431. It’s suitable for use with 25GbE Ethernet switches, routers, network interface cards (NICs) and storage networking equipment. The BiDi SFP28 optics offers the most power-efficient way to meet the growing needs of the next-generation data center networking environment.
Features
• Hot-pluggable SFP28 form factor
• Support for 25Gb/s data rate
• 1270nm DFB transmitter, 1330nm PIN photo-detector
• Distance up to 10km on single-mode fiber

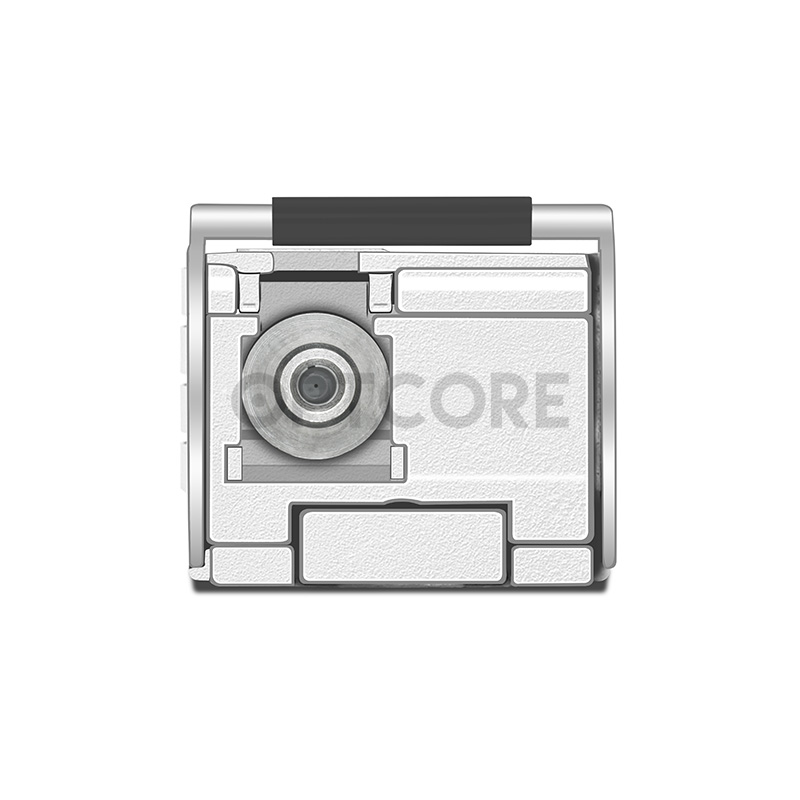

• Single LC connector
• Built-in digital diagnostic functions
• Single 3.3V power supply
• Metal enclosure, for lower EMI
• RoHS compliant and lead-free
Specification
| Product Series | Optical Transceiver | Optcore Part Number | SFP-25G-BX10-U |
| Form Factor | SFP28 | Data Rate | 25 Gb/s |
| Wavelength | 1270nm-TX/1330nm-RX | Fiber Type | SMF |
| Max Distance | 10 km | Optical Components | DFB/PIN |
| Transmitter Power | -5.0 ~ 2.0 dBm | Extinction ratio | > 3.5 dB |
| Receiver Sensitivity | < -13.3 dBm | Receiver Overload | > 0.5 dBm |
| Connector | LC Simplex | Digital Diagnostic Monitoring | Yes |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.03 kg |
| Application | 25GBASE-BX Ethernet CPRI 10 |
Compliance | IEC/EN 61000-4-2, IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS, MSA |
Download
Note: Specifications and product availability are subject to change without notice. Optcore assumes no responsibility for inaccuracies contained herein.
