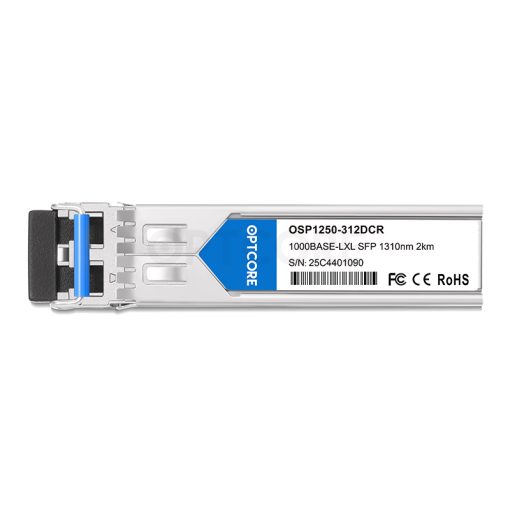

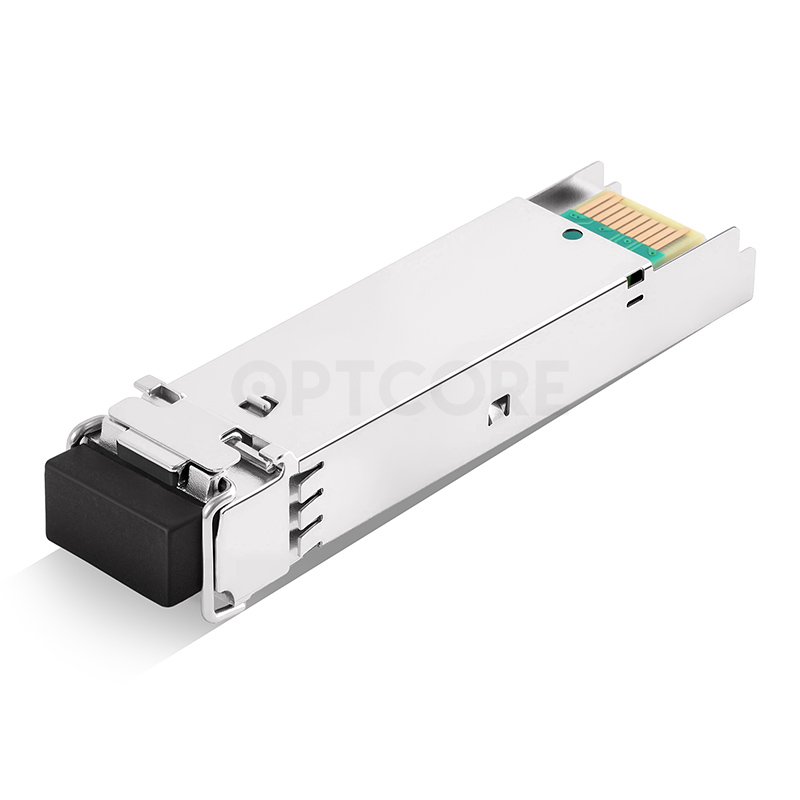

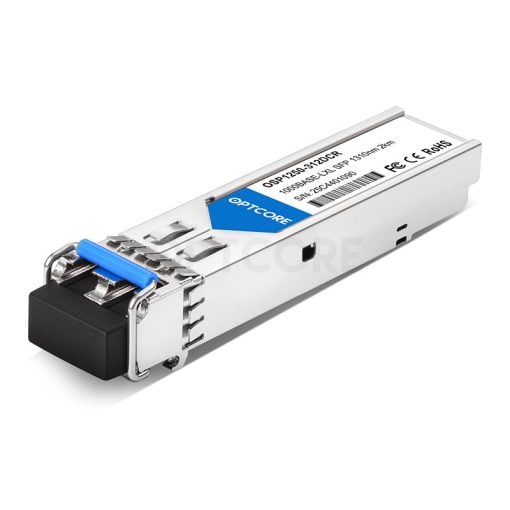

Generic Compatible 1000BASE-LXL SFP Multimode 1310nm 2km Transceiver
US$ 5.00 (Excl. VAT)
Good quality 1.25G/s SFP SX Transceiver Module (Multi-mode, 1310nm, 2km, LC, Optional DDM).
1.25Gb/s Multi-mode 1310nm 2km SFP SX Optical Transceiver Module for Gigabit Ethernet and 1G Fibre Channel
Optcore’s OSP1250-312xCR is a high performance and cost effective small form factor pluggable (SFP) transceiver module for 1000BASE-SX Gigabit Ethernet per IEEE802.3z and 1G Fiber Channel application. It supports dual data-rate of 1.25Gbps/1.06Gbps and 2km transmission distance with 50/125µm multi-mode OM2 fiber.
This 1G SFP SX transceiver module fully complies with the SFP Multi-Sourcing Agreement (MSA) and can be used on MSA compliant SFP ports of optical networking equipment. The transmitter section uses a 1310nm FP laser that is a class 1 laser product compliant according to International Safety Standard IEC 60825. The receiver section uses a high-speed PIN photodiode integrated with a trans-impedance preamplifier (TIA).
Additionally, the OSP1250-312xCR family SFP optics module also provides an optional digital diagnostic interface per SFF-8472, which provides real-time monitoring of the transceiver temperature, supply voltage, laser bias current, laser average output power and received optical power. These parameters are internally calibrated by default.
Features
• Support Up to 1.25Gb/s data links
• Compliant with SFP MSA standard
• Compliant with IEEE 802.3z
• Hot-pluggable SFP footprint
• Single 3.3V power supply

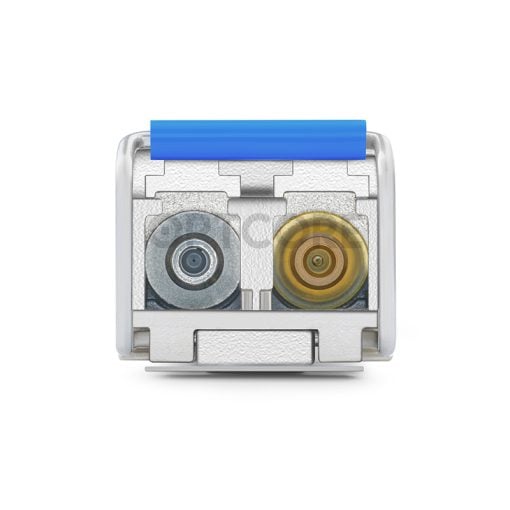

• LC Duplex connector
• Low power dissipation
• Metal enclosure provides lower EMI
• ROHS compliant and Lead-Free
• Optional Digital Diagnostic Monitor Interface
Specification
| Product Series | Fiber Optical Transceiver | Optcore Part Number | OSP1250-312xCR |
| Form Factor | SFP | Data Rate | 1.25 Gb/s |
| Wavelength | 1310 nm | Cable Type | MMF |
| Max Distance | 2 km over OM2 | Optical Components | FP/PIN |
| Transmitter Power | -9 ~ -3 dBm | Extinction ratio | > 9 dB |
| Receiver Sensitivity | < -18 dBm | Receiver Overload | > -3 dBm |
| Connector | LC Duplex | Digital Diagnostic Monitoring | Yes or No |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.025 kg |
| Application | 1G Fiber Channel, Switch to Switch Interface Gigabit Ethernet, Switched Backplane Applications Broadband aggregation and wireless infrastructure Router/Server Interface Other Optical networking |
Compliance | IEC/EN 61000-4-2,IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS |
Ordering Information
| Part number | Description |
| OSP1250-312NCR | 1.25Gb/s SFP Transceiver Module, Multi-mode, 1310nm, 2km, LC, 0ºC~+70ºC |
| OSP1250-312DCR | 1.25Gb/s SFP Transceiver Module, Multi-mode, 1310nm, 2km, LC, DDM, 0ºC~+70ºC |
Download
Note: Specifications and product availability are subject to change without notice. Optcore assumes no responsibility for inaccuracies contained herein.
| Weight | 0.03 kg |
|---|
