Generic Compatible 16G Fibre Channel SFP+ SW 850nm 100m Transceiver
US$ 45.00 (Excl. VAT)
Good quality 16G SFP+ SW Transceiver Module (MMF, 850nm, 100m, LC, DOM).
16G SFP+ SW Transceiver Module for Fibre Channel (16GFC) (MMF, 850nm, 100m, LC, DOM)

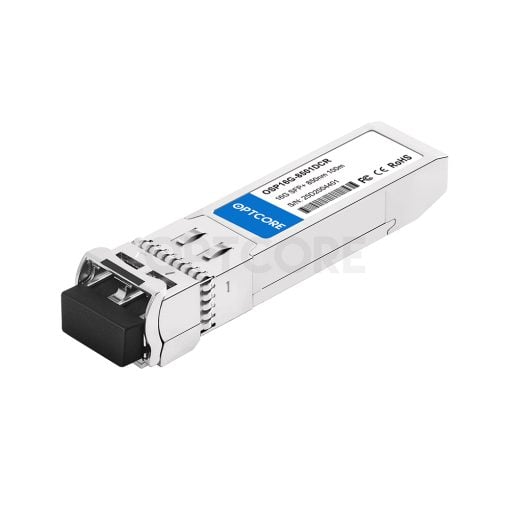

Optcore’s OSP16G-8501DCR is a small form factor pluggable SFP+ transceiver module for 16G Fibre Channel (16GFC) applications. It supports links up to 100m over OM3 multimode fiber. This module features a highly reliable 850nm VCSEL transmitter and PIN photo-detector into a duplex LC optical connector. The 16G SFP+ SW is a multi-rated 850nm optical transceiver that supports 14.025/8.5/4.25G Fibre Channel specifications. It complies with Small Form Factor Pluggable Multi-Sourcing Agreement (MSA) SFF-8431 Rev. 4.1 and SFF-8472 Rev. 11.0. It’s suitable for use with SAN switches, routers, network interface cards (NICs) and other storage networking equipment.
Features
• Up to 14.025Gb/s bi-directional data links
• Optical interface compliant to IEEE 802.3ae
• Electrical interface compliant to SFF-8431
• Hot Pluggable SFP+ footprint
• 850nm VCSEL transmitter, PIN photo-detector
• Built-in CDR with shut-off control
• Single +3.3V power supply
• Advanced firmware allow customer system
• Cost effective SFP+ solution enables higher port densities and greater bandwidth
• RoHS compliant and Lead-free
Specification
| Product Series | Fiber Optical Transceiver | Optcore Part Number | OSP16G-8501DCR |
| Form Factor | SFP+ | Data Rate | 14.025 Gb/s |
| Wavelength | 850 nm | Fiber Type | MMF |
| Max Distance | 100m on OM3 | Optical Components | VCSEL/PIN |
| Transmitter Power | -6.5 ~ -1.2 dBm | Extinction ratio | > 3.5 dB |
| Receiver Sensitivity | < -10.5 dBm | Receiver Overload | > -1 dBm |
| Connector | LC Duplex | Digital Diagnostic Monitoring | Yes |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.03 kg |
| Application | High-speed storage area networks − Switches and hubs − Network interface cards − Mass storage systems − Host bus adapters Tri-Rate 4G/8G/16G Fibre Channel |
Compliance | IEC/EN 61000-4-2,IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS |
Download
Note: Specifications and product availability are subject to change without notice. Optcore assumes no responsibility for inaccuracies contained herein.
