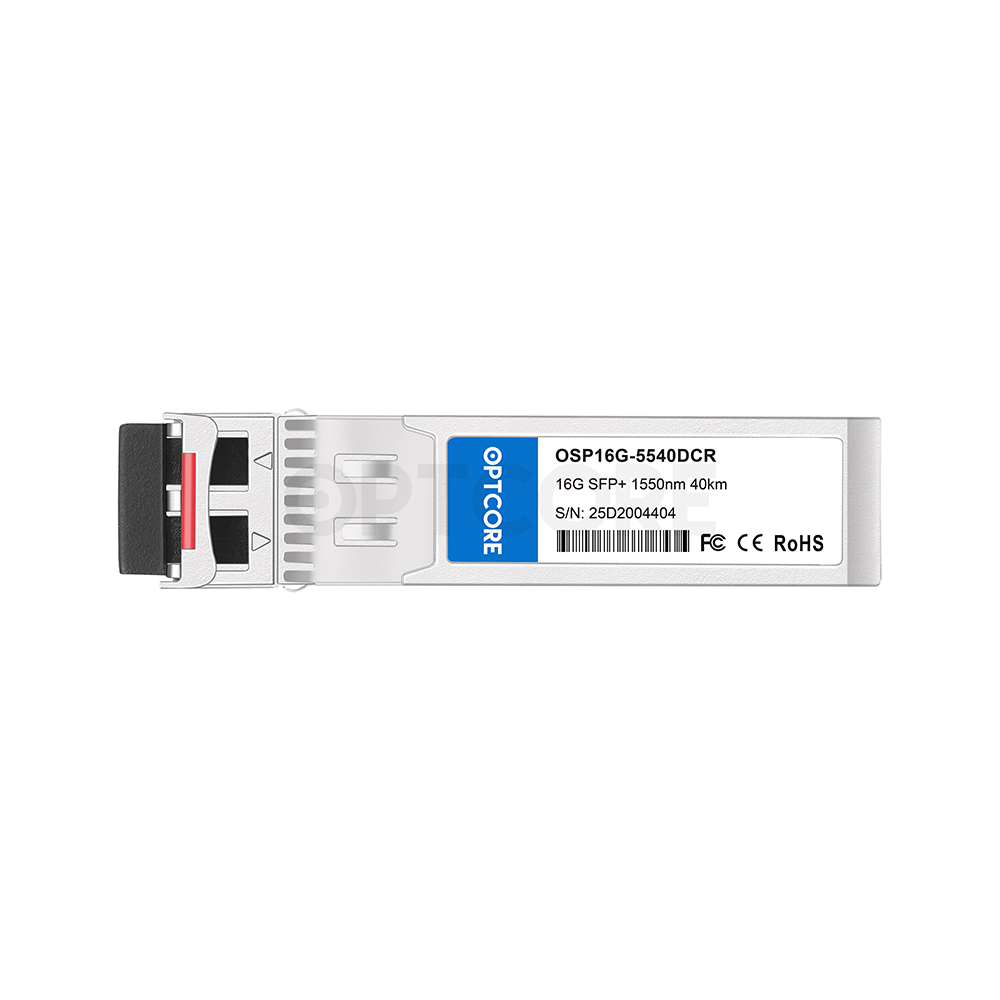

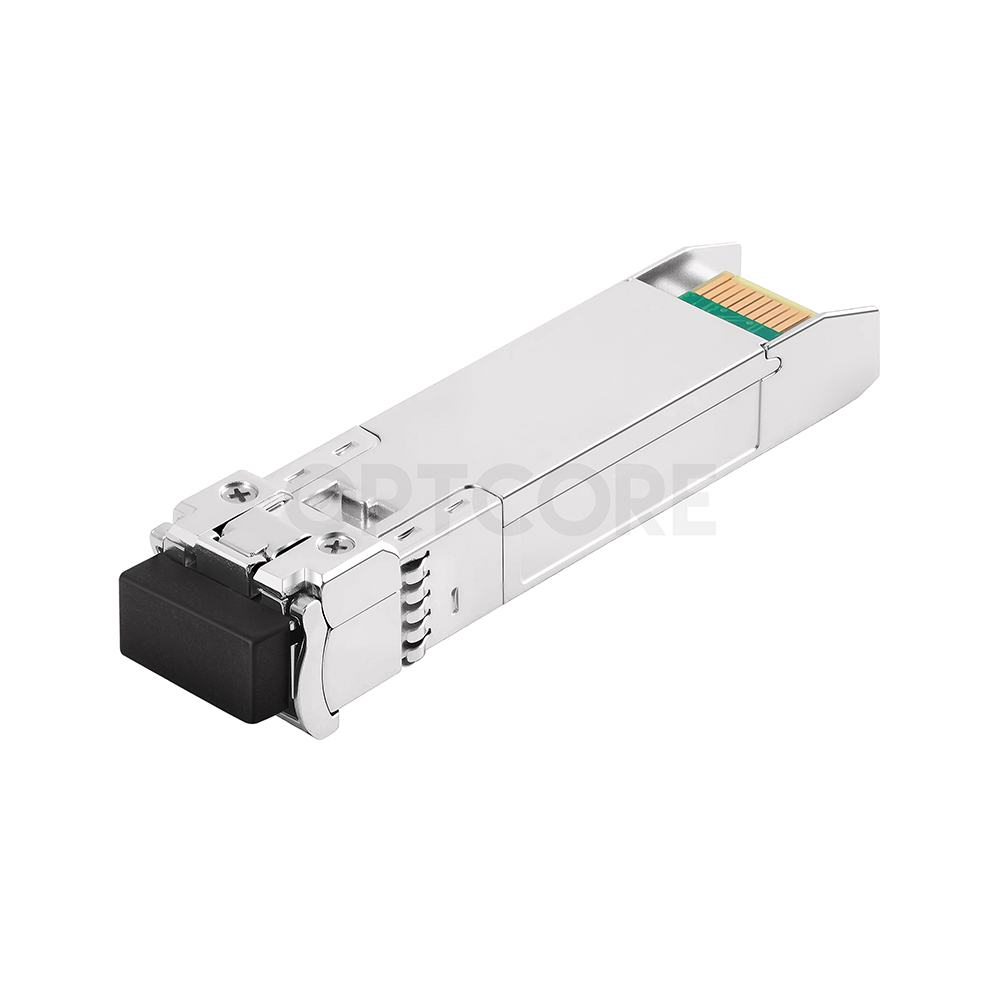

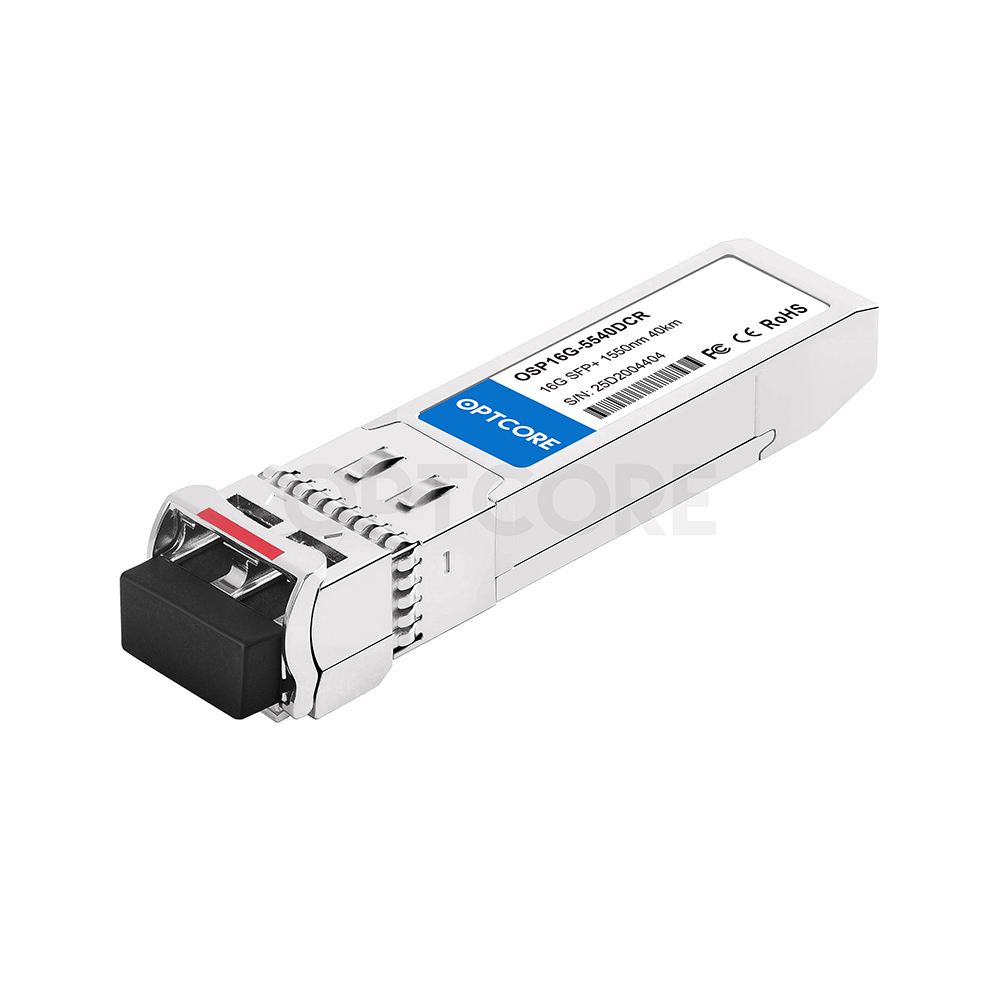

Generic Compatible 16G Fibre Channel SFP+ 1550nm 40km Transceiver
US$ 359.00 (Excl. VAT)
16G SFP+ Fiber Channel Transceiver Module (SMF, 1550nm, 40km, LC, DOM) for SAN switch.
16G SFP+ ER Transceiver Module for 16GFC Fiber Channel (SMF, 1550nm, 40km, LC, DOM)
This 16G SFP+ ER transceiver is a small form factor pluggable longwave transceiver for 16G Fibre Channel (16GFC) long-reach applications. It supports links up to 40km over single-mode fiber. This module features a highly reliable 1550nm EML transmitter and PIN photo-detector into a duplex LC optical connector. It is a multi-rated optical transceiver that supports 14.025/8.5/4.25G Fibre Channel specifications. It complies with Small Form Factor Pluggable Multi-Sourcing Agreement (MSA) SFF-8431 Rev. 4.1 and SFF-8472 Rev.11.0. It’s suitable for use with SAN switches, routers, network interface cards (NICs) and other storage networking equipment.
Features
• Up to 14.025Gb/s bi-directional data links
• Optical interface compliant to IEEE 802.3ae
• Electrical interface compliant to SFF-8431
• Hot Pluggable SFP+ footprint
• 1550nm EML laser and PIN photodiode, up to 40km for SMF transmission
• Built-in digital diagnostic functions
• Single +3.3V power supply
• Cost-effective SFP+ solution enables higher port densities and greater bandwidth
• RoHS compliant and Lead-free
Specification
| Product Series | Fiber Optical Transceiver | Optcore Part Number | OSP16G-5540DCR |
| Form Factor | SFP+ | Data Rate | 16Gb/s |
| Wavelength | 1550 nm | Fiber Type | SMF |
| Max Distance | 40km | Optical Components | EML/PIN |
| Transmitter Power | -1 ~ 3 dBm | Extinction ratio | > 8.2 dB |
| Receiver Sensitivity | < -14 dBm | Receiver Overload | > 0.5 dBm |
| Connector | LC Duplex | Digital Diagnostic Monitoring | Yes |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.03 kg |
| Application | High-speed storage area networks − Switches and hubs − Network interface cards − Mass storage systems − Host bus adapters Tri-Rate 4G/8G/16G Fibre Channel |
Compliance | IEC/EN 61000-4-2,IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS |
Download
Note: Specifications and product availability are subject to change without notice. Optcore assumes no responsibility for inaccuracies contained herein.
