Customized Dual Compatibility 10G SFP+ Passive DAC Cable

Price range: US$ 20.00 through US$ 36.00 (Excl. VAT)

Custom your own 10G SFP+ DAC cable (0.5~7m, Passive) compatible for mixed 10G switches (devices) of different brands.

Compatible Brand

Compatible Brand End B

Clear

Customized Dual Compatibility 10G SFP+ Direct Attach Copper Cable for Mixed Different Devices (0.5~7M, SFP+ to SFP+, Passive)

Can not find a custom 10G SFP+ DAC cable for your own network device? Build and order your own custom 10G SFP+ DAC cable compatibility online. With our easy-to-use online DAC cable compatibility configurator, you can create a customized length 10G SFP+ DAC cable compatible with more than 100+ brands, with no minimum order quantity and quick delivery. This is a great way to optimize your wire network with this low-price customized 10G SFP+ DAC cable.

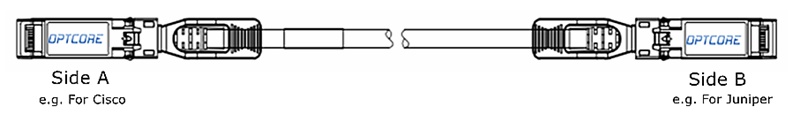

This custom SFP+ direct-attach cable can be programmed with different codes on the two connectors, allowing you to connect two mixed-brand network devices. This customized SFP+ DAC cable supports 10G connectivity to meet the bandwidth requirement in data centers and cloud-based services. It is suitable for interconnectivity between various platforms’ switches, servers, and adapters.

Customized Compatibility 1m(3ft) 10G SFP+ Passive Direct Attach Copper Cable for Two Different Devices

Features

• Customized different compatibility on two SFP+ ends for between switches or other devices of different brands
• Support for multi-gigabit data rates up to 10.5Gbps
• I/O Connector designed for high-speed differential signal applications
• Improved Pluggable Form Factor (IPF) compliant with enhanced EMI/EMC performance
• Single 3.3V power supply
• Operating temperature range: 0 to 70°C
• RoHS Compliant and Lead-Free

Specification

OEM Part Number	NA	Optcore Part Number	SFP-10G-DACxM-CST2
Form Factor	SFP+ DAC Cable	Data Rate	10Gb/s
Passive or actively equalized	Passive	Supply Voltage	3.3V
Cable Length	0.5m(1.6ft), 1m(3.3ft), 2m(6.6ft), 3m(9.8ft) 4m(13.1ft), 5m(16.4ft), 7m(22.3ft)	Cable impedance	100 Ω
Cable Type	Twinax	Wire Gauge	30AWG for ≤3m, 24AWG for ≥4~7m
Minimum cable bend radius	25~35 mm	Cable Jacket Type	PVC
Connector	SFP+	Digital Diagnostic Monitoring	N/A
Environment	Operating: 0°C to 70°C Storage: -40°C to 85°C	Weight	0.1 kg for 1 meter
Application	Storage Area Networks( SAN) Network Attached Storage Switched fabric I/O High-density connections between networking equipment Datacenter cabling infrastructure	Compliance	SFF-8472,SFF-8431 IEC/EN 61000-4-2 MIL-STD-883E, RoHS

Compatible Platform

This 10G SFP+ DAC Twinax cable is compatible with a wide range of customized compatible Brand networking devices.

• Compatible with Cisco 10G SFP+ DAC
• Compatible with Arista Networks 10G SFP+ DAC
• Compatible with HPE 10G SFP+ DAC
• Compatible with HPE H3 10G SFP+ DAC
• Compatible with Juniper 10G SFP+ DAC
• Compatible with Brocade 10G SFP+ DAC
• Compatible with 3COM 10G SFP+ DAC
• Compatible with A10 Networks 10G SFP+ DAC
• Compatible with Accedian Networks 10G SFP+ DAC
• Compatible with Accton 10G SFP+ DAC
• Compatible with Adtran 10G SFP+ DAC
• Compatible with Advantech 10G SFP+ DAC
• Compatible with Aerohive Networks 10G SFP+ DAC
• Compatible with Alcatel-Lucent 10G SFP+ DAC
• Compatible with Allied Telesis 10G SFP+ DAC
• Compatible with ALLNET 10G SFP+ DAC
• Compatible with Alogic 10G SFP+ DAC
• Compatible with Amer Networks 10G SFP+ DAC
• Compatible with Antaira 10G SFP+ DAC
• Compatible with Apresia 10G SFP+ DAC
• Compatible with Arbor Networks 10G SFP+ DAC
• Compatible with ArcServe 10G SFP+ DAC
• Compatible with Aruba Networks 10G SFP+ DAC
• Compatible with Aryaka Networks 10G SFP+ DAC
• Compatible with Asante 10G SFP+ DAC
• Compatible with Asus 10G SFP+ DAC
• Compatible with ATEN 10G SFP+ DAC
• Compatible with ATTO 10G SFP+ DAC
• Compatible with AudioCodes 10G SFP+ DAC
• Compatible with Avago 10G SFP+ DAC
• Compatible with Avaya (ex. Nortel) 10G SFP+ DAC
• Compatible with Avocent 10G SFP+ DAC
• Compatible with AVM 10G SFP+ DAC
• Compatible with Axis 10G SFP+ DAC
• Compatible with Barnfind 10G SFP+ DAC
• Compatible with Barracuda Networks 10G SFP+ DAC
• Compatible with BDcom 10G SFP+ DAC
• Compatible with Belden 10G SFP+ DAC
• Compatible with Blackbox 10G SFP+ DAC
• Compatible with Blade Networks 10G SFP+ DAC
• Compatible with Blue Coat 10G SFP+ DAC
• Compatible with Brainboxes 10G SFP+ DAC
• Compatible with Broadcom 10G SFP+ DAC
• Compatible with BTI Syestems 10G SFP+ DAC
• Compatible with Buffalo 10G SFP+ DAC
• Compatible with Calix 10G SFP+ DAC
• Compatible with Cambium 10G SFP+ DAC
• Compatible with Ceragon Networks 10G SFP+ DAC
• Compatible with Checkpoint 10G SFP+ DAC
• Compatible with Chelsio 10G SFP+ DAC
• Compatible with Ciena 10G SFP+ DAC
• Compatible with Cisco-Linksys 10G SFP+ DAC
• Compatible with Citrix Systems 10G SFP+ DAC
• Compatible with ComNet 10G SFP+ DAC
• Compatible with CommScope 10G SFP+ DAC
• Compatible with Cradlepoint 10G SFP+ DAC
• Compatible with Cray 10G SFP+ DAC
• Compatible with CTC Union 10G SFP+ DAC
• Compatible with Cumulus Networks 10G SFP+ DAC
• Compatible with Dahua 10G SFP+ DAC
• Compatible with DATACOM 10G SFP+ DAC
• Compatible with DCN 10G SFP+ DAC
• Compatible with Dell Networking 10G SFP+ DAC
• Compatible with Delock 10G SFP+ DAC
• Compatible with Delta 10G SFP+ DAC
• Compatible with Dell EMC 10G SFP+ DAC
• Compatible with Digitus 10G SFP+ DAC
• Compatible with D-Link 10G SFP+ DAC
• Compatible with Draytek 10G SFP+ DAC
• Compatible with Edgecore 10G SFP+ DAC
• Compatible with Edimax 10G SFP+ DAC
• Compatible with Emulex 10G SFP+ DAC
• Compatible with EnGenius 10G SFP+ DAC
• Compatible with Enterasys 10G SFP+ DAC
• Compatible with Ericsson 10G SFP+ DAC
• Compatible with EtherWAN 10G SFP+ DAC
• Compatible with Evertz 10G SFP+ DAC
• Compatible with Extreme 10G SFP+ DAC
• Compatible with F5 Networks 10G SFP+ DAC
• Compatible with Fibrolan 10G SFP+ DAC
• Compatible with FireEye 10G SFP+ DAC
• Compatible with Fluke Networks 10G SFP+ DAC
• Compatible with Force10 10G SFP+ DAC
• Compatible with Forcepoint 10G SFP+ DAC
• Compatible with Fortinet 10G SFP+ DAC
• Compatible with Fujitsu 10G SFP+ DAC
• Compatible with GeoVision 10G SFP+ DAC
• Compatible with Gigamon 10G SFP+ DAC
• Compatible with H3 10G SFP+ DAC
• Compatible with Harmonic 10G SFP+ DAC
• Compatible with Hillstone 10G SFP+ DAC
• Compatible with Hirschmann 10G SFP+ DAC
• Compatible with Hitachi 10G SFP+ DAC
• Compatible with HP Storage (B-Series) 10G SFP+ DAC
• Compatible with HW 10G SFP+ DAC
• Compatible with IBM 10G SFP+ DAC

• Compatible with IMC Networks 10G SFP+ DAC
• Compatible with Infinera 10G SFP+ DAC
• Compatible with Intel 10G SFP+ DAC
• Compatible with Interlogix 10G SFP+ DAC
• Compatible with IP Infusion 10G SFP+ DAC
• Compatible with Ixia 10G SFP+ DAC
• Compatible with Kemp Technologies 10G SFP+ DAC
• Compatible with Keymile 10G SFP+ DAC
• Compatible with Korenix 10G SFP+ DAC
• Compatible with LANCOM 10G SFP+ DAC
• Compatible with Lantech 10G SFP+ DAC
• Compatible with L-com 10G SFP+ DAC
• Compatible with Lenovo 10G SFP+ DAC
• Compatible with LevelOne 10G SFP+ DAC
• Compatible with Longshine 10G SFP+ DAC
• Compatible with Lontopo 10G SFP+ DAC
• Compatible with Luxul 10G SFP+ DAC
• Compatible with Maipu 10G SFP+ DAC
• Compatible with Marconi 10G SFP+ DAC
• Compatible with McAfee 10G SFP+ DAC
• Compatible with Mellanox 10G SFP+ DAC
• Compatible with MikroTik 10G SFP+ DAC
• Compatible with Molex 10G SFP+ DAC
• Compatible with Moxa 10G SFP+ DAC
• Compatible with MRV 10G SFP+ DAC
• Compatible with Net Optics 10G SFP+ DAC
• Compatible with NetApp 10G SFP+ DAC
• Compatible with Netentsec 10G SFP+ DAC
• Compatible with Netgear 10G SFP+ DAC
• Compatible with Netis 10G SFP+ DAC
• Compatible with Netscaler 10G SFP+ DAC
• Compatible with NetScout 10G SFP+ DAC
• Compatible with Nokia 10G SFP+ DAC
• Compatible with Nokia Siemens Networks 10G SFP+ DAC
• Compatible with Nortel 10G SFP+ DAC
• Compatible with N-Tron 10G SFP+ DAC
• Compatible with Nutanix 10G SFP+ DAC
• Compatible with Omnitron 10G SFP+ DAC
• Compatible with OpenGear 10G SFP+ DAC
• Compatible with Oracle 10G SFP+ DAC
• Compatible with ORing 10G SFP+ DAC
• Compatible with Overture Networks 10G SFP+ DAC
• Compatible with Palo Alto Networks 10G SFP+ DAC
• Compatible with Panasonic 10G SFP+ DAC
• Compatible with Panduit 10G SFP+ DAC
• Compatible with Penguin Arctica 10G SFP+ DAC
• Compatible with Peplink 10G SFP+ DAC
• Compatible with Perle 10G SFP+ DAC
• Compatible with Planet 10G SFP+ DAC
• Compatible with ProfiTap 10G SFP+ DAC
• Compatible with Pulse Secure 10G SFP+ DAC
• Compatible with QLogic 10G SFP+ DAC
• Compatible with QNAP 10G SFP+ DAC
• Compatible with Quanta 10G SFP+ DAC
• Compatible with RAD 10G SFP+ DAC
• Compatible with Radware 10G SFP+ DAC
• Compatible with Raisecom 10G SFP+ DAC
• Compatible with Red Lion/Sixnet/N-Tron 10G SFP+ DAC
• Compatible with RiverStone 10G SFP+ DAC
• Compatible with Riverbed 10G SFP+ DAC
• Compatible with Rockwell 10G SFP+ DAC
• Compatible with Ruby Tech 10G SFP+ DAC
• Compatible with Ruckus Networks 10G SFP+ DAC
• Compatible with Ruijie 10G SFP+ DAC
• Compatible with Siemens 10G SFP+ DAC
• Compatible with SMC Networks 10G SFP+ DAC
• Compatible with Solarflare 10G SFP+ DAC
• Compatible with Sonicwall 10G SFP+ DAC
• Compatible with Sonnet 10G SFP+ DAC
• Compatible with Sony 10G SFP+ DAC
• Compatible with Sophos 10G SFP+ DAC
• Compatible with Speednt 10G SFP+ DAC
• Compatible with Spirent 10G SFP+ DAC
• Compatible with Supermicro 10G SFP+ DAC
• Compatible with Symantec 10G SFP+ DAC
• Compatible with Synology 10G SFP+ DAC
• Compatible with TE Connectivity 10G SFP+ DAC
• Compatible with Telco 10G SFP+ DAC
• Compatible with Tenda 10G SFP+ DAC
• Compatible with TG-NET 10G SFP+ DAC
• Compatible with TOPSEC 10G SFP+ DAC
• Compatible with TP-Link 10G SFP+ DAC
• Compatible with Transition Networks 10G SFP+ DAC
• Compatible with Transmode/Infinera 10G SFP+ DAC
• Compatible with Trend Micro 10G SFP+ DAC
• Compatible with TrendNet 10G SFP+ DAC
• Compatible with Tripp Lite 10G SFP+ DAC
• Compatible with Ubiquiti Networks 10G SFP+ DAC
• Compatible with UTT 10G SFP+ DAC
• Compatible with Volans 10G SFP+ DAC
• Compatible with Watchguard 10G SFP+ DAC
• Compatible with Xilinx 10G SFP+ DAC
• Compatible with Yamaha 10G SFP+ DAC
• Compatible with Zhone 10G SFP+ DAC
• Compatible with ZTE 10G SFP+ DAC
• Compatible with Zyx 10G SFP+ DAC

Download

Datasheet

Note: All trademarks, products, and company names mentioned are the property of their respective owners and are used for comparative purposes only. This product is NOT certified or endorsed by Customized brand.

Weight	0.1 kg
