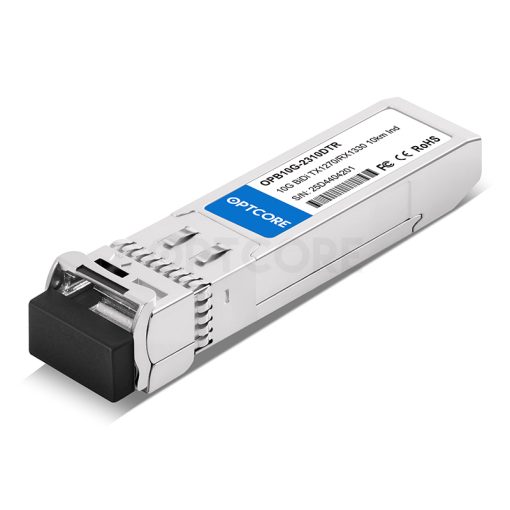

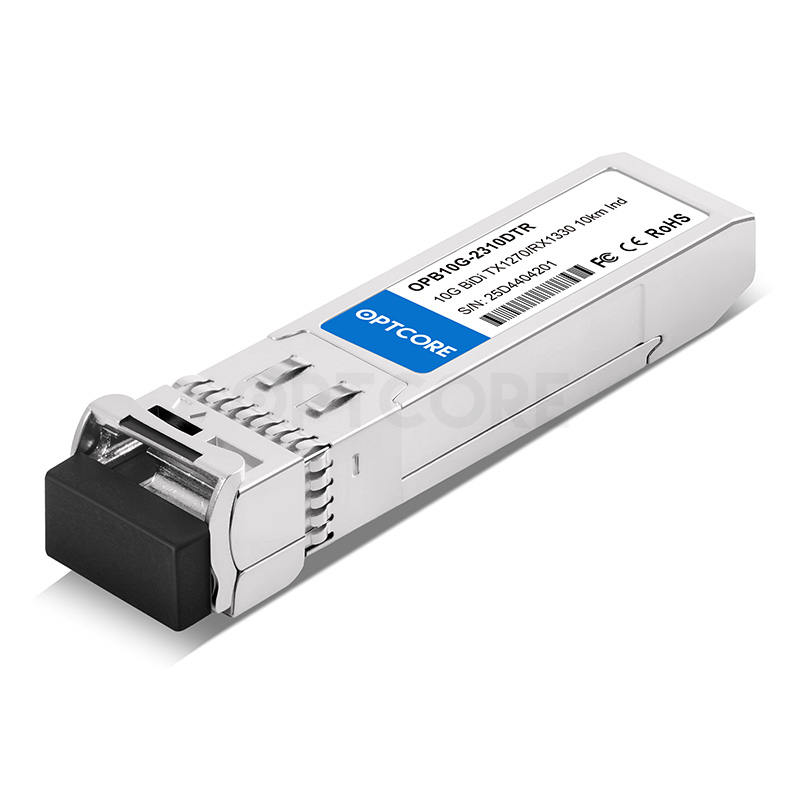

Cisco SFP-10G-BXU-I Compatible 10G SFP+ BiDi 1270nm-TX/1330nm-RX 10km Industrial Transceiver
US$ 23.00 (Excl. VAT)
Optcore 10G SFP+ BiDi 10km industrial transceiver for replacing Cisco SFP-10G-BXU-I, suitable for use in Cisco industrial Ethernet switches, industrial routers, industrial media converters, industrial network adapters, and other industrial networking devices.
This transceiver must be used in pairs with 10GBASE-BX10-D SFP+.
Optcore 10GBASE-BX10-U SFP+ Industrial Transceiver (1270nm-TX/1330nm-RX, 10km, LC, DOM, -40~85°C), Cisco SFP-10G-BXU-I Compatible
Buy a reliable industrial 10G SFP+ BiDi transceiver replacement for your Cisco SFP-10G-BXU-I at Optcore! This transceiver will work as a replacement for the original Cisco SFP-10G-BXU-I but at a very affordable price! It supports a 10km link distance over single mode fiber via an LC simplex connector. Built with hardened components, this SFP+ BiDi industrial transceiver is ruggedly designed to withstand extended industrial temperatures from -40°C to 85°C. It is suitable for extreme industrial environments such as telecommunication, data processing and management, industrial and factory automation, machine control, surveillance, mining, oil and gas, rail, intelligent transportation systems (ITSs), and other outdoor applications.
Features
• Compatible replacement for Cisco SFP-10G-BXU-I 10GBASE-BX10-U SFP+ industrial transceiver optics
• High-end industrial-grade components and Rugged design to ensure transceiver reliability
• Compliant with SFF-8431 and SFF-8472
• 10Gb/s serial optical interface compliant to 802.3ae
• Distance up to 10km on singlemode fiber cable
• Rugged SFP+ transceiver for industrial and outdoor networking such as industrial and factory automation, utilities, and smart cities
• Support wide operating temperature from -40°C to +85°C in industrial and harsh environments with extreme hot or cold conditions
• RoHS compliant and lead-free
Wide Operating Temperatures
Rugged design operates within a wide industrial temperature range (-40 to 85°C) for harsh and outdoor environments.
Industrial-grade Components
The industrial transceiver adopts high-quality electronic and optical components. Suitable for use in various industrial Ethernet networks.
Digital Diagnostic Monitoring
DDM/DOM function provides real-time monitoring of transmitted optical power, received optical power, laser bias current, temperature, and supply voltage.
Specification
| Compatible OEM Part# | SFP-10G-BXU-I | Manufacturer | OPTCORE |
| Manufacturer Part# | OPB10G-2310DTR-CSC | Form Factor | SFP+ |
| Data Rate | 10 Gbps | Wavelength | 1270nm-TX/1330nm-RX |
| Media Type | SMF | Max Distance | 10 km |
| Transmitter Type | DFB | Receiver Type | PIN |
| Transmitter Power | -6.0 ~ 0 dBm | Receiver Sensitivity | < -14.4 dBm |
| Extinction ratio | > 3.5 dB | Receiver Overload | > 0.5 dBm |
| Connector | LC Simplex | Max Power Consumption | 1.0 W |
| DDM/DOM | Yes | Compliance | RoHS, CE, REACH Class 1 Laser IEC 60825 SFP+ MSA, IEEE 802.3ae SFF-8431, SFF-8432, SFF-8472 |
| Environment | Operating Temperature: -40 to 85 °C (-40 to 185 °F) Storage Temperature: -40 to 85 °C (-40 to 185 °F) Operating Humidity: 5% to 85%, Non-condensing Storage Humidity: 5% to 95%, Non-condensing |
Application | 10G Industrial Switches and Routers 10G Industrial Media Conveters 10G Industrial Ethernet Network Industrial and factory automation Rail and intelligent transportation systems (ITSs) Oil and gas Process Control and Process Industry Networking |
| Shipping Weight | 0.035 kg | Dimensions (L x W x H) | 56.7 x 13.7 x 8.5 mm (2.23 x 0.54 x 0.33 in) |
| What’s In The Box | 1x SFP+ Transceiver | Country Of Origin | China |
Compatible Platform
• Cisco industrial network switches
• Cisco industrial network routers
• Cisco industrial firewalls
• Cisco industrial security gateway
• Cisco industrial fiber media converter
• Cisco industrial network adapters
• Cisco industrial network interface card (NICs)
• Cisco industrial NAS
Download
Note: All trademarks, products, and company names mentioned are the property of their respective owners and are used for comparative purposes only. This product is NOT certified or endorsed by Cisco.
| Weight | 0.03 kg |
|---|
