Cisco SFP-10G-BX60D-I Compatible 10G BiDi SFP+ 1330nm-TX/1270nm-RX 60km Transceiver
US$ 49.00 (Excl. VAT)
10GBASE-BX60-D SFP+ Transceiver for use with Cisco 10G Switches and Routers.
Similar Product
SFP-10G-BXU-I SFP-10G-BXD-I SFP-10G-BX20U-I SFP-10G-BX20D-I SFP-10G-BX40U-I SFP-10G-BX40D-I SFP-10G-BX60U-I SFP-10G-BX60D-I SFP-10G-BX70U-I SFP-10G-BX70D-I SFP-10G-BX80U-I SFP-10G-BX80D-I

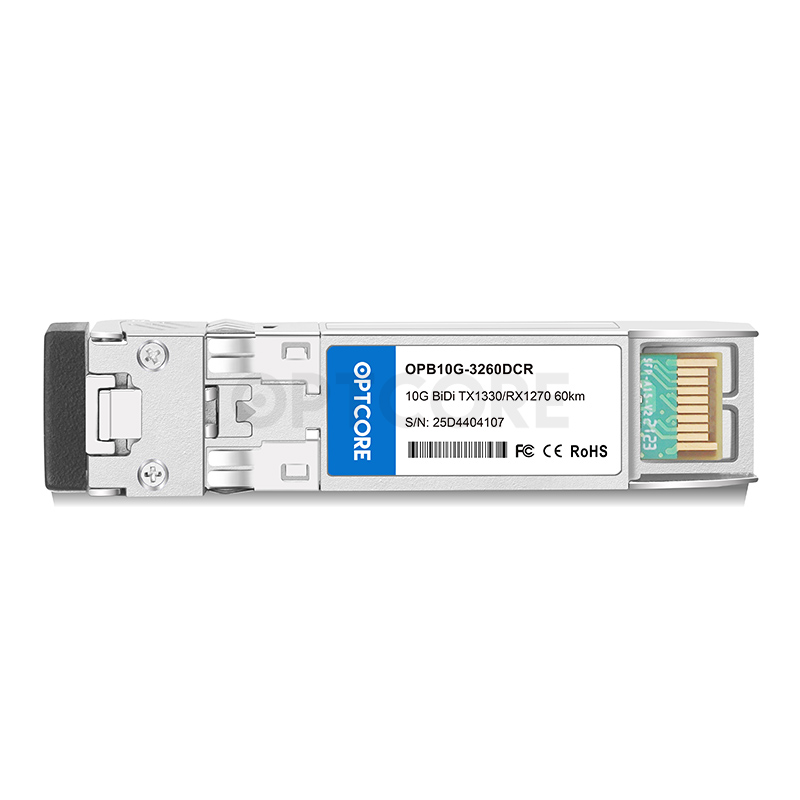

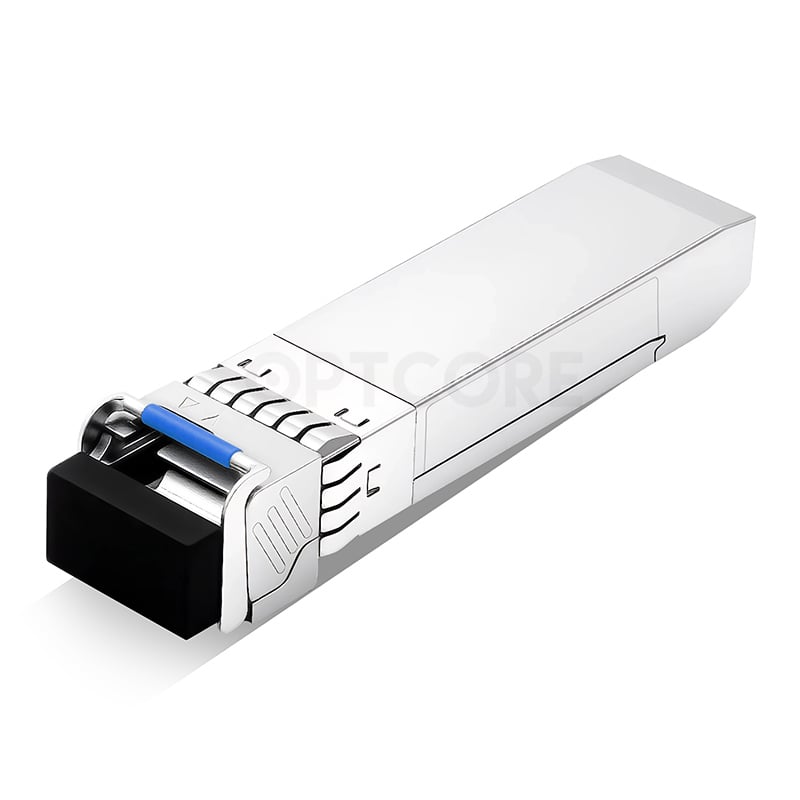

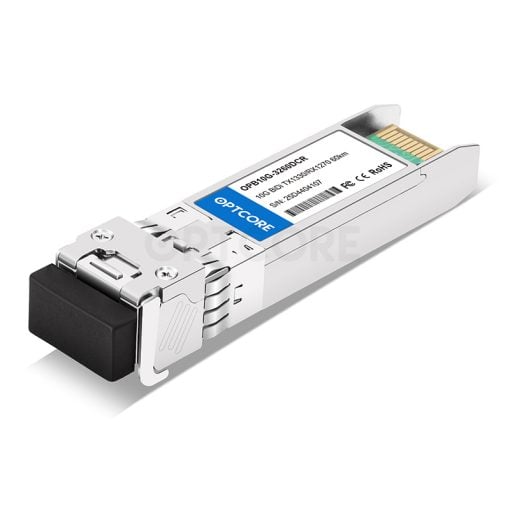

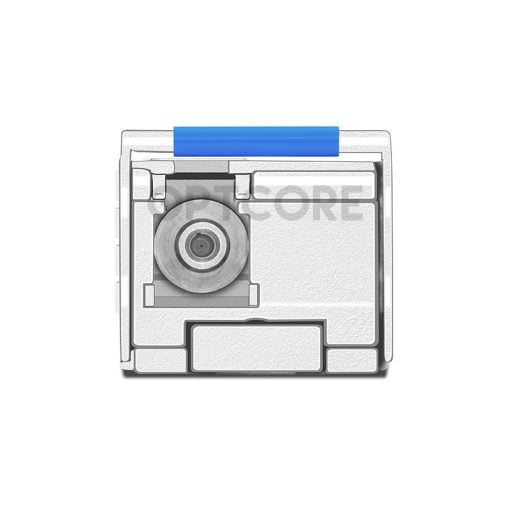

Cisco SFP-10G-BX60D-I Compatible 10GBASE-BX60-D SFP+ Transceiver Module (SMF, 1330nm-TX/1270nm-RX, 60km, LC, DOM)
This BiDi SFP+ transceiver module is suitable for use with Cisco network equipment and is equivalent to Cisco SFP-10G-BX60D-I. It is a hot-pluggable Small-Form-Factor Bi-Directional transceiver designed for use in 10-Gigabit Ethernet links up to 60km over a single-strand Single Mode fiber. The module features a highly reliable 1330nm DFB transmitter and 1270nm APD photo-detector into LC Simplex optical connector. This module is programmed to works with a wide range of Cisco equipment such as 10 Gigabit Ethernet (10 GbE) Switches, Routers, Network Interface Cards (NICs) and Media Converters, which makes it be an ideal replacement to high-cost Cisco SFP+ BiDi transceiver.
Features
• Functionally identical to Cisco SFP-10G-BX60D-I
• 10Gb/s serial optical interface compliant to 802.3ae
• Distance up to 60km on single mode fiber
• Built-in digital diagnostic functions
• Single 3.3V power supply
• Metal enclosure, for lower EMI
• ROHS compliant and lead-free
Specification
| OEM Part Number | SFP-10G-BX60D-I | Optcore Part Number | OPB10G-3260DCR-CSC |
| Form Factor | SFP+ BiDi | Data Rate | 10Gb/s |
| Wavelength | 1330nm-TX/1270nm-RX | Fiber Type | SMF |
| Max Distance | 60 km | Optical Components | DFB/APD |
| Transmitter Power | 0 ~ 5.0 dBm | Extinction ratio | > 3.5 dB |
| Receiver Sensitivity | < -20.0 dBm | Receiver Overload | > -7.0 dBm |
| Connector | LC Simplex | Digital Diagnostic Monitoring | Yes |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.03 kg |
| Application | 10GBASE-ER/10GBASE-EW Ethernet
10G Fibre Channel 10G Data Center Switches and Routers |
Compliance | IEC/EN 61000-4-2, IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS |
Compatibility
Download
Note: All trademarks, products and company names mentioned are the property of their respective owners and are used for comparative purposes only. This product is NOT certified or endorsed by Cisco.
| Weight | 0.03 kg |
|---|
