Generic SFP-10G-BX10-U Compatible 10G SFP+ BiDi 1270nm-TX/1330nm-RX 10km Transceiver

Generic SFP-10G-BX10-U Compatible 10GBASE-BX SFP+ BiDi Transceiver (SMF, 1270nm-TX/1330nm-RX, 10km, LC, DOM)

This Generic SFP-10G-BX10-U compatible SFP+ BiDi module supports 10GBASE-BX throughput up to 10km over a single strand of single-mode fiber (SMF). Unlike the regular SFP+, this BiDi transceiver integrates a DFB transmitter and PIN receiver into a simplex LC interface. By utilizing the WDM technology, it supports bidirectional communication by transmitting a 1270nm wavelength and receiving a 1330nm signal simultaneously on the same fiber. This design effectively doubles transmission capacity without requiring new fibers, thereby simplifying cabling installation. As a third-party supplier, OPTCORE provides 10GBASE-BX-U SFP+ BiDi at a very affordable price when compared to the original SFP-10G-BX10-U. Each transceiver has been coded and passes the test with the 10G SFP+ port of Generic network switches, routers, servers, and network interface cards (NICs). Please note that this SFP+ BiDi module must be used in pairs with another transceiver of complementary wavelengths.

Proven Performance

When performance and reliability are vital, use our 10G SFP+ BiDi module to build your network. OPTCORE transceivers are engineered, produced, and tested in-factory for reliable end-to-end quality.

Proven Compatibility

There’s an easy way to verify compatibility: test in real network devices. The OPTCORE 10G SFP+ BiDi module is tested for compatibility with multi-switch devices to ensure flawless functioning.

Enjoy Massive Saving

Compared to the original transceiver, the OPTCORE 10G SFP+ BiDi module can save you up to 80% on project and optical networking cabling. You won't find a better combination of quality and affordability.

Specifications

• 10G BiDi Connectivity

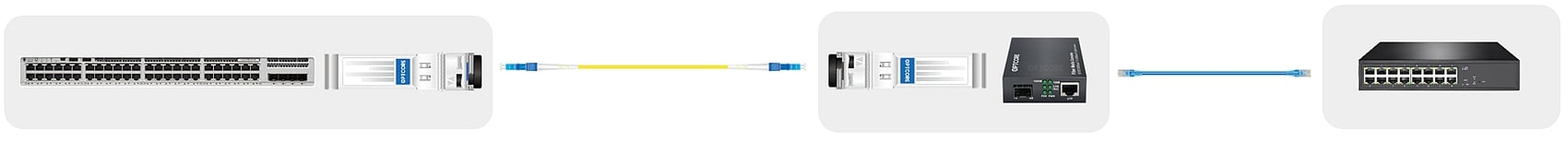

• 10G Connectivity with Media Converter
• 10G Connectivity with NIC

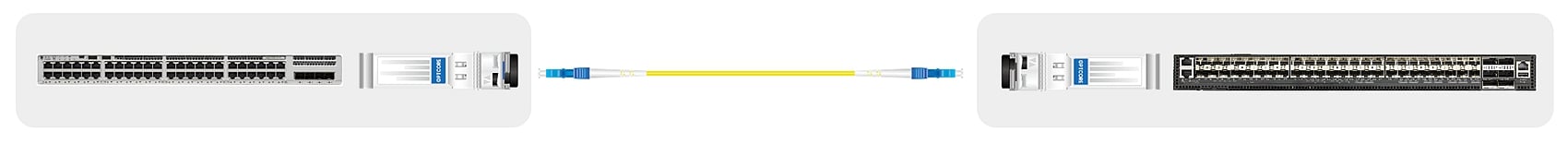

• Access to Core Switch

10G Ethernet Switch             SFP-10G-BX10-D                FOC-125                    LC-LC-SM-S30M                    SFP-10G-BX10-U       10G Ethernet Switch

10G Ethernet Switch           SFP-10G-BX10-D                LC-LC-SM-S30M            SFP-10G-BX10-U      10G SFP+ Converter      Cat6 Cable      10G Network Switch

10G Ethernet Switch            SFP-10G-BX10-D                  LC-LC-SM-S30M                 SFP-10G-BX10-U             10G SFP+ NIC Card                Server

10G Ethernet Switch                  SFP-10G-BX10-D                          LC-LC-SM-S30M                                SFP-10G-BX10-U                       40G Ethernet Switch

Double Network Capacity without New Fiber Deployment

The regular transceiver requires two fibers to accomplish communications, while the BiDi SFP+ can communicate over just one fiber strand. By switching to a BiDi transceiver, you can instantly double network throughput to 10km with the same fiber infrastructure and finally save 50% on fiber deployment costs.

Intelligent DOM/DDM for Smart Networks

With built-in Digital Optical Monitoring function, the 10G SFP+ BiDi module allows users to monitor the fiber link operating parameters in real-time. That ensures a reliable optical network and helps locate network problems quickly.

Optimal Performance and Quality for 10G Networks

Featuring a built-in Semtec/Macom chip and reliable BOSA with integrated DFB laser + PIN receiver, the BiDi SFP+ module delivers low power consumption (≤1.2W) and stable optical links for 10G Bidirectional networks like 10G Ethernet and Fibre Channel. You can rest assured regarding quality and warranty.

Compatibility

Resources

OPB10G-xx10DxR Datasheet

Note: All trademarks, products, and company names mentioned are the property of their respective owners and are used for comparative purposes only. This product is NOT certified or endorsed by Generic.
