Generic Compatible 155Mbps BiDi SFP 1490nm-TX/1550nm-RX 80km Transceiver

155Mbps 1490nm-TX/1550nm-RX 80km BiDi SFP Optical Transceiver Module for Fast Ethernet/SDH STM-1/SONET OC-3

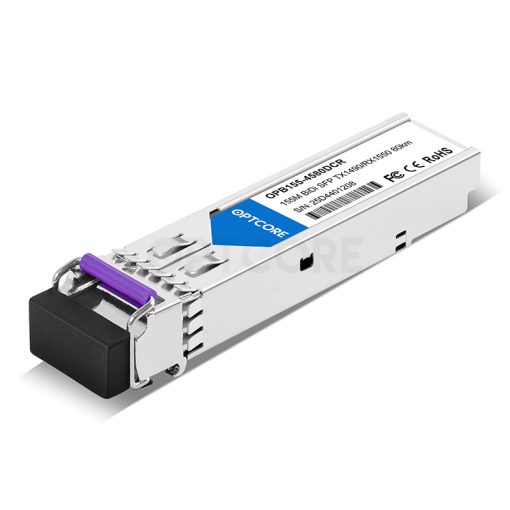

Optcore’s OPB155-4580xCR is a small form factor pluggable (SFP) bi-directional (BiDi) transceiver module for ultra long reach duplex optical data communications such as Fast Ethernet and 155Mbps SDH STM-1/SONET OC-3. This BiDi SFP module provides 80km transmission distance over a single strand of single-mode fiber. Compared with commonly used dual fiber SFP modules, this bi-directional (BiDi) transceiver allows end users to reduce the total cost on fiber cabling infrastructure by requiring half of the fiber cables, providing increased transmission capacity very convenient without installing new fibers.

The transmitter section uses a 1490nm DFB laser that is a class 1 laser compliant according to International Safety Standard IEC 60825. The receiver section uses a high-speed 1550nm InGaAs PIN photodiode (PD) integrated with a trans-impedance preamplifier (TIA). The module is fully compliant with the SFP Multi-Sourcing Agreement (MSA) and SFF-8472. For further information, please see SFP MSA and SFF-8472 standard.

An OPB155-4580xCR is always connected with an OPB155-5480xCR with a single fiber.

Features

• Hot-Pluggable SFP package
• Single LC or SC Connector
• Compliant with SFP MSA standard specification
• Support up to 155Mb/s data links
• Up to 80km on 9/125µm SMF
• 1490nm DFB laser transmitter and 1550nm InGaAs PIN receiver
• +3.3V single power supply
• Low EMI and excellent ESD protection
• ROHS compliant and Lead-Free
• Optional Digital Diagnostic Monitor Interface

Specification

Ordering Information

Download

Data Sheet / Specs

Note: Specifications and product availability are subject to change without notice. Optcore assumes no responsibility for inaccuracies contained herein.
