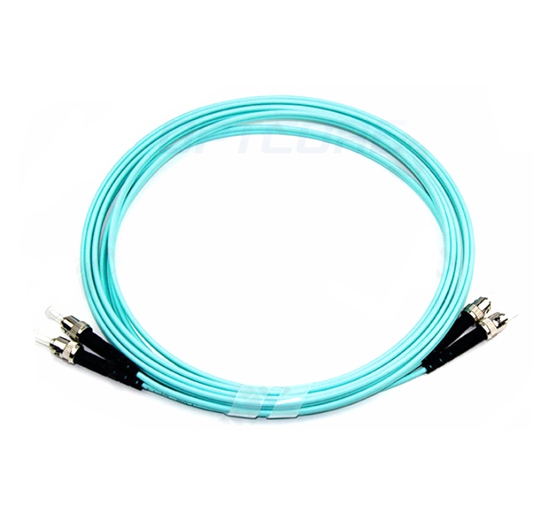

ST-ST 10G OM3 Multimode PVC (OFNR) Duplex Fiber Patch Cable
Price range: US$ 4.00 through US$ 14.70 (Excl. VAT)
Each ST to ST Multimode 50/125µm OM3 Duplex Fiber Patch (UPC Polish, 2.0mm, PVC, Aqua) has passed the Insertion Loss, Return Loss Test, and End-face Inspection in the factory to complies and exceeds industry standards.

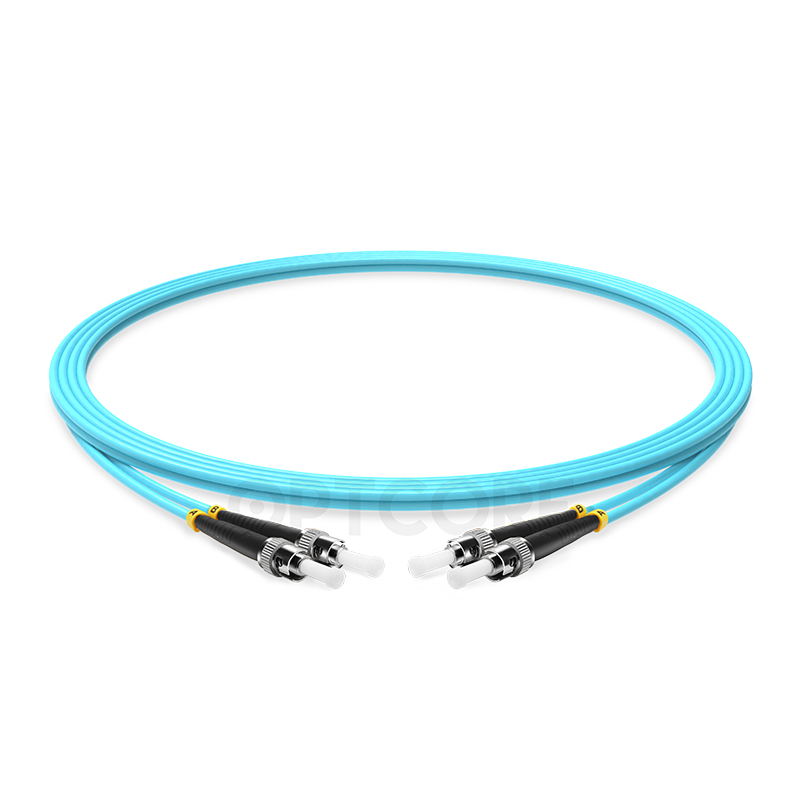

Customized OM3 Patch CableST to ST 10G OM3 Multimode Duplex Fiber Patch Cable (Laser Optimized 50/125µm, 2.0mm, UPC, OFNR, Aqua)
Optcore’s ST-ST 10G OM3 duplex multimode fiber patch cable is laser optimized multimode fiber (LOMMF) cable specially designed for use in 10 Gigabit Ethernet applications. This 50/125 OM3 multimode fiber optic cable features extremely high bandwidth, providing nearly three times the bandwidth over conventional 62.5/125µm multimode fiber cable. It offers improved performance, designed for 10GBase-SR, 10GBase-LRM connection in data centers. In the meantime, the OM3 fiber patch cable is completely compatible with the slower legacy system using LED or VCSEL optics, which allow the customers use existing fiber cabling and system designs and easily update the cabling networks in the future.
The OM3 fiber patch cable is manufactured with high-quality optical fiber and ceramic connectors, and is strictly tested for low insertion and return loss to ensure superior performance and quality. The cable jacket is OFNR (Optical Fiber, Non-conductive, Riser) rated by default.
Features
• Low insertion loss
• High back reflection loss
• Stable capability and high reliability
• Excellent mechanical capability
• 10Gb Ethernet distance up to 300 meters @850nm, OM3 Rated
• PVC jacket as default
• Ideal solution for high-speed data transmission
• 100% inspected for optical characteristics before shipment
Specification
| Fiber Type | 10G OM3 Multimode | Fiber Count | Duplex (2-fiber) |
| Connector Type | ST to ST | Polish | UPC to UPC |
| Cable Length | 1m,2m,3m … 50m or Customize | Cable Diameter | 2.0 mm |
| Tensile Strength | 50 N | Length Tolerance | +/- 1cm |
| Insertion Loss | ≤0.3dB | Return Loss | ≥20dB |
| Repeatability | ≤0.2dB | Interchangeability | ≤0.2dB |
| Jacket Material | PVC (OFNR riser-rated) | Jacket Color | Aqua |
| Environment | Operating: -20°C to 70°C Storage: -40°C to 85°C |
Compliance | RoHS compliant |
| Application | 10 Gigabit Ethernet, Data Storage, Legacy LANs |
Ordering Information
| Optcore Part Number | Description |
| ST-ST-OM3-D1M-20-PV | 1M ST to ST Duplex 10G OM3 Multimode Fiber Patch Cable (2.0mm, PVC) |
| ST-ST-OM3-D2M-20-PV | 2M ST to ST Duplex 10G OM3 Multimode Fiber Patch Cable (2.0mm, PVC) |
| ST-ST-OM3-D3M-20-PV | 3M ST to ST Duplex 10G OM3 Multimode Fiber Patch Cable (2.0mm, PVC) |
| ST-ST-OM3-D4M-20-PV | 4M ST to ST Duplex 10G OM3 Multimode Fiber Patch Cable (2.0mm, PVC) |
| ST-ST-OM3-D5M-20-PV | 5M ST to ST Duplex 10G OM3 Multimode Fiber Patch Cable (2.0mm, PVC) |
| ST-ST-OM3-D6M-20-PV | 6M ST to ST Duplex 10G OM3 Multimode Fiber Patch Cable (2.0mm, PVC) |
| ST-ST-OM3-D7M-20-PV | 7M ST to ST Duplex 10G OM3 Multimode Fiber Patch Cable (2.0mm, PVC) |
| ST-ST-OM3-D8M-20-PV | 8M ST to ST Duplex 10G OM3 Multimode Fiber Patch Cable (2.0mm, PVC) |
| ST-ST-OM3-D9M-20-PV | 9M ST to ST Duplex 10G OM3 Multimode Fiber Patch Cable (2.0mm, PVC) |
| ST-ST-OM3-D10M-20-PV | 10M ST to ST Duplex 10G OM3 Multimode Fiber Patch Cable (2.0mm, PVC) |
| ST-ST-OM3-D15M-20-PV | 15M ST to ST Duplex 10G OM3 Multimode Fiber Patch Cable (2.0mm, PVC) |
| ST-ST-OM3-D20M-20-PV | 20M ST to ST Duplex 10G OM3 Multimode Fiber Patch Cable (2.0mm, PVC) |
| ST-ST-OM3-D30M-20-PV | 30M ST to ST Duplex 10G OM3 Multimode Fiber Patch Cable (2.0mm, PVC) |
| ST-ST-OM3-D50M-20-PV | 50M ST to ST Duplex 10G OM3 Multimode Fiber Patch Cable (2.0mm, PVC) |
| ST-ST-OM3-DxM-20-PV | Custom Length xM ST to ST Duplex 10G OM3 Multimode Fiber Patch Cable (2.0mm, PVC) |
Download
| Weight | N/A |
|---|
