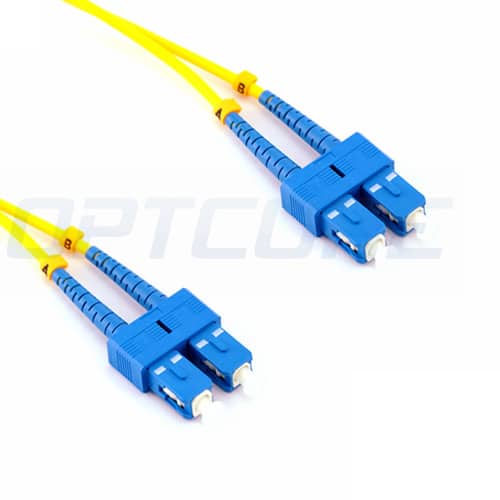

SC-SC 9/125μm OS2 Singlemode Duplex PVC Fiber Optic Patch Cable
Optcore offers good quality SC-SC OS2 singlemode fiber optic patch cable (Duplex, 9/125μm, PVC, φ2.0mm, UPC Polish).
SC-SC 9/125μm OS2 Singlemode Duplex PVC Fiber Optic Patch Cable
Fiber Optic Patch Cable also is known as fiber patch cord, optical cable or fiber optic jumper. As an important component commonly used in fiber-optic networks, high-quality fiber patch cable are essential for any high-performance fiber optic networks. Optcore offers an extensive line of SC to SC 9/125µm OS2 single-mode duplex fiber optic patch cables with many choices of different length, jacket material, polish, and cable diameter. Those SC to SC 9/125µm single-mode OS2 fiber patch cables support long transmission distances with low attenuation. They are manufactured using high-quality material and are strictly tested for insertion and return loss to ensure superior performance and quality, which provides an ideal fiber cabling solution with the extremely competitive price for users in data communication and telecommunication networks.
Features
• Low insertion loss
• High back reflection loss
• Stable capability and high reliability
• Excellent mechanical capability
• PVC jacket as default
• Ideal solution for high-speed data transmission
• 100% inspected for optical characteristics before shipment
Specification
| Fiber Type | 9/125µm Singlemode OS2 | Fiber Count | Duplex (2-fiber) |
| Connector Type | SC to SC | Polish | UPC to UPC |
| Cable Length | 1m,2m,3m … 50m or Customize | Cable Diameter | 2.0 mm |
| Tensile Strength | 70 N | Length Tolerance | +/- 1cm |
| Insertion Loss | ≤0.2dB | Return Loss | ≥50dB |
| Repeatability | ≤0.2dB | Interchangeability | ≤0.2dB |
| Jacket Material | PVC (OFNR riser-rated) | Jacket Color | Yellow |
| Environment | Operating: -20°C to 70°C Storage: -40°C to 85°C |
Compliance | Telcordia GR-326-CORE RoHS compliant |
| Application | Optical fiber communications system Optical fiber access networks Optical fiber CATV Optical fiber test equipment Optical fiber data communication |
Application | Premises Distribution Local Area Networks (LAN) Fiber-to-the-Home (FTTX) Device Terminations |
Ordering Information
| Optcore Part Number | Description |
| SC-SC-SM-D1M-20-PV | 1M SC-SC Duplex 9/125μm OS2 Singlemode 2.0mm PVC Fiber Optic Patch Cable |
| SC-SC-SM-D2M-20-PV | 2M SC-SC Duplex 9/125μm OS2 Singlemode 2.0mm PVC Fiber Optic Patch Cable |
| SC-SC-SM-D3M-20-PV | 3M SC-SC Duplex 9/125μm OS2 Singlemode 2.0mm PVC Fiber Optic Patch Cable |
| SC-SC-SM-D4M-20-PV | 4M SC-SC Duplex 9/125μm OS2 Singlemode 2.0mm PVC Fiber Optic Patch Cable |
| SC-SC-SM-D5M-20-PV | 5M SC-SC Duplex 9/125μm OS2 Singlemode 2.0mm PVC Fiber Optic Patch Cable |
| SC-SC-SM-D6M-20-PV | 6M SC-SC Duplex 9/125μm OS2 Singlemode 2.0mm PVC Fiber Optic Patch Cable |
| SC-SC-SM-D7M-20-PV | 7M SC-SC Duplex 9/125μm OS2 Singlemode 2.0mm PVC Fiber Optic Patch Cable |
| SC-SC-SM-D8M-20-PV | 8M SC-SC Duplex 9/125μm OS2 Singlemode 2.0mm PVC Fiber Optic Patch Cable |
| SC-SC-SM-D9M-20-PV | 9M SC-SC Duplex 9/125μm OS2 Singlemode 2.0mm PVC Fiber Optic Patch Cable |
| SC-SC-SM-D10M-20-PV | 10M SC-SC Duplex 9/125μm OS2 Singlemode 2.0mm PVC Fiber Optic Patch Cable |
| SC-SC-SM-D15M-20-PV | 15M SC-SC Duplex 9/125μm OS2 Singlemode 2.0mm PVC Fiber Optic Patch Cable |
| SC-SC-SM-D20M-20-PV | 20M SC-SC Duplex 9/125μm OS2 Singlemode 2.0mm PVC Fiber Optic Patch Cable |
| SC-SC-SM-D30M-20-PV | 30M SC-SC Duplex 9/125μm OS2 Singlemode 2.0mm PVC Fiber Optic Patch Cable |
| SC-SC-SM-D50M-20-PV | 50M SC-SC Duplex 9/125μm OS2 Singlemode 2.0mm PVC Fiber Optic Patch Cable |
| SC-SC-SM-DxM-20-PV | Custom Length xM SC-SC Duplex 9/125μm OS2 Singlemode 2.0mm PVC Fiber Optic Patch Cable |
