SC-FC 9/125 OS2 Singlemode LSZH Duplex Fiber Patch Cable

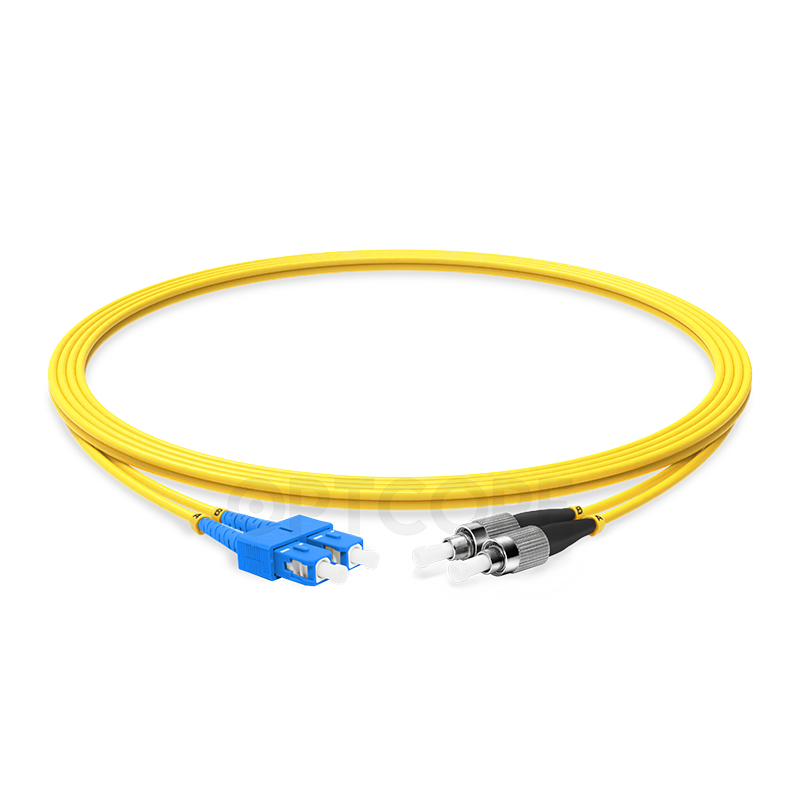

SC to FC 9/125μm OS2 Singlemode Duplex Fiber Patch Cable (SC-FC, 2.0mm, UPC Polish, LSZH, Yellow)

Fiber Optic Patch Cable also is known as a fiber patch cord, optical cable, or fiber optic jumper. As an important component commonly used in fiber-optic networks, high-quality fiber patch cables are essential for any high-performance fiber-optic network. Optcore offers an extensive line of SC to FC 9/125µm OS2 single-mode duplex fiber optic patch cables with many choices of different lengths, jacket materials, polish, and cable diameters. Those SC to FC 9/125µm Singlemode OS2 fiber optic cable supports long transmission distances with lower loss. They are manufactured using high-quality material and are strictly tested for insertion and return loss to ensure superior performance and quality. This provides an ideal fiber cabling solution with a highly competitive price for users in data communication and telecommunication networks. This SC-FC LSZH fiber patch cord can replace PVC (OFNR) fiber patch cable but provide better fire rating performance.

Features

• Low insertion loss
• High back reflection loss
• Stable capability and high reliability
• Excellent mechanical capability
• Low smoke zero halogen (LSZH) cable
• Ideal solution for high-speed data transmission
• 100% inspected for optical characteristics before shipment

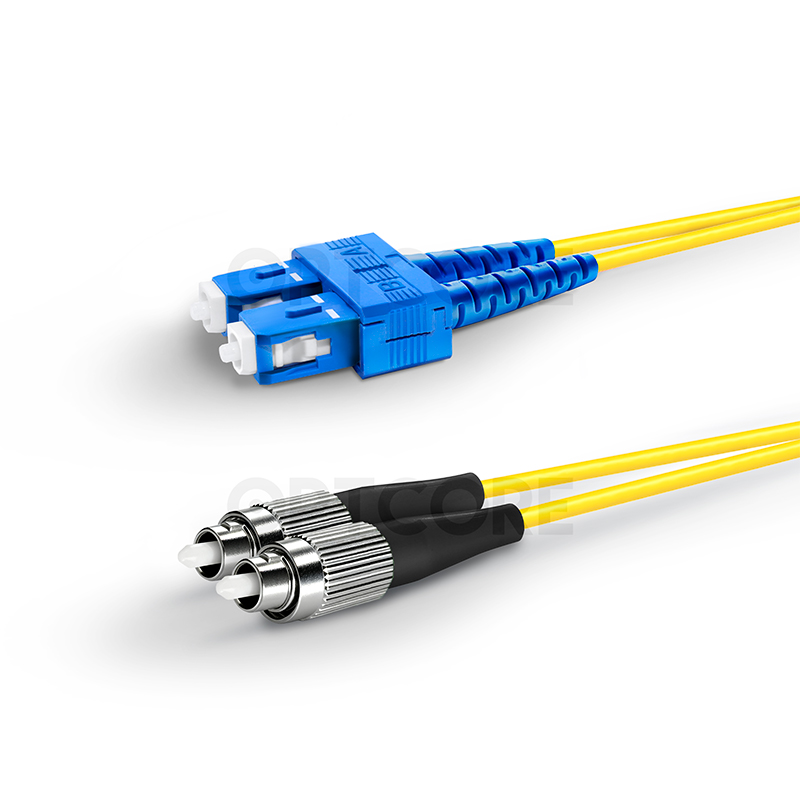

Superior Zirconia Ceramic Ferrule

Premium Grade A Zirconia Ceramic Ferrule provides low insertion loss, precise alignment, and 500 times mating durability to ensure high-speed network transmission stability.

LSZH Rated Outer Jacket

The LSZH (Low Smoke Zero Halogen) jacket emits very little smoke and achieves minimal damage. Great substitutes for PVC (OFNR) fiber patch cable.

0.20dB Max. IL & 50dB Min. RL

When performance and reliability are vital, use our quality fiber patch cable to build your network. Low insertion loss and high return loss provide a stable signal for your network at all times.

Specification

Fiber Type	9/125µm Singlemode OS2	Fiber Count	Duplex (2-fiber)
Connector Type	SC to FC	Polish	UPC to UPC
Cable Length	1m,2m,3m … 50m or Customize	Cable Diameter	2.0 mm
Tensile Strength	70 N	Length Tolerance	+/- 1cm
Insertion Loss	≤0.2dB	Return Loss	≥50dB
Repeatability	≤0.2dB	Interchangeability	≤0.2dB
Jacket Material	LSZH	Jacket Color	Yellow
Environment	Operating: -20°C to 70°C Storage: -40°C to 85°C	Compliance	Telcordia GR-326-CORE RoHS compliant
Application	Optical fiber communications system Optical fiber access networks Optical fiber CATV Optical fiber test equipment Optical fiber data communication Other Indoor networks & telecommunications	Country Of Origin	China

Ordering Information

Optcore Part Number	Description
SC-FC-SM-D1M-20-LS	1M SC to FC 9/125 OS2 Singlemode Duplex Fiber Patch Cable (2.0mm, LSZH)
SC-FC-SM-D2M-20-LS	2M SC to FC 9/125 OS2 Singlemode Duplex Fiber Patch Cable (2.0mm, LSZH)
SC-FC-SM-D3M-20-LS	3M SC to FC 9/125 OS2 Singlemode Duplex Fiber Patch Cable (2.0mm, LSZH)
SC-FC-SM-D4M-20-LS	4M SC to FC 9/125 OS2 Singlemode Duplex Fiber Patch Cable (2.0mm, LSZH)
SC-FC-SM-D5M-20-LS	5M SC to FC 9/125 OS2 Singlemode Duplex Fiber Patch Cable (2.0mm, LSZH)
SC-FC-SM-D7M-20-LS	7M SC to FC 9/125 OS2 Singlemode Duplex Fiber Patch Cable (2.0mm, LSZH)
SC-FC-SM-D10M-20-LS	10M SC to FC 9/125 OS2 Singlemode Duplex Fiber Patch Cable (2.0mm, LSZH)
SC-FC-SM-D15M-20-LS	15M SC to FC 9/125 OS2 Singlemode Duplex Fiber Patch Cable (2.0mm, LSZH)
SC-FC-SM-D20M-20-LS	20M SC to FC 9/125 OS2 Singlemode Duplex Fiber Patch Cable (2.0mm, LSZH)
SC-FC-SM-D25M-20-LS	25M SC to FC 9/125 OS2 Singlemode Duplex Fiber Patch Cable (2.0mm, LSZH)
SC-FC-SM-D30M-20-LS	30M SC to FC 9/125 OS2 Singlemode Duplex Fiber Patch Cable (2.0mm, LSZH)
SC-FC-SM-D40M-20-LS	40M SC to FC 9/125 OS2 Singlemode Duplex Fiber Patch Cable (2.0mm, LSZH)
SC-FC-SM-D50M-20-LS	50M SC to FC 9/125 OS2 Singlemode Duplex Fiber Patch Cable (2.0mm, LSZH)
SC-FC-SM-D75M-20-LS	75M SC to FC 9/125 OS2 Singlemode Duplex Fiber Patch Cable (2.0mm, LSZH)
SC-FC-SM-D100M-20-LS	100M SC to FC 9/125 OS2 Singlemode Duplex Fiber Patch Cable (2.0mm, LSZH)
SC-FC-SM-DxM-20-LS	Custom Length xM SC to FC 9/125 OS2 Singlemode Duplex Fiber Patch Cable (2.0mm, LSZH)
