H3 QSFP-100G-SR4-MM850 Compatible 100GBASE-SR4 QSFP28 850nm 100m Transceiver
US$ 32.90 (Excl. VAT)
Cheap 100GBASE-SR4 QSFP28 Transceiver compatible for H3 100G Ethernet switches, routers, servers, NICs, and other devices.
H3 QSFP-100G-SR4-MM850 Compatible 100GBASE-SR4 QSFP28 Transceiver (850nm, 100m, MPO/MTP, DOM)

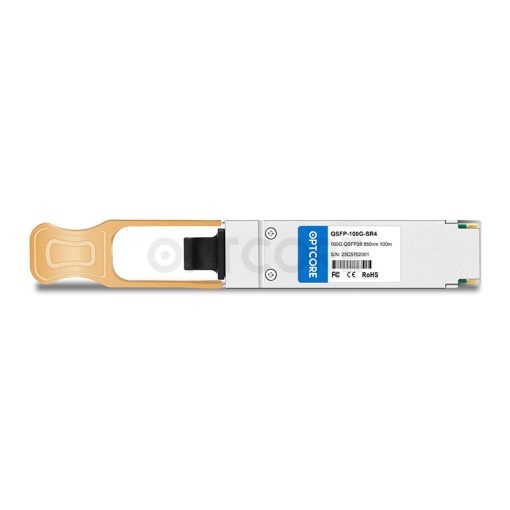

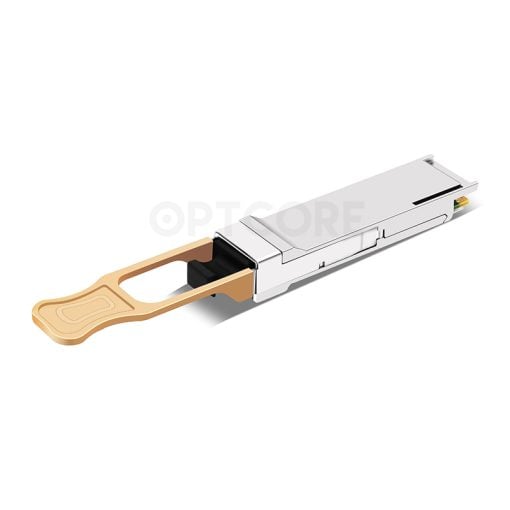

This H3 QSFP-100G-SR4-MM850 compatible QSFP28 transceiver is a low-cost 100G QSFP transceiver replacement manufactured by a third-party supplier – Optcore. This compatible 100G transceiver allows the IT manager to avoid overpaying the H3 original QSFP-100G-SR4-MM850 transceiver. It is suitable for 100GBASE Ethernet throughput up to 100m over OM4 multimode fiber (MMF) at a wavelength of 850nm using an MTP/MPO-12 connector. The compatible QSFP-100G-SR4-MM850 transceiver offers high-density and low-power 100 Gigabit Ethernet connectivity options for data centers, high-performance computing networks, enterprise core, distribution layers, and service provider applications.
Features
• Functionally identical to H3 QSFP-100G-SR4-MM850 100G QSFP28 SR4 transceiver

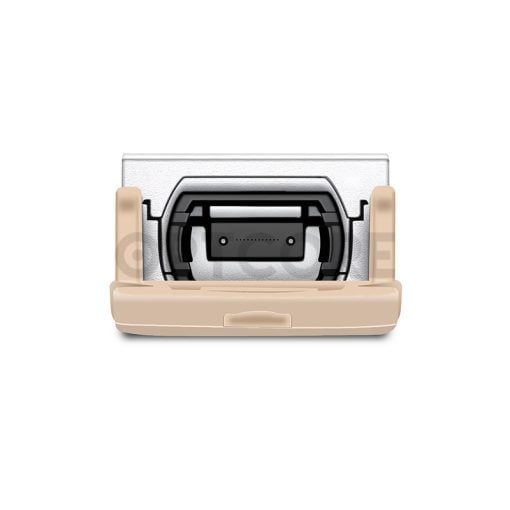

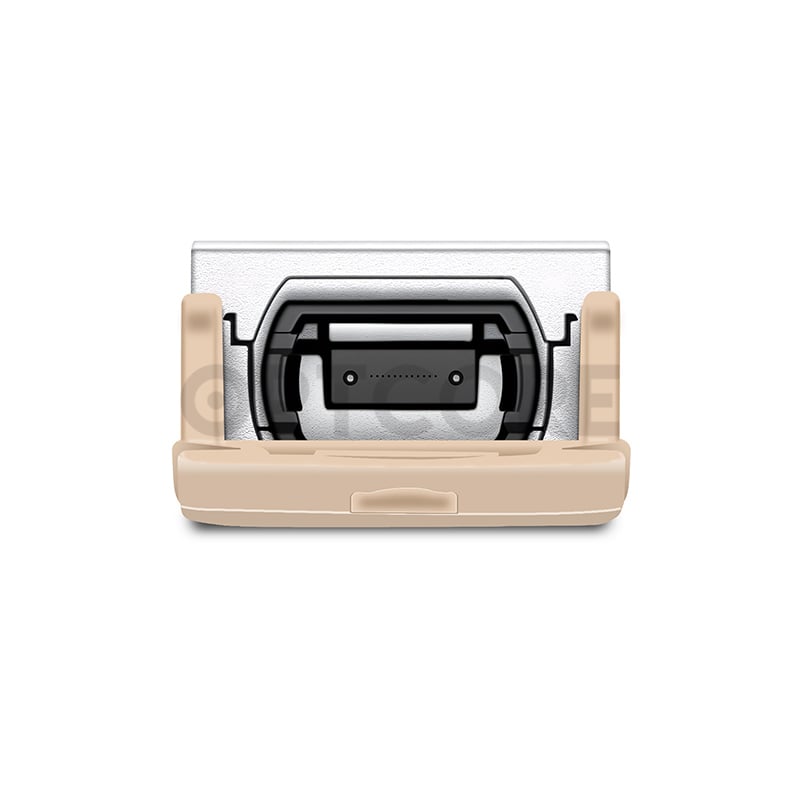

• MTP/MPO optical connector
• Single +3.3V power supply
• Hot-pluggable QSFP28 MSA form factor
• 4x28G Electrical Serial Interface (CEI-28G-VSR)
• Built-in digital diagnostic function (DOM)
• Compliant with 100GBASE-SR4
• I2C Communication Interface
Specification
| Compatible OEM Part Number | QSFP-100G-SR4-MM850 | Optcore Part Number | QSFP-100G-SR4-H3 |
| Form Factor | QSFP28 | Data Rate | 100 Gb/s |
| Wavelength | 850 nm | Fiber Type | MMF |
| Max Distance | 70m@OM3,100m@OM4 | Optical Components | VCSEL/PIN |
| Transmitter Power | -8.4 ~ 2.4 dBm | Extinction ratio | > 2 dB |
| Receiver Sensitivity | < -10.3 dBm | Receiver Overload | > 2.4 dBm |
| Connector | MPO/MTP | Digital Diagnostic Monitoring | Yes |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.05 kg |
| Application | 100G Ethernet transmission Infiniband FDR, EDR Proprietary High-Speed Interconnections High-performance computing clusters Fibre Channel |
Compliance | Compliant to IEEE 802.3bm Compliant with SFF-8436 RoHS Compliant |
Download
Note: All trademarks, products, and company names mentioned are the property of their respective owners and are used for comparative purposes only. This product is NOT certified or endorsed by H3 .
| Weight | 0.07 kg |
|---|
