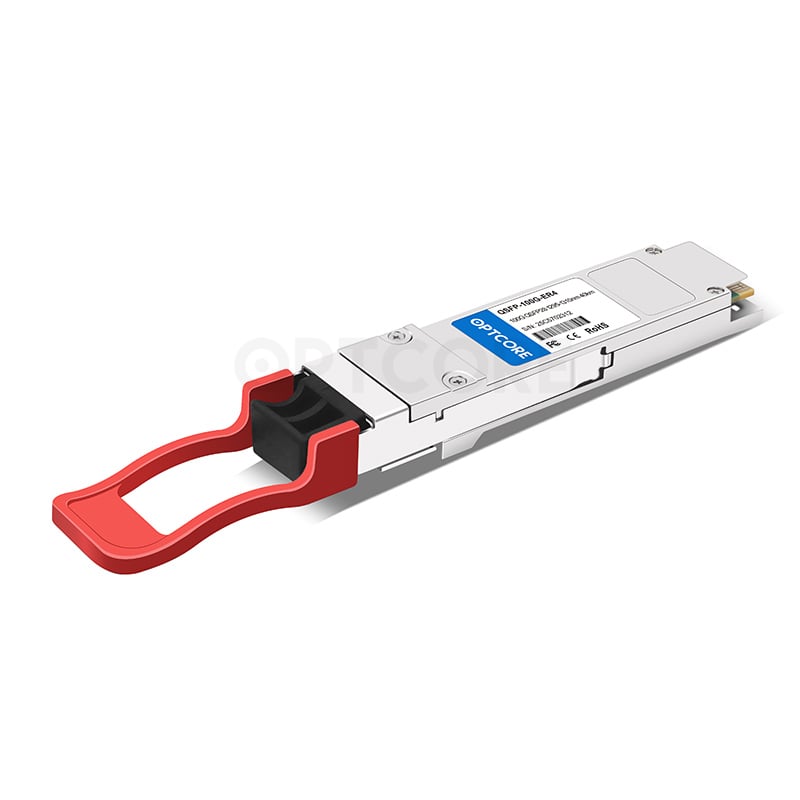

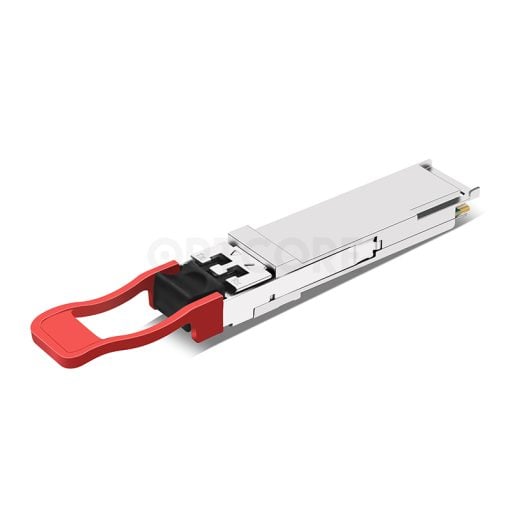

Generic Compatible 100GBASE-ER4 QSFP28 1310nm 40km Transceiver
US$ 799.00 (Excl. VAT)
Third-party compatible transceiver replacement for Generic 100G QSFP28 ER4 transceiver, works in Generic 100G Ethernet switches, routers, servers and NICs.
Generic QSFP-100G-ER4 Compatible 100GBASE-ER4 QSFP28 Transceiver (SMF, 1310nm, 40km, LC, DDM),
Buy a reliable 100GBASE-ER4 QSFP28 optical transceiver replacement compatible with your Generic QSFP-100G-ER4 at Optcore! Optcore provides a third-party low-cost 100GBASE-ER4 QSFP28 transceiver replacement that works with the Generic QSFP-100G-ER4 optics. Purchasing Optcore 100G QSFP28 ER4 transceiver is the perfect way to ensure your switch platform works properly while saving money. This QSFP28 transceiver support 100Gbps speed and 40km link distance over single mode fiber. It is suitable for fiber connectivity in data centers, high-performance computing networks, enterprise core, distribution layers, and service provider applications.
Features
• Third-party compatible replacement for Generic 100GBASE-ER4 QSFP28 Transceiver
• QSFP28 MSA compliant
• Compliant with SFF-8665 and SFF-8679
• Metal enclosure for lower EMI
• Built-in digital diagnostic functions for real-time monitor
• RoHS compliant and lead-free
Proven Performance
When performance and reliability are vital, use our high-quality optics to build your network. Optcore optics are engineered, produced, and tested in-factory for reliable end-to-end quality.
Proven Compatibility
There’s an easy way to verify compatibility: test in real network devices. Optcore optics are tested in multi switch devices for compatibility to ensure flawless functioning.
Enjoy Massive Saving
Compared to the original optics, the Optcore transceiver can save you up to 80% on project and networking cabling. You won’t find a better combination of quality and affordability.
Specification
| Compatible OEM Part# | QSFP-100G-ER4 | Manufacturer | Optcore |
| Manufacturer Part# | QSFP28-100G-ER4-GEN | Form Factor | QSFP28 |
| Data Rate | 103.125 Gbps (4x 25.78Gbps) | Wavelength | 1295.6 nm, 1300.1 nm, 1304.6 nm, 1309.1 nm |
| Media Type | SMF | Max Distance | 40 km (require FEC on host side) |
| Transmitter Type | 4 x LAN WDM EML | Receiver Type | APD |
| Transmitter Power | -2.9 ~ 4.5 dBm | Receiver Sensitivity | < -20.0 dBm |
| Extinction Ratio | > 4.0 dB | Receiver Overload | > -4.9 dBm |
| Connector | LC Duplex | Max Power Consumption | 4.5 W |
| DDM/DOM | Yes | Compliance | RoHS, CE, REACH QSFP28 MSA |
| Packaging Technology | BOX Packaging | Modulation | NRZ |
| Environment | Operating Temperature: 0 to 70 °C (32 to 158 °F) Storage Temperature: -40 to 85 °C (-40 to 185 °F) Operating Humidity: 5% to 85%, Non-condensing Storage Humidity: 5% to 95%, Non-condensing |
Application | 100GBASE-ER4 Ethernet Links Infiniband QDR and DDR interconnects Telecom networking |
| Shipping Weight | 0.09 kg | Dimensions (L x W x H) | 118.3 x 18.4 x 8.5 mm (4.66 x 0.72 x 0.33 in) |
| What’s In The Box | 1x QSFP28 Transceiver | Country Of Origin | China |
Compatibility
• Generic 100G network switches
• Generic 100G network routers
• Generic 100G firewalls
• Generic 100G security gateway
• Generic 100G fiber media converter
• Generic 100G network adapter
• Generic 100G network interface card (NICs)
• Generic 100G NAS
Ordering Information
| Manufacturer Part Number | Description |
| QSFP28-100G-ER4-GEN | Optcore 100GBASE-ER4 QSFP28 Transceiver, SMF, 1310nm, 40km, LC, DDM, Generic QSFP-100G-ER4 Compatible |
Download
Note: All trademarks, products, and company names mentioned are the property of their respective owners and are used for comparative purposes only. This product is NOT certified or endorsed by Generic.
| Weight | 0.07 kg |
|---|
